LG LS-S1260HL User Manual

Wiring Diagram
ƒ¡11ƒ¡
F
CH
BL
R S
C
COMP
FAN
MOTOR
BL
CAPACITOR
RD
TO INDOOR UNIT

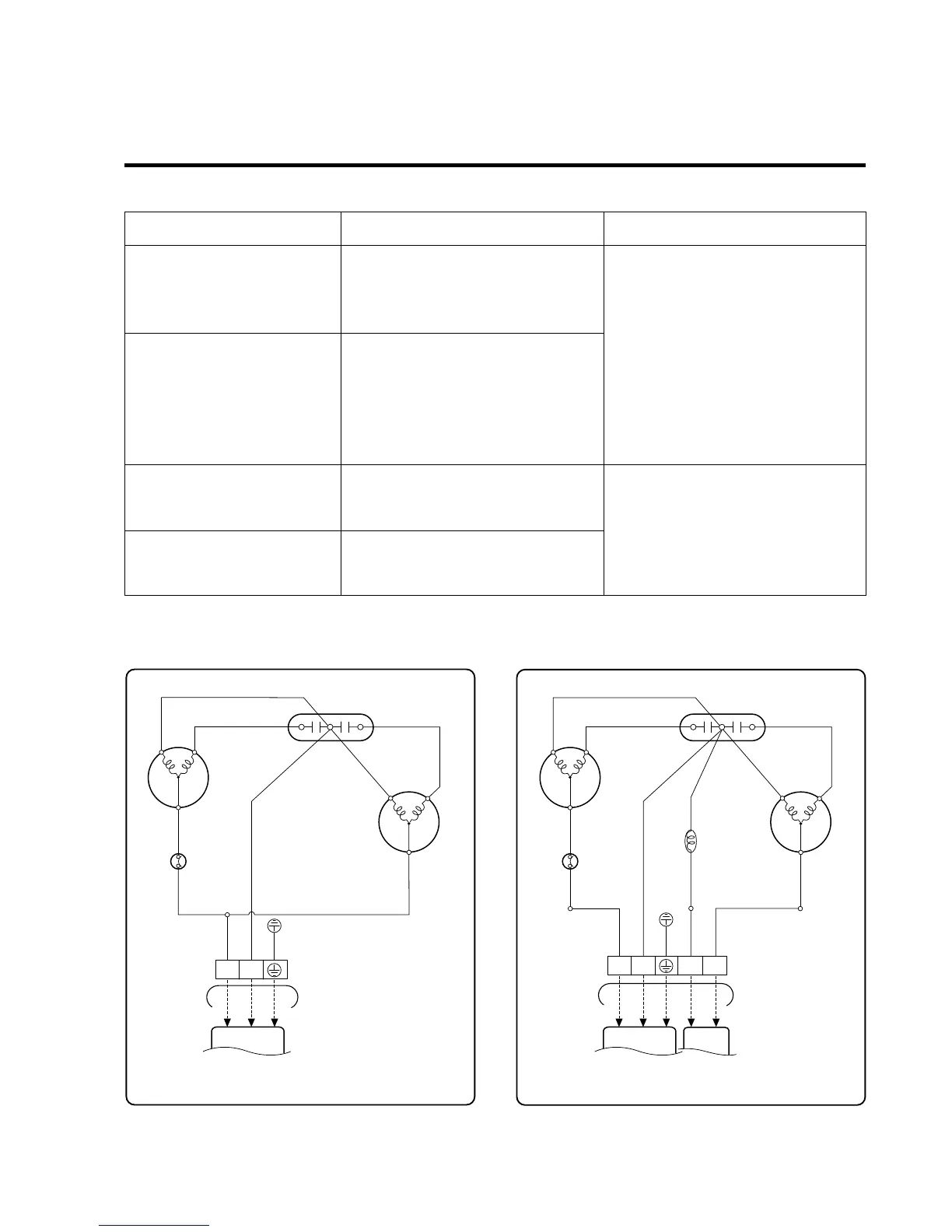

OUTDOOR WIRING DIAGRAM
RD
BR
OLP
BR
YL
PILLAR
TERMINAL
BL
3854AR2262F
1(L) 2(N)
1
GN/YL
BL
BR
BLACK
GN/YL
BL
BR
F
CH
BL
R S
C
COMP
FAN
MOTOR
BL
CAPACITOR
RD
TO INDOOR UNIT
OUTDOOR WIRING DIAGRAM
RD
BR
OLP
YL
PILLAR
TERMINAL
BL
3854AR2262E
1(L) 2(N)
GN/YL
1
GN/YL
BL
BR
3 4
BK
BK
2
RD
BL
BR
REVERSING
VALVE
RD
BK
3
BR
BLACK GRAY
MODEL INDOOR UNIT OUTDOOR UNIT
LS-P0760CL
LS-P0820CL
LS-P0960CL
LS-S0960CL
LS-S1120CL
LS-S1260CL
LS-S1420CL
LS-S1421CL
LS-P0760HL
LS-P0960HL
LS-S0960HL
LS-S1260HL
¤Ø
¤Œ
¤º
¤
¤
¤Ł
¤ ¤Ł
