LG LS090CP(AS-C0914DH0) - Dimensions; Symbols and Indoor Unit Dimensions

- 9 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

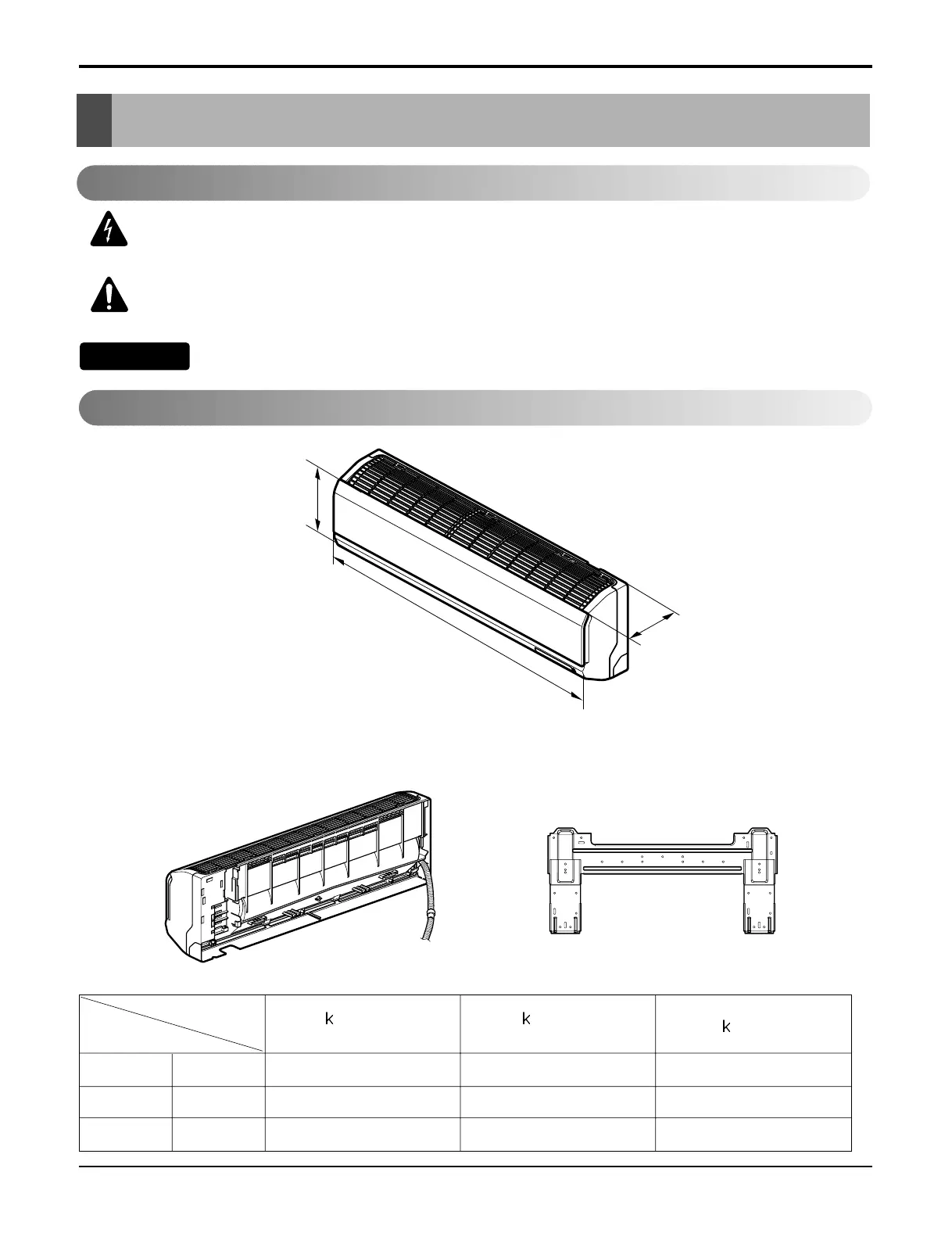

Dimensions
Dimensions
D
H
W
Installation plate
W mm(inch) 840(33.1) 894(35.2) 894(35.2)
H mm(inch) 270(10.6) 295(11.6) 295(11.6)
D mm(inch) 153(6.0) 165(6.5) 165(6.5)
Model
Dimension
9 Btu Series
(C/O)
9 Btu Series
(H/P)
12
Btu Series
Indoor Unit
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE
Symbols Used in this Manual
