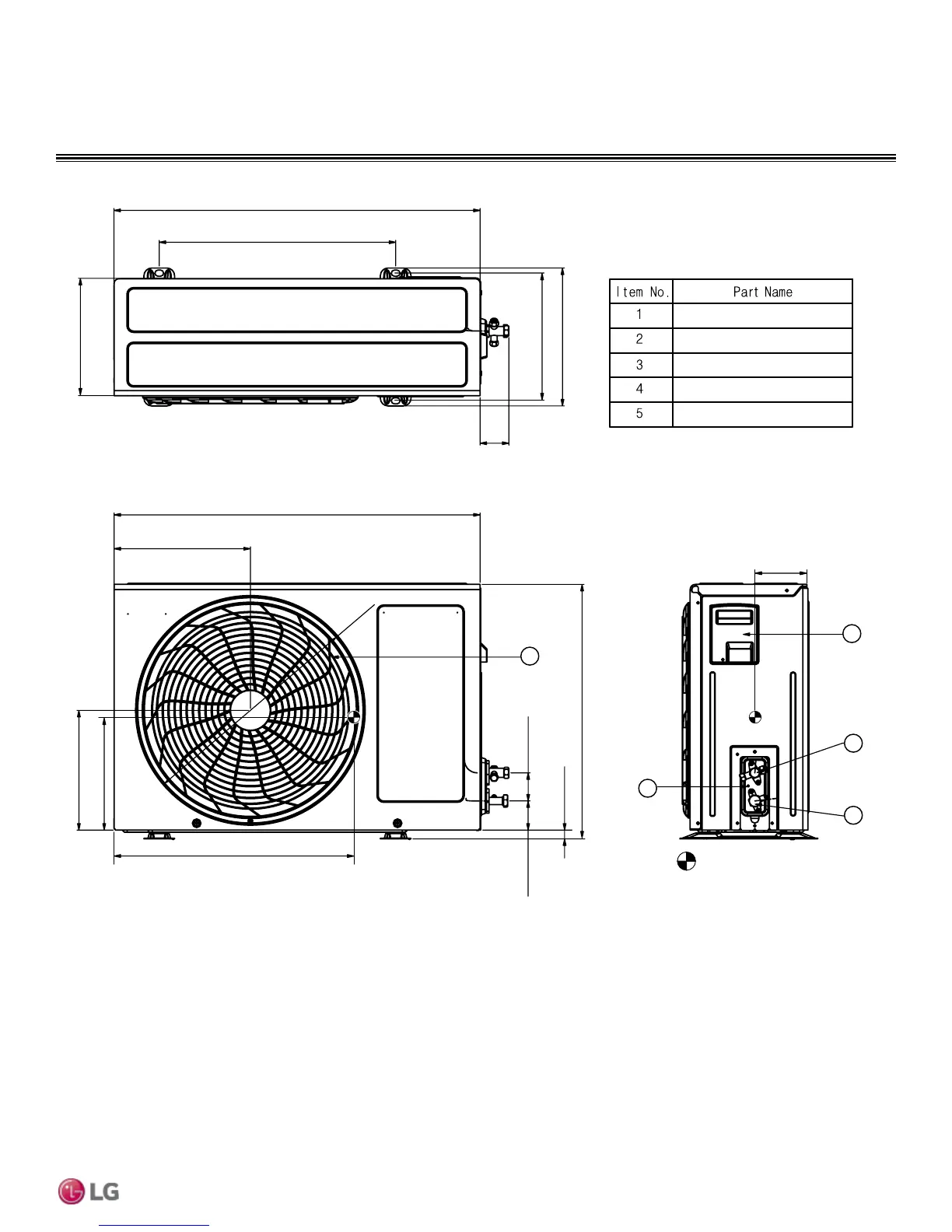

OUTDOOR UNIT DIMENSIONS
LSU090HEV1, LSU120HEV1
5
4
2
3
18-1/4
28-1/4
28-1/4
Ø17-3/8
2-1/4
4-5/8
10-9/16
18-3/4
9-5/16
8-5/8
19-1/2
2-3/16
2-1/4
1/2
10-1/16
9-1/16
10-11/16
1
Center of gravity
Unit: Inch
Discharge Air Grille
Gas Pipe Connection Port
Liquid Pipe Connection Port
Control Box
Ground Terminal
