ELECTRICAL SYSTEM INSTALLATION

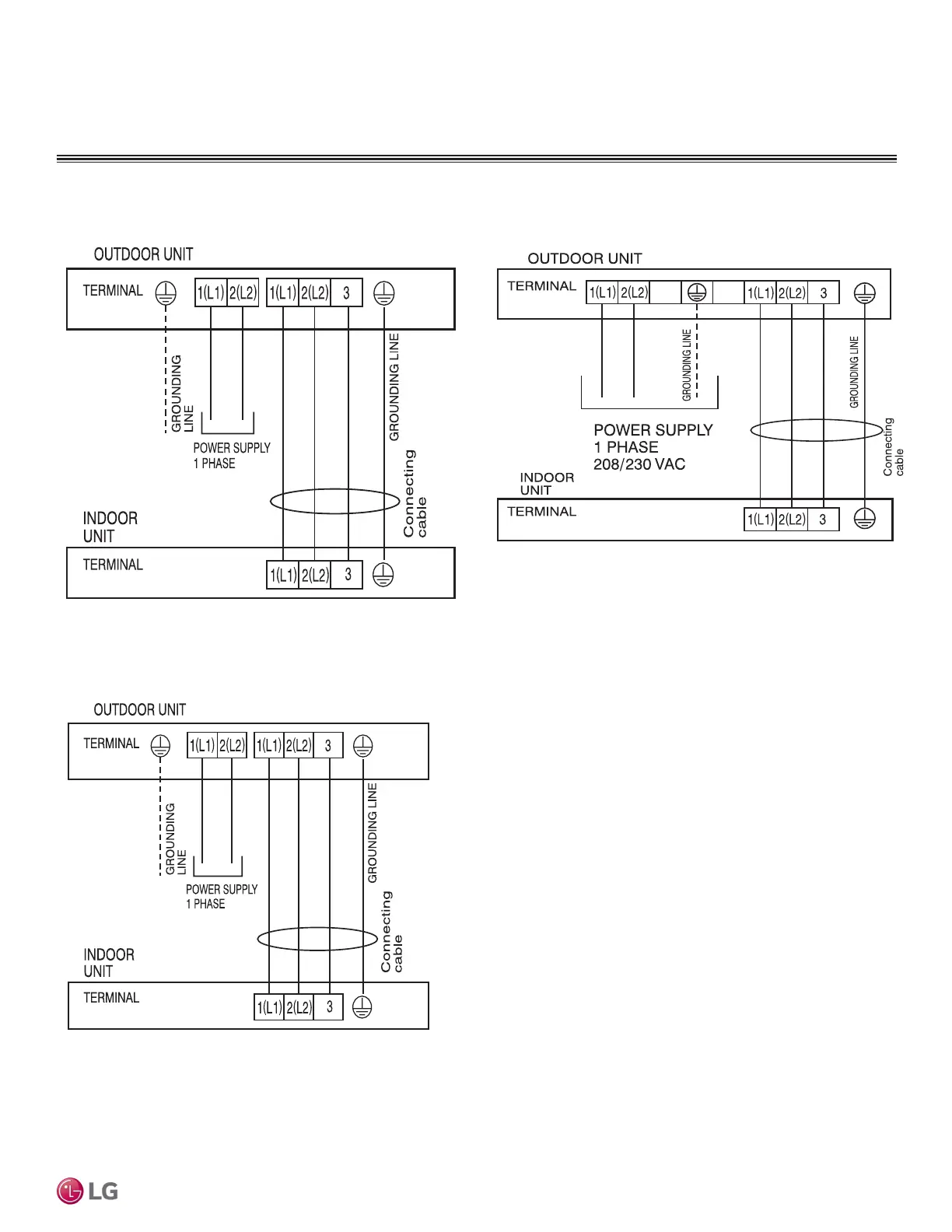

Figure 80: Typical LS180HEV2, LS240HEV2, LS180HFV3, LS240HFV3
Power / Communication System Diagram For Wiring Lengths Up to 130
Feet.
Figure 79: Typical LS090HEV2, LS120HEV2, LS090HFV3, LS120HFV3
Power / Communication System Diagram For Wiring Lengths Up to 130
Feet.
Figure 81: Typical LS090-120HXV2 Power / Communication System
Diagram For Wiring Lengths Up to 130 Feet.
208/230 VAC
115 VAC
Connections and Specications
