16 | PRODUCT DATA
Single Zone Mega, Standard E󰀩ciency, and Mega 115V Wall Mounted Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
LSU180HFV3, LSU240HFV3, LSU180HEV2, LSU240HEV2

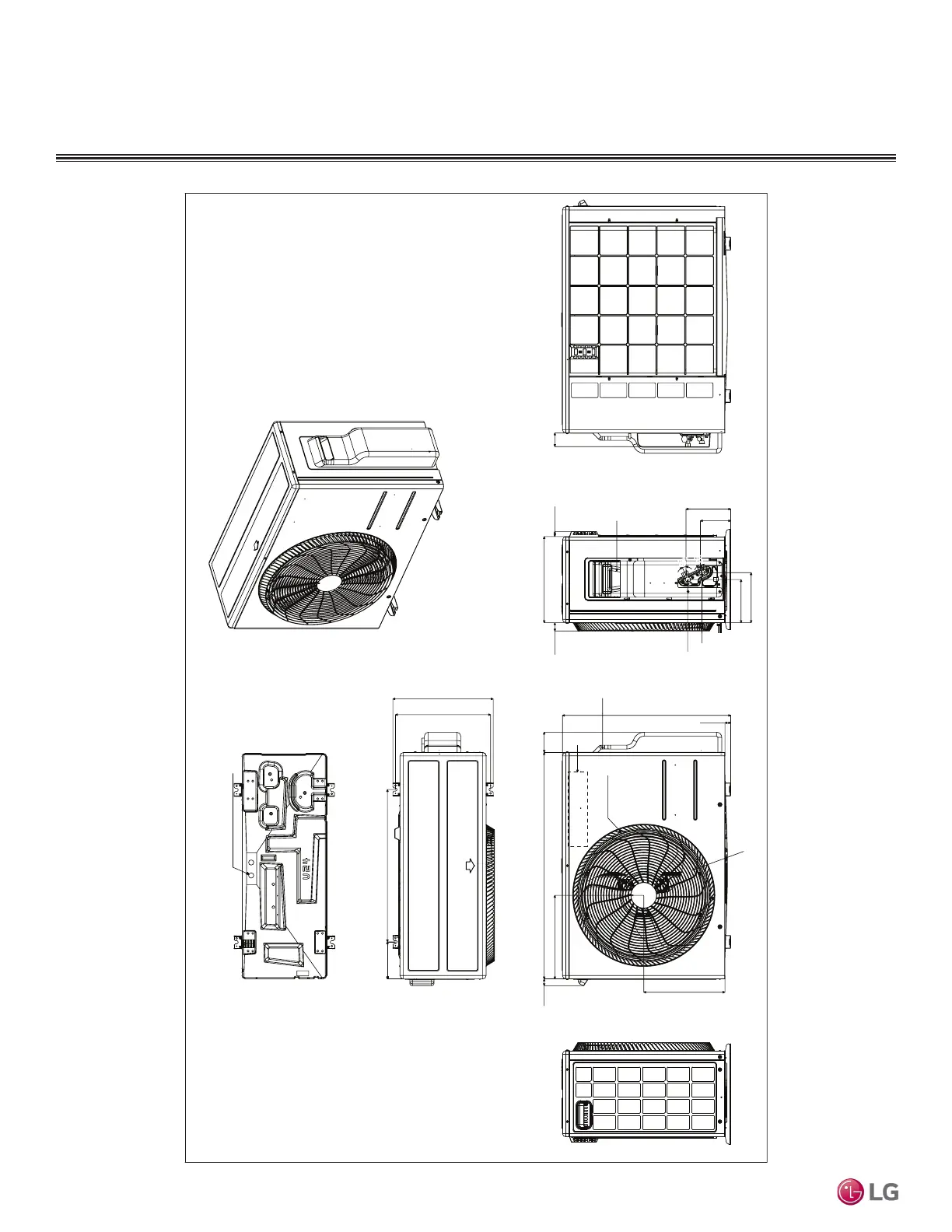

OUTDOOR UNIT DIMENSIONS
Unit: Inch (mm)
5-5/8 (143) 23-1/16 (586)
14-13/32 (366)
15-3/16 (386)
1-1/32 (26)
12-5/16 (313)
12-11/16 (322)
34-1/4 (870)
20-9/32 (515)
3-1/16 (78)
1-1/4 (32)
13 (330)
6-17/32 (166)
4-19/32 (117)
6-25/32 (172)
7-9/16 (192)
3/4 (19)
2-1/16 (52)
25-19/32 (650)
7/8 (22)
25°25°
25°25°
Liquid Pipe Connection (Flare)
Vapor Pipe Connection (Flare)
Service Valve Cover
Power and Communication Cable Access Hole
Control Box
Air Outlet
Drain Hole 2-
Ø13/16 (20)
