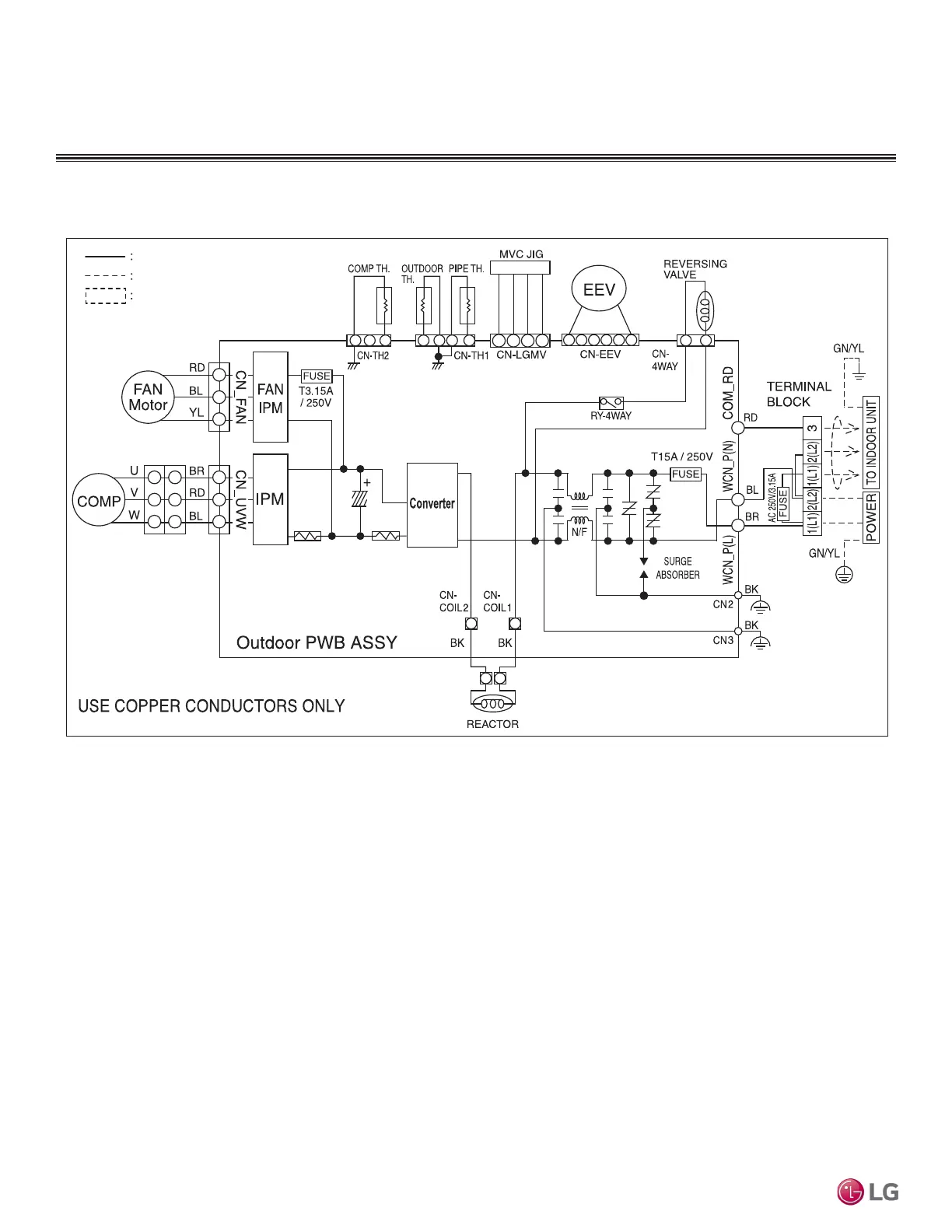

OUTDOOR UNIT WIRING DIAGRAM
Wiring Diagram for LSU090 ~ 120HEV2 and LSU090 ~ 120HFV3 models
Option
Field Wiring
Factory Wiring
MEZ64835136
Mega, Standard Eciency Models
To Next Page
