LG LSN HSV4 Series Installation & Maintenance

14
Multi F Standard Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MA
X
MUL
TI
F
MUL
TI
F

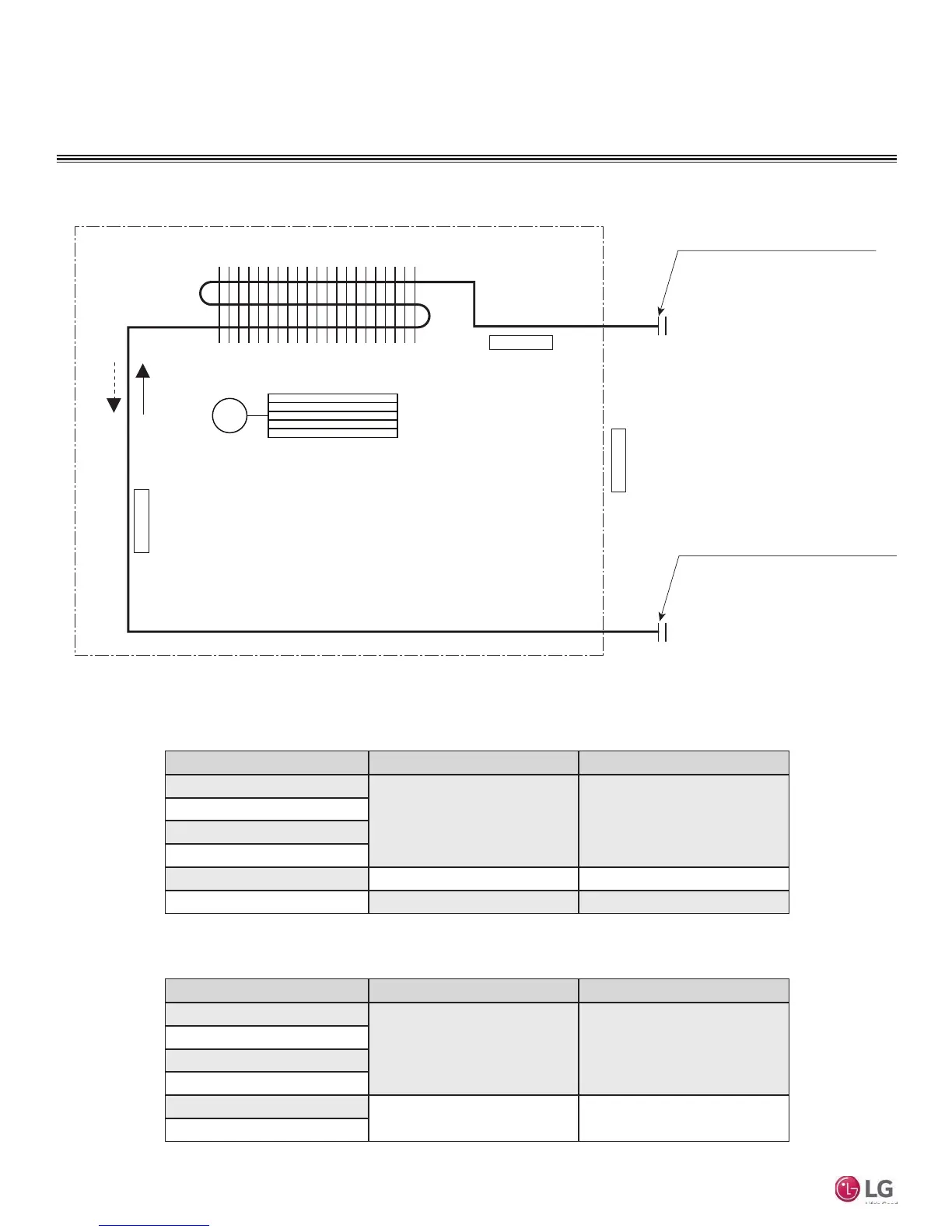

GENERAL DATA
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Cooling
Heating
Thermistor for
Evaporator Inlet Temperature
Thermistor for
Indoor Air Temperature
Thermistor for Evaporator
Outlet Temperature
Heat Exchanger
Cross Flow Fan
M
Model No. Vapor (inch) Liquid (inch)
LMN078HVT
Ø3/8 Ø1/4
LSN090HSV4
LSN120HSV4
LMN158HVT
LSN180HSV4 Ø5/8 Ø3/8
LMN248HVT Ø1/2 Ø1/4
Table 5: Multi F Multi Zone Standard Wall-Mounted Indoor Unit Refrigerant Pipe Connection Port Diameters
Refrigerant Piping
Model No. Vapor (inch, OD) Liquid (inch, OD)
LMN078HVT
Ø3/8 Ø1/4
LSN090HSV4
LSN120HSV4
LMN158HVT
LSN180HSV4
Ø1/2 Ø1/4
LMN248HVT
Table 6: Multi F Multi Zone Standard Wall-Mounted Indoor Unit Refrigerant Pipe Sizes
