ELECTRICAL WIRING
LG SIMS - Self Diagnosis Functions

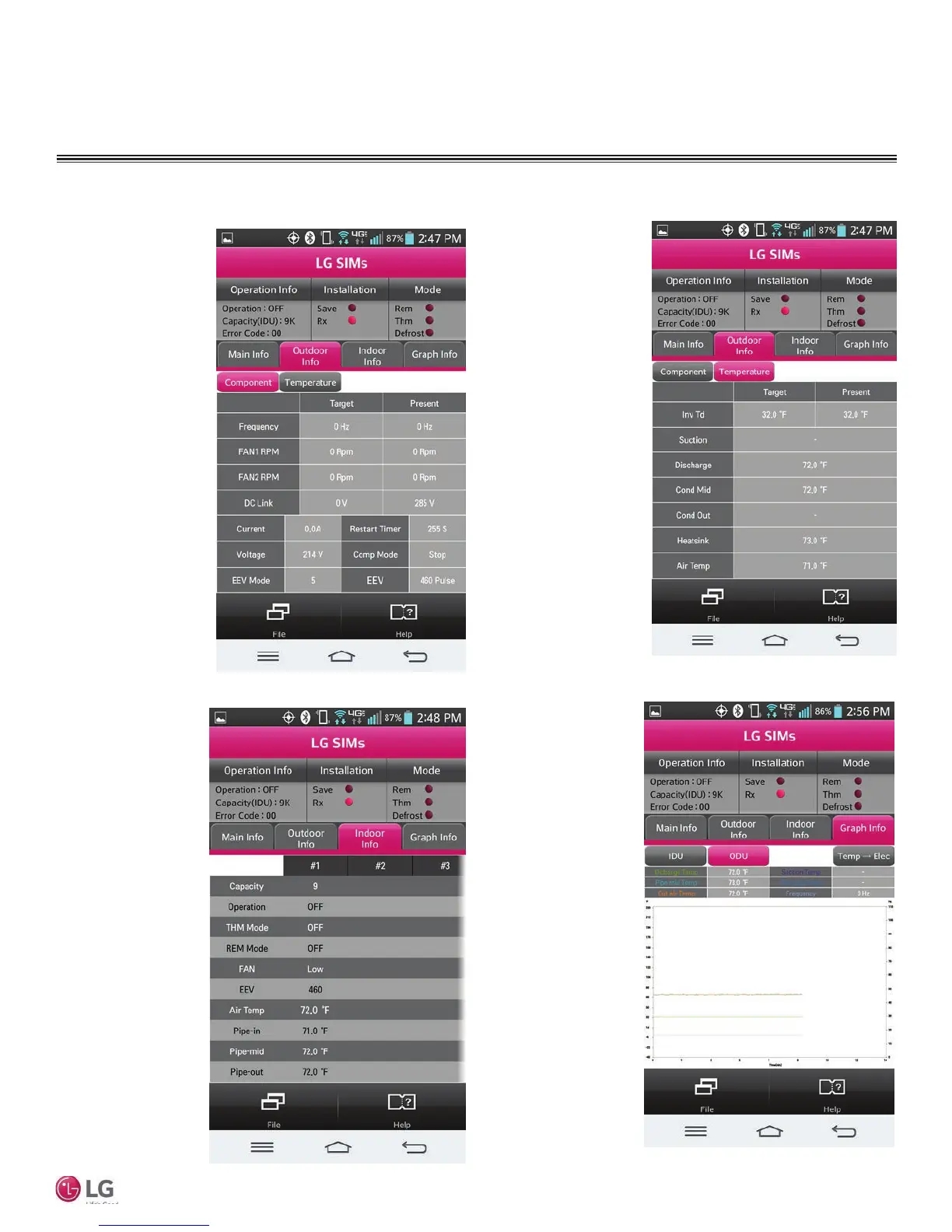

SIMs App Screens
Outdoor Info/
Component Screen
Displays the following
information:
Frequency
FAN1 RPM
FAN2 RPM
DC Link
Current
Voltage
EEV Mode
Restart Timer
Comp Mode
EEV
Indoor Info Tab
Displays the following
information:
Frequency
Operation
THM Mode
REM Mode
FAN
EEV
Air Temp
Pipe-in
Pipe-mid
Pipe-out
Graph Info Tab
This tab has three sub
sections:
IDU - Indoor Unit
Temperature graph.
Displays IDU
information in graph
format. Information
displayed is for the
IDU # selected on
the Main screen.
ODU - Outdoor Unit
Temperature and
Frequency graph.
Displays ODU
information in graph
format.
ODU Electric
- Outdoor Unit
Electric data graph
is displayed.
Outdoor Info/
Temperature Screen
Displays the following
information:
Inv TD
Suction
Discharge
Cond Mid
Cond Out
Heatsink
Air Temp
