Part 5. Trouble Shooting
- 67 -
Copyright ©2017 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Check Point
1. Check the Input Voltage (L1~L2 ‘ 230V±10%)
2. Check Input Voltage Sensor output voltage (2.5Vdc±10%)
25
Input voltage
• Abnormal Input voltage
(140Vac , 300Vac)
• Check the power source.
• Check the components.
Display
code
Title Cause of error Check point & Normal condition
Is Inverter PCB Normal?
No
Replace inverter PCB assembly
Is input voltage normal ?
No
Check L1~L2 Voltage is 230V±15%
Yes
Recheck power and
installation condition
Yes

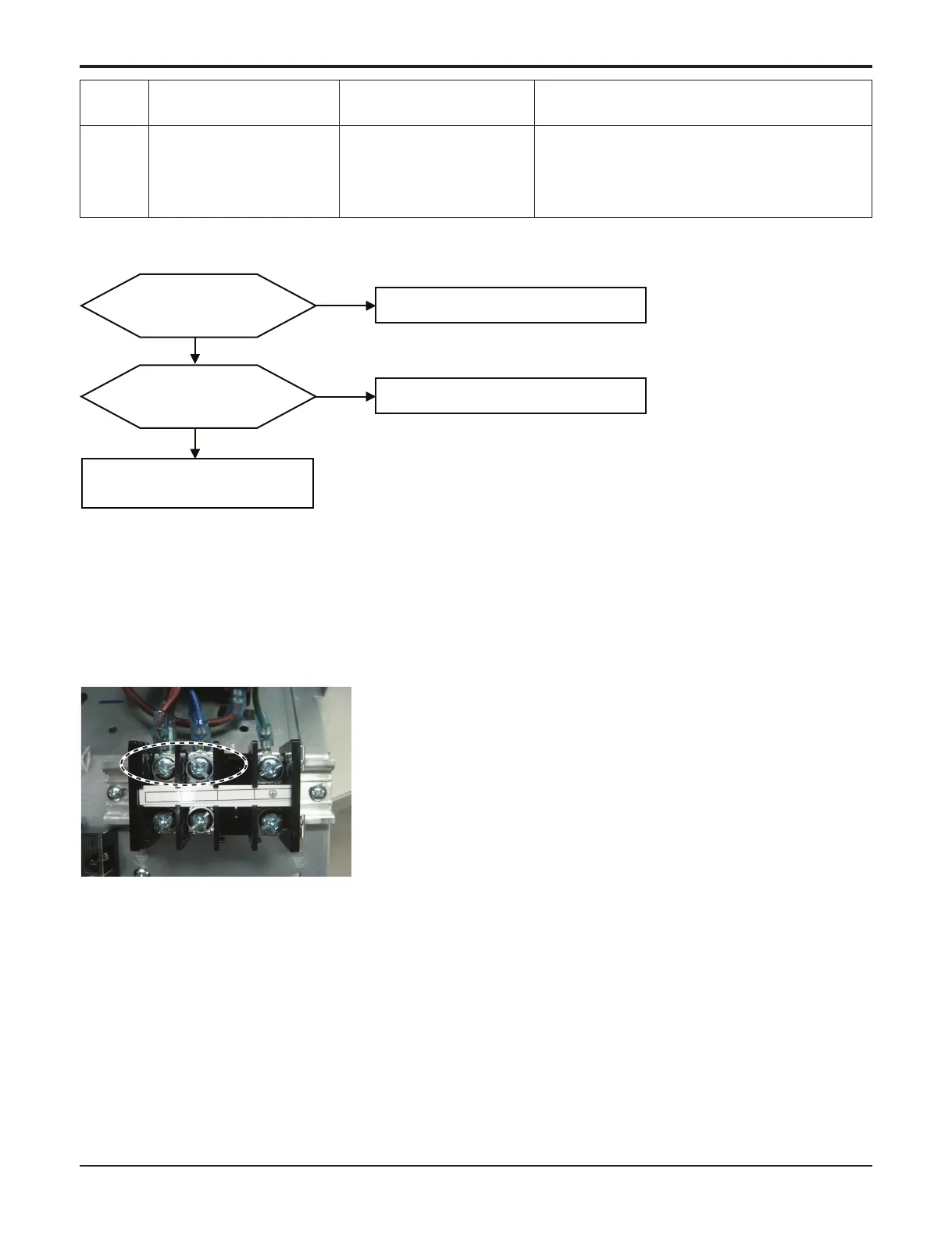

< Input Power Source Check Point >
L1
L2
n Error Diagnosis and Countermeasure Flow Chart
