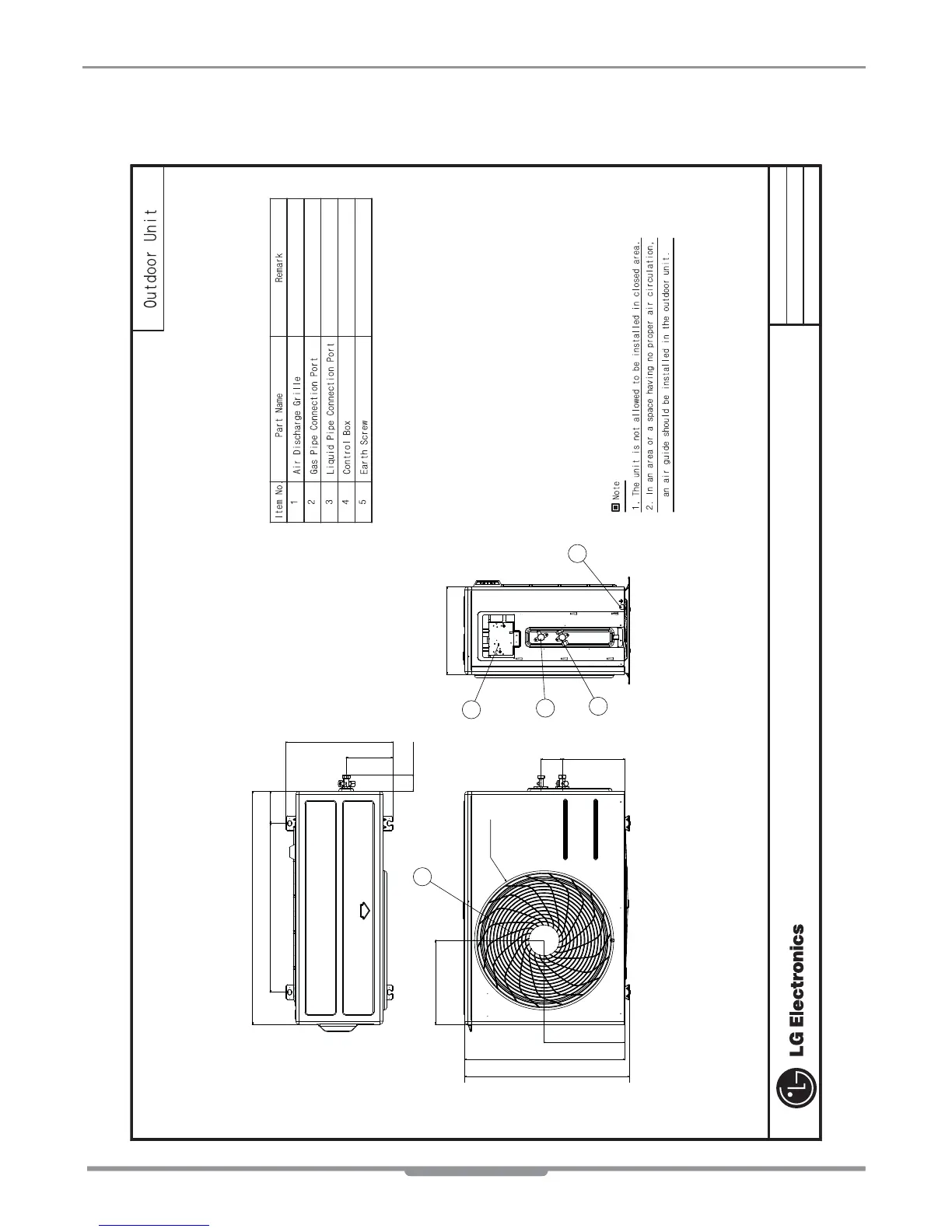

Dimensional drawings 6RMI0-02A
20
Inverter Single
Inverter Single
4.2 Outdoor Units
CHASSIS CODE : UL2
770(30.3) 558(22.0)
106(4.2)
353(13.9)
154(6.1)
54(2.1)
277(10.9)
1
530(20.9)
545(21.5)
267(10.5)
70(2.8) 207(8.1)
4
3
2
5
288(11.3)
Ø464(18.3)
[Unit: mm (inch)]
