6RMI0-02A

32

Inverter Single

Refrigerant cycle diagram

Inverter Single

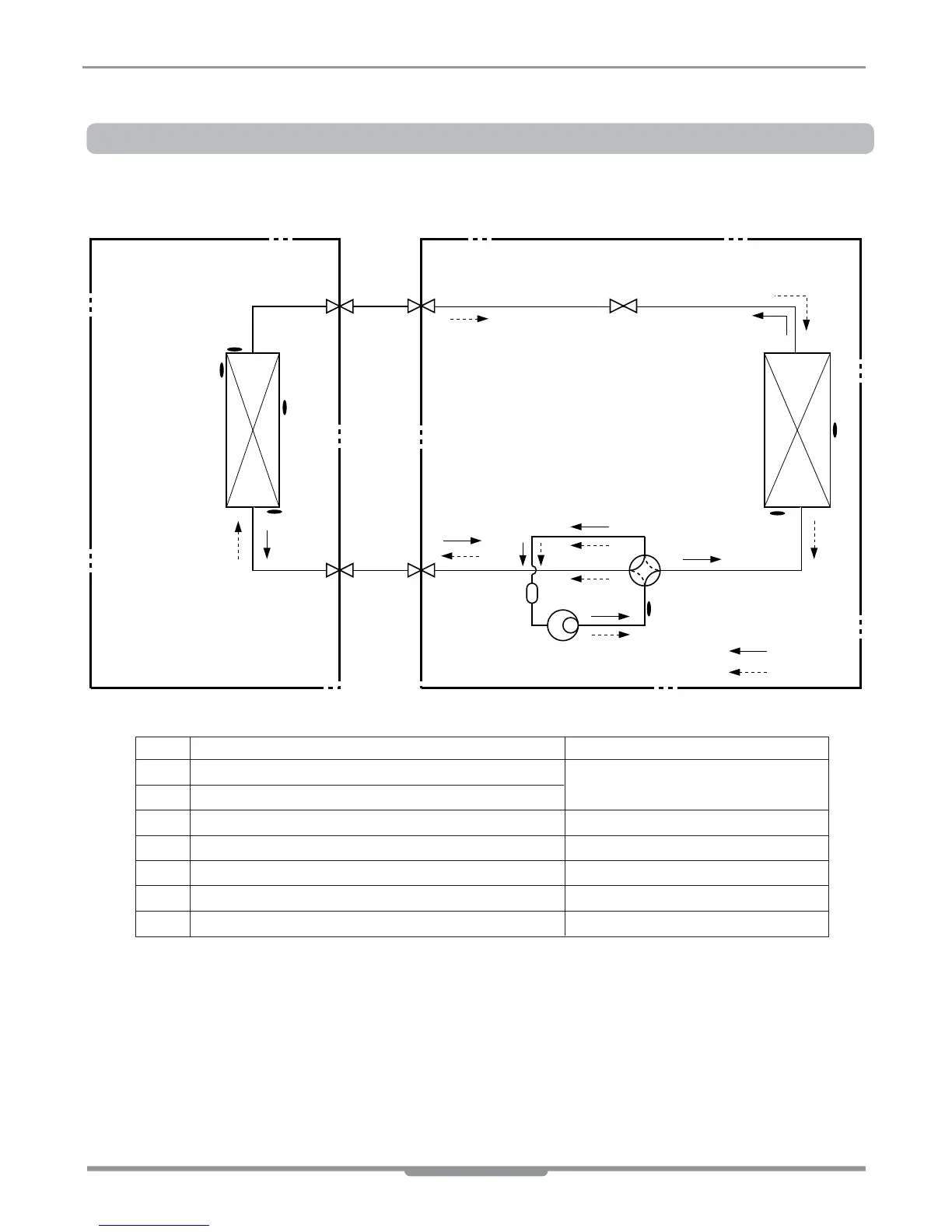

6. Refrigerant cycle diagram

Models :

AS-W093B1U1(LS091HSV), AS-W123B1U1(LS121HSV)

Indoor Unit Outdoor Unit

Heat

Exchanger

(Evaporator)

Heat

Exchanger

(Condenser)

Compressor

Accumulator

Gas Side

3-Way Valve

2-Way Valve

Liquid Side

Cooling

Heating

Reversing Valve

EEV

Th1

Th2

Th6

Th3

Th7

Th4

Th5

LOC. Description PCB Connector

Th1 Thermistor for sunction air temperature

CN-TH1(Indoor)

Th2 Thermistor for evaporator inlet temperature

Th3 Thermistor for evaporator outlet temperature CN-TH2(Indoor)

Th4 Thermistor for evaporator middle temperature CN-TH3(Indoor)

Th5 Thermistor for discharge pipe temperature CN-TH2(OUTDOOR)

Th6 Thermistor for condensing temperature CN-TH1(OUTDOOR)

Th7 Thermistor for outdoor air temperature CN-TH1(OUTDOOR)

※ EEV : Electronic Expansion Valve
