LG LSN181HSV Data Book

6RMI0-02A
34
Inverter Single

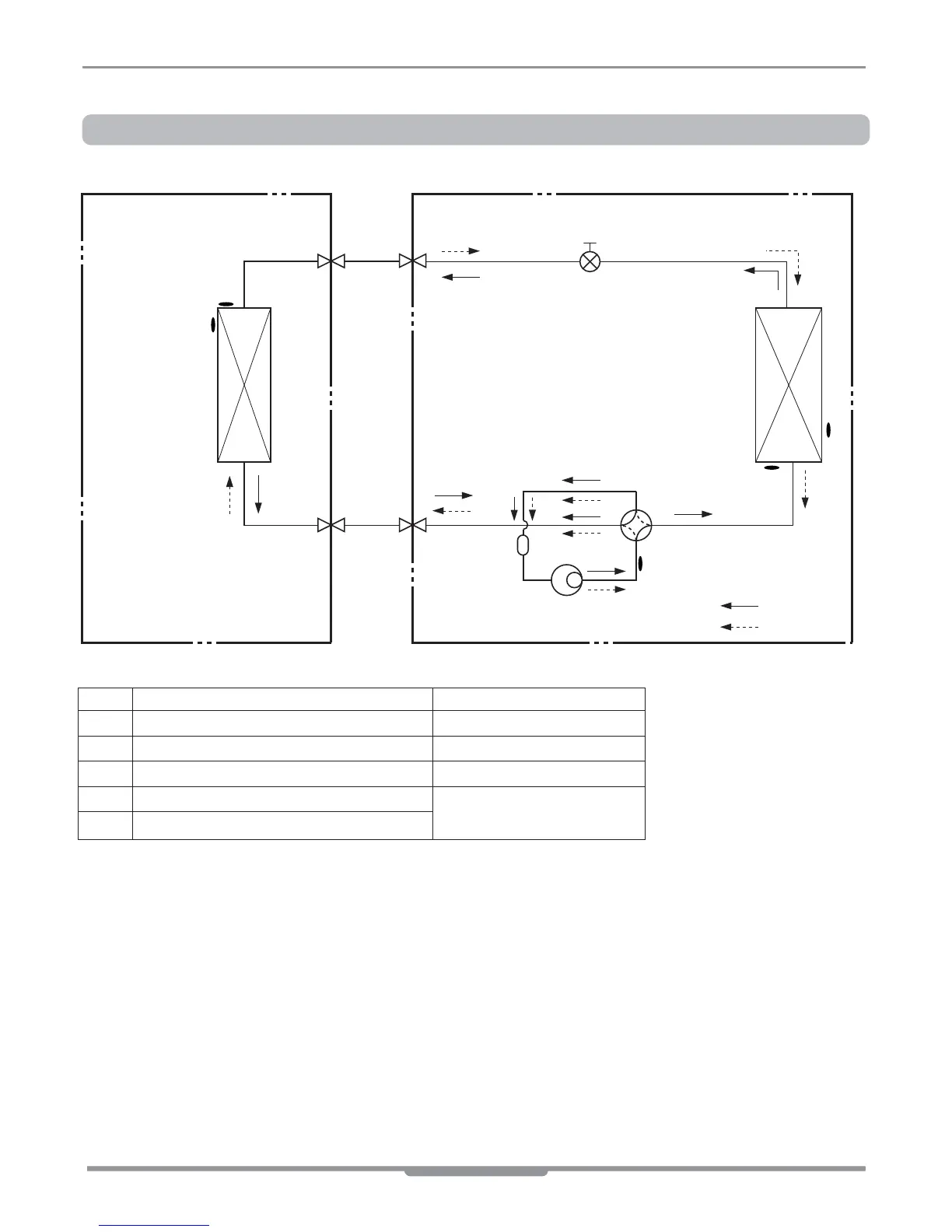

Refrigerant cycle diagram
Inverter Single
Inverter Single
Models : AS-W093ERH1(LA096HV),AS-W123ERH1(LA126HV)
Indoor Unit Outdoor Unit
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
EEV
Compressor
Accumulator
Gas Side
3-Way Valve
2-Way Valve
Liquid Side
Cooling
Heating
Reversing Valve
Th1
Th2
Th5
Th4
Th3
LOC. Description PCB Connector
Th1 Thermistor for indoor air temperature CN_TH1(INDOOR)
Th2 Thermistor for evaporating temperature CN_TH2(INDOOR)
Th3 Thermistor for discharge pipe temperature CN_D_PIPE(OUTDOOR)
Th4 Thermistor for condensing temperature
CN_TH1(OUTDOOR)
Th5 Thermistor for outdoor air temperature
* EEV : Electronic Expansion Valve.
