Indoor Unit Terminal Block
1(L1 ) 2(L2)
GND
GND
GRN / YLW
BR
BL
RD
3
3 or S
SN LBDU:
ODU:
Branch Distribution Unit Terminal Block or
Outdoor Unit Terminal Block

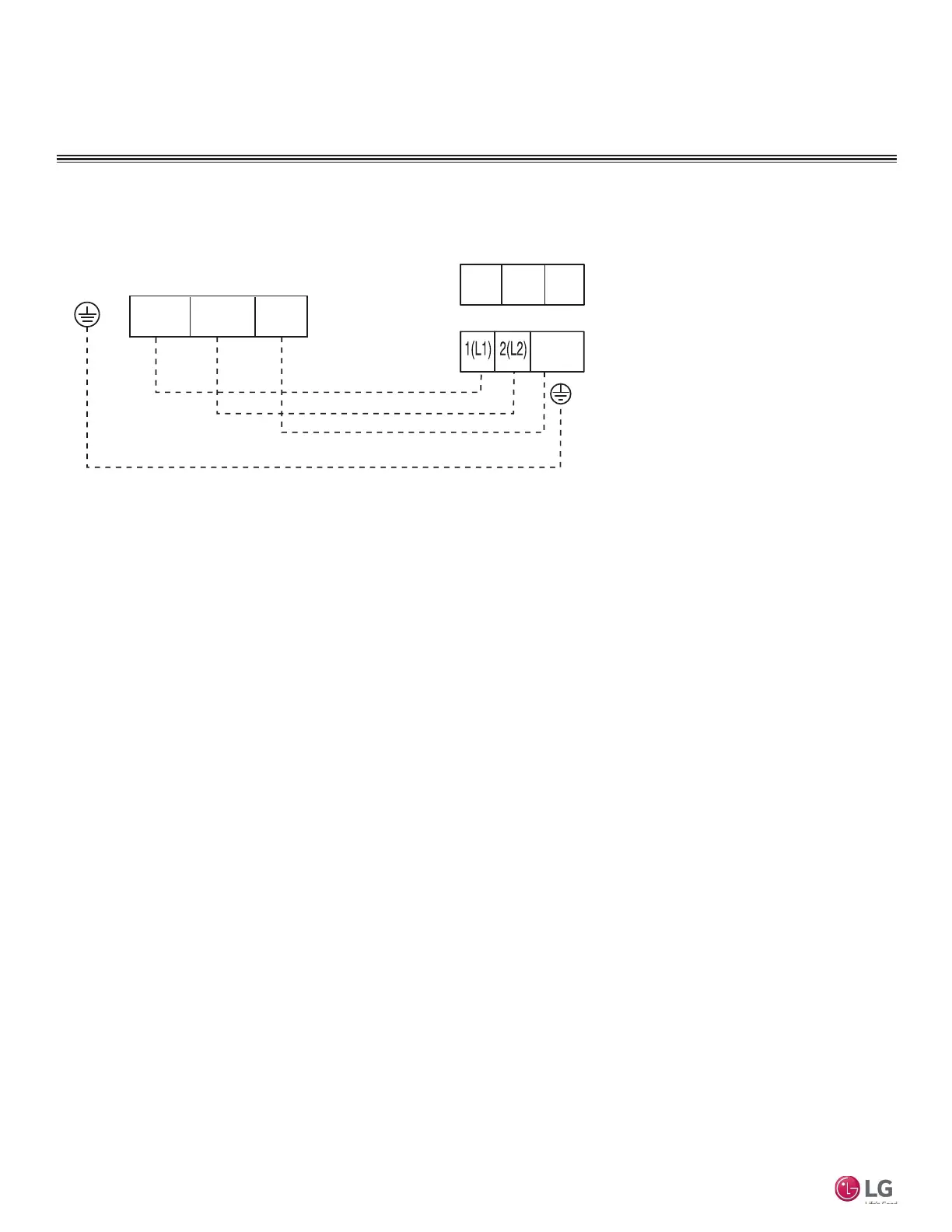

Figure 85: Indoor Unit to Outdoor Unit / Branch Distribution Unit Terminal Connections—LSN090HSV5, LSN120HSV5 and LSN181HSV5.
,QGRRU8QLW(OHFWULFDO&RQQHFWLRQV
WIRING
