FINAL INSTALLATION PROCEDURES
Reattach the indoor unit bottom cover after all other installation
procedures are complete.
1. If ON, shut power OFF to the system.
2. Align the bottom cover to the indoor unit using the rear tabs. Tap
the cover gently with the palm of a hand to ensure it engages at
the bottom.
3. Using a Phillips screwdriver, securely reattach the screws to the
bottom panel.
4. After the screws are in place, re-snap the latches over the
screws.

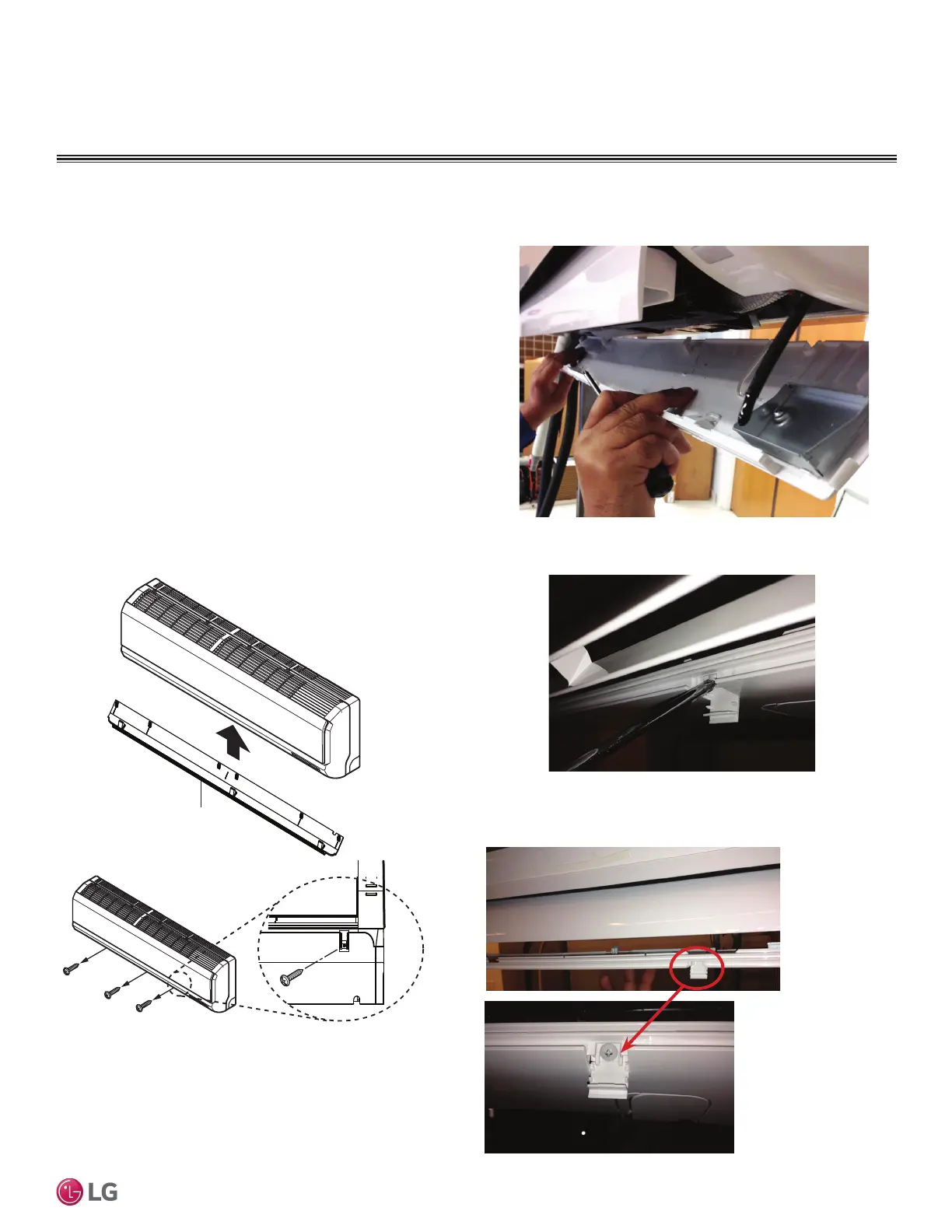

Figure 118: Aligning the Bottom Cover.
Cover
Figure 119: Reattaching the Bottom Cover.
Reattaching the Indoor Unit Bottom Cover (HXV Only)
Figure 120: Installing the Screws on the Bottom Panel.
Figure 121: Latches on the Bottom Panel.
Reattaching the Indoor Unit Bottom Cover
