38
Single Zone Mega and Mega 115V Wall Mounted Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
REFRIGERANT PIPING CONNECTIONS
Cover

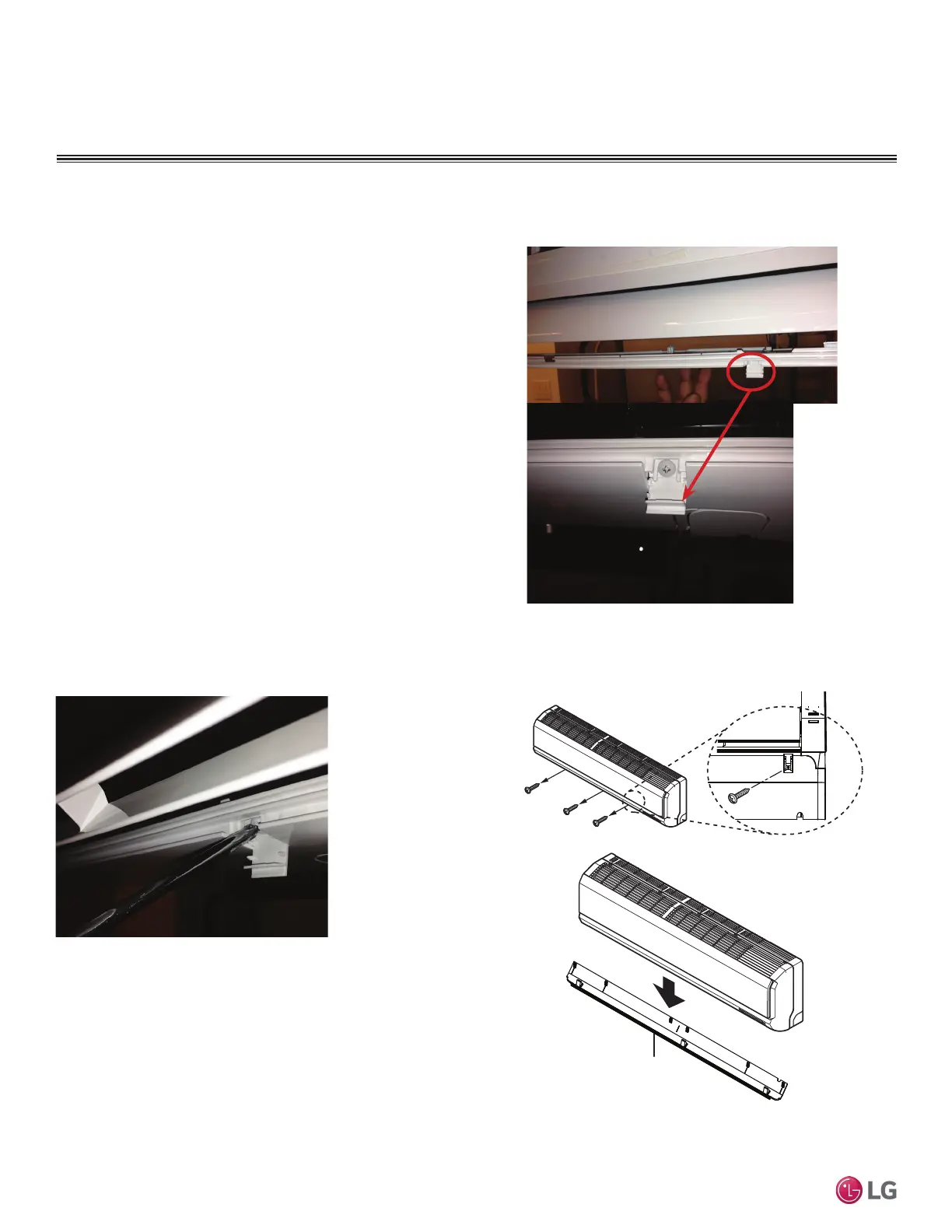

Figure 44: Latch over Screws on Bottom Cover, Indoor Unit.To access the indoor unit piping port connections, and to make the
indoor unit installation procedure easier, it is recommended that the
bottom cover be removed first.
1. On the bottom cover of the indoor unit, unsnap the latches that
hide the screws. Normally, there are two (2) to three (3) screws
on the panel, however, models may differ.
2. Using a Phillips head screwdriver, remove the screws from the
bottom cover of the indoor unit and set aside.
3. Remove the cover, taking care not to scratch the main horizontal
vane.
4. Set aside the bottom cover to re-install after all procedures are
complete.
Indoor Unit Connections
Figure 45: Remove Screws from Bottom Cover.
Figure 46: Removing the Cover from the Indoor Unit.
Removing the Indoor Unit Cover (HXV Only)
