22
Single Zone Mega and Mega 115V Wall Mounted Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL INSTALLATION GUIDELINES

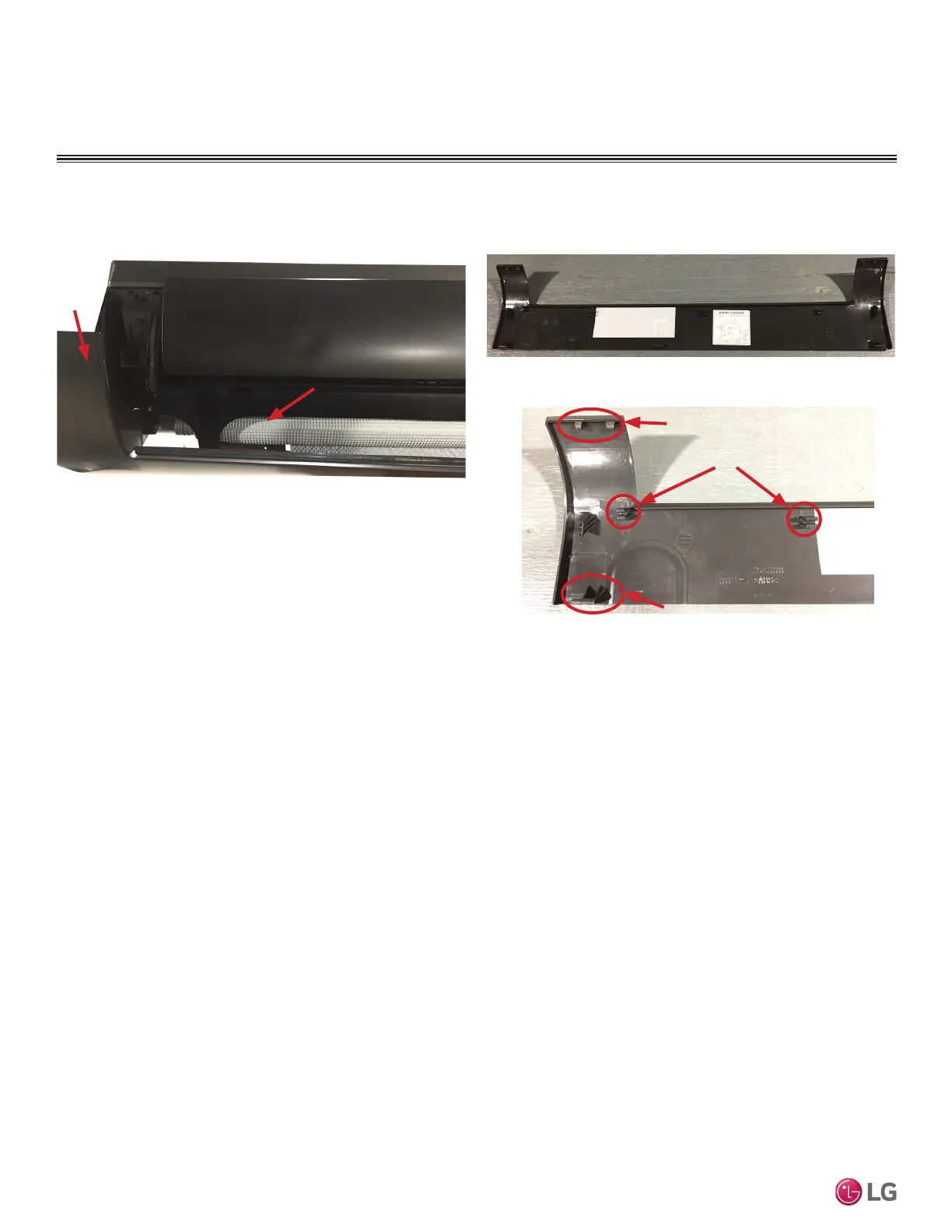

Figure 22: Back of Bottom Cover Completely Removed from Indoor Unit
(Appearances Will Vary Depending on Indoor Unit Model).
Figure 23: Bottom Cover with Top and Middle Unsnapped, Front View
(Appearances Will Vary Depending on Indoor Unit Model).
Inside of Indoor Unit
Top Left Side of
Bottom Cover
Figure 24: Close Up of Bottom Cover Connections (Appearances Will
Vary Depending on Indoor Unit Model).
Hinge
Top Snaps
C-Hooks
Removing the Indoor Unit Bottom Cover (Mega HEV2 and Mega 115V HXV2 Indoor Units), continued.
Indoor Unit Mounting
To Next Page
