62
Single Zone Mega and Mega 115V Wall Mounted Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
FINAL INSTALLATION PROCEDURES
Air Filter Assembly
1. Turn power OFF to the system.
2. Holding the air filter by its handles, match the hooks and grooves
on the air filter to the hooks and grooves at the top-back of the
indoor unit. (Number of hooks and grooves present depends on
model of indoor unit.)
3. Match the air filter bars and grooves to the grooves and hooks at
the top-front of the indoor unit.
4. Use thumbs to gently snap the air filter to the indoor unit where
the top-front bars, grooves, and hooks are located.
5. Check the sides of the front grille to verify the air filter is assem-
bled correctly.
6. Turn power back on to the system.
It is easier to assemble and disassemble the air filter if standing on
a ladder looking down at the top of the indoor unit.
Do not bend the air filter; this damages it.
If the air filter is not assembled correctly, dust and other substances
will enter the indoor unit.
2. Lifting the Air Filter by the Handles.
3. Disassembling the Air Filter.
Air Filter Disassembly and Assembly (HEV2 and
HXV2)
Air Filter Disassembly
1. Turn power off to the system.
2. Find the handles located at the top-front of the air filter molded into the plastic frame support.
3. Lift handles slightly up and out to remove the air filter.
2. Matching Hooks to Top-Back Grooves.
Three (3) Top-Back Hooks to Grooves.
Four (4) Top-Back Hooks to Grooves.
3. Location of Two (2) Top-Front Bars.
Example of Indoor Unit Hook to Air Filter Groove.
4. Securing the Air Filter on the Indoor Unit.
5. Checking the Sides for Correct Air Filter Assembly.

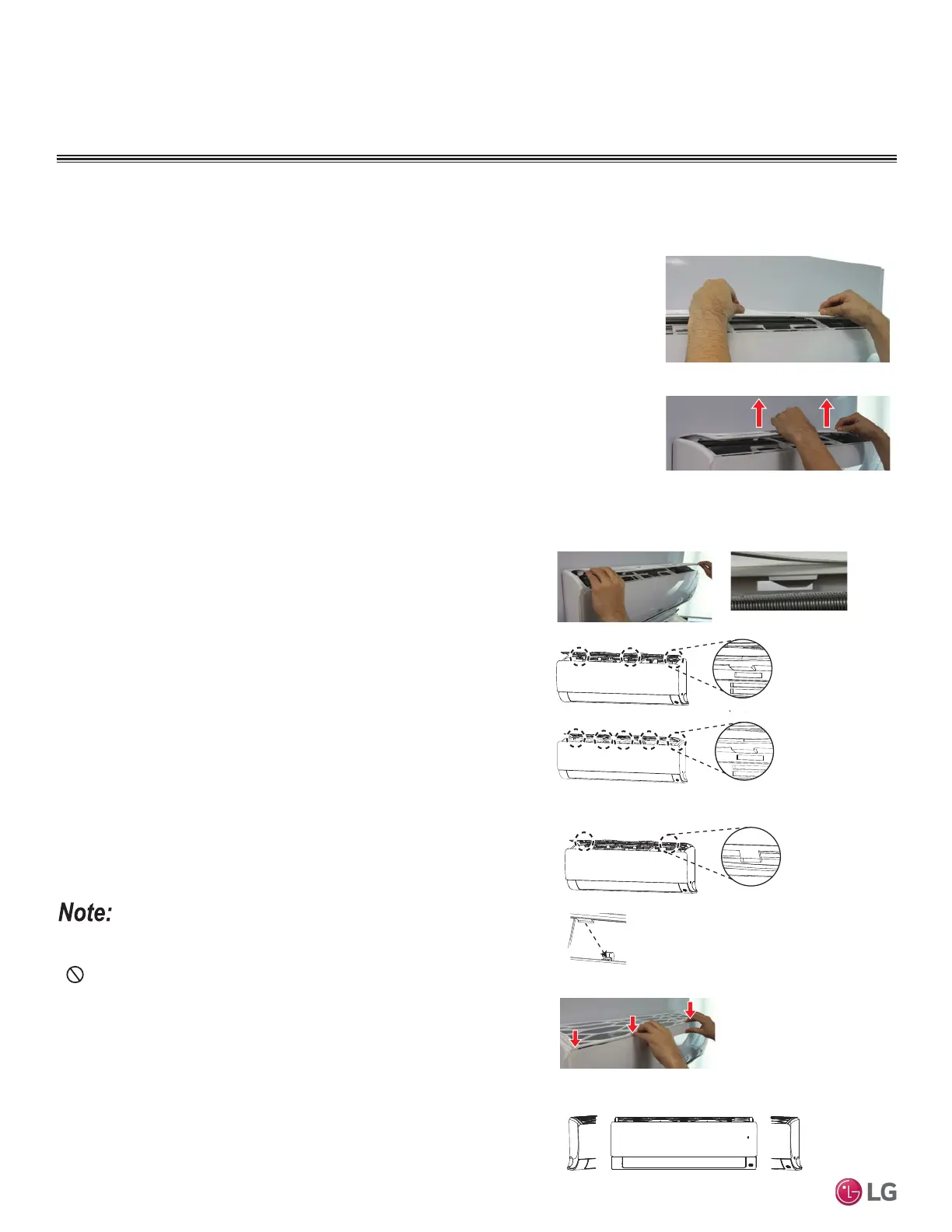

Figure 110: Disassembling the Air Filter
(Appearances Will Vary Depending on
Indoor Unit Model).
Figure 111: Assembling the Air Filter (Appearances Will Vary Depending
on Indoor Unit Model).
Air Filter Disassembly and Assembly
