- 14 -

Only for training and service purposes

LGE Internal Use Only

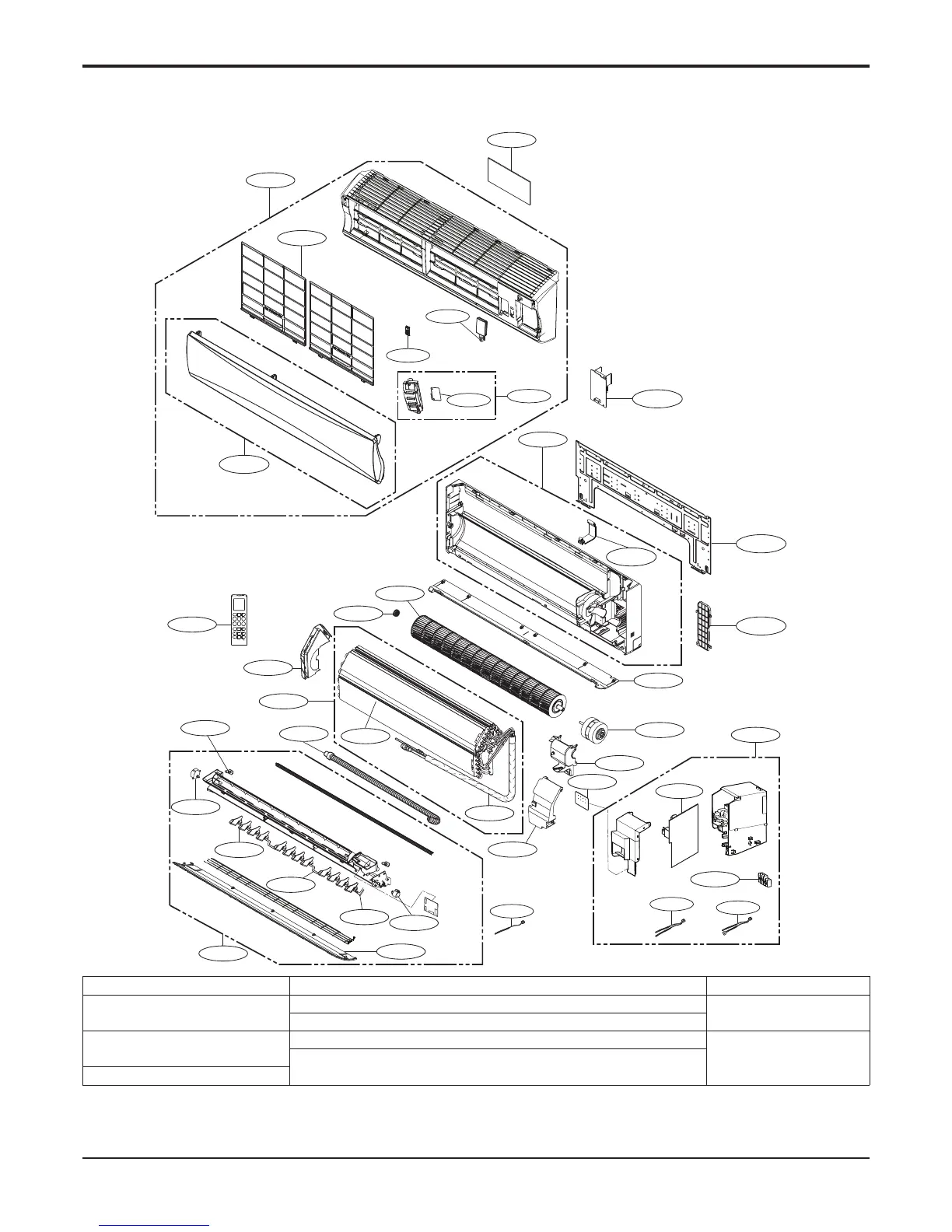

LSN180HSV4 (ASNW18GC2B0)

267110

131410

346810

135090

135500A

147581

W50400

147582

352150

354210

342800

35211B

135311

359011

145200B

146811A

146811B

149303

135511

135500C

733010

135316

152301

354212

268711E

149304

135313

145200A

135500B

263230A

TH1

TH2

263230B

TH2

263230C

249951

268711C

W6640

152302B

268711F

268711A

131111

268711G

Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.

Please check the correct parts in View RPL(Replacement Part List) on GCSC.

(GCSC Website http://www.lge.com)

LOC. Description Connector

263230A

Thermistor for indoor air temperature

TH1

Thermistor for evaporator inlet temperature

263230B

Thermistor for evaporator middle temperature

TH2

Thermistor for evaporator outlet temperature

263230C
