LG LSU180HSV4 - Page 9

- 9 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
LAN090HSV4 (ASNW09GBRB0), LAN120HSV4 (ASNW12GBRB0)
* Auxiliary heater relay kit is not available on single zone wall mounted models.

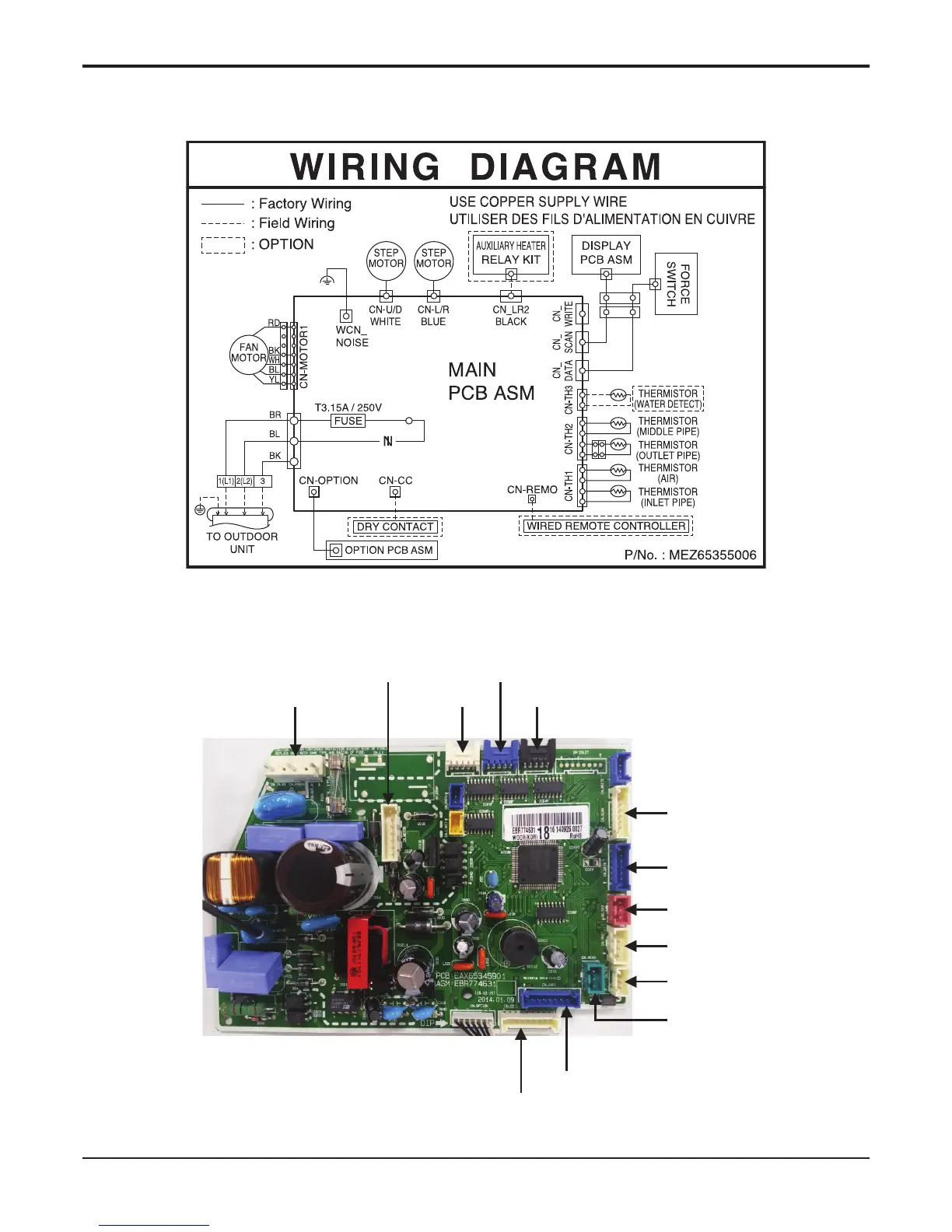

CN_POWER
CN_POWER
CN_CC
CN_CC
CN_UART
CN_UART
CN_UD
CN_UD
CN_LR2
CN_LR2
CN_SCAN
CN_SCAN
CN_DATA
CN_DATA
CN_TH3
CN_TH3
CN_TH2
CN_TH2
CN_TH1
CN_TH1
CN_REMO
CN_REMO
CN_LR
CN_LR
CN_MOTOR
CN_MOTOR
