10

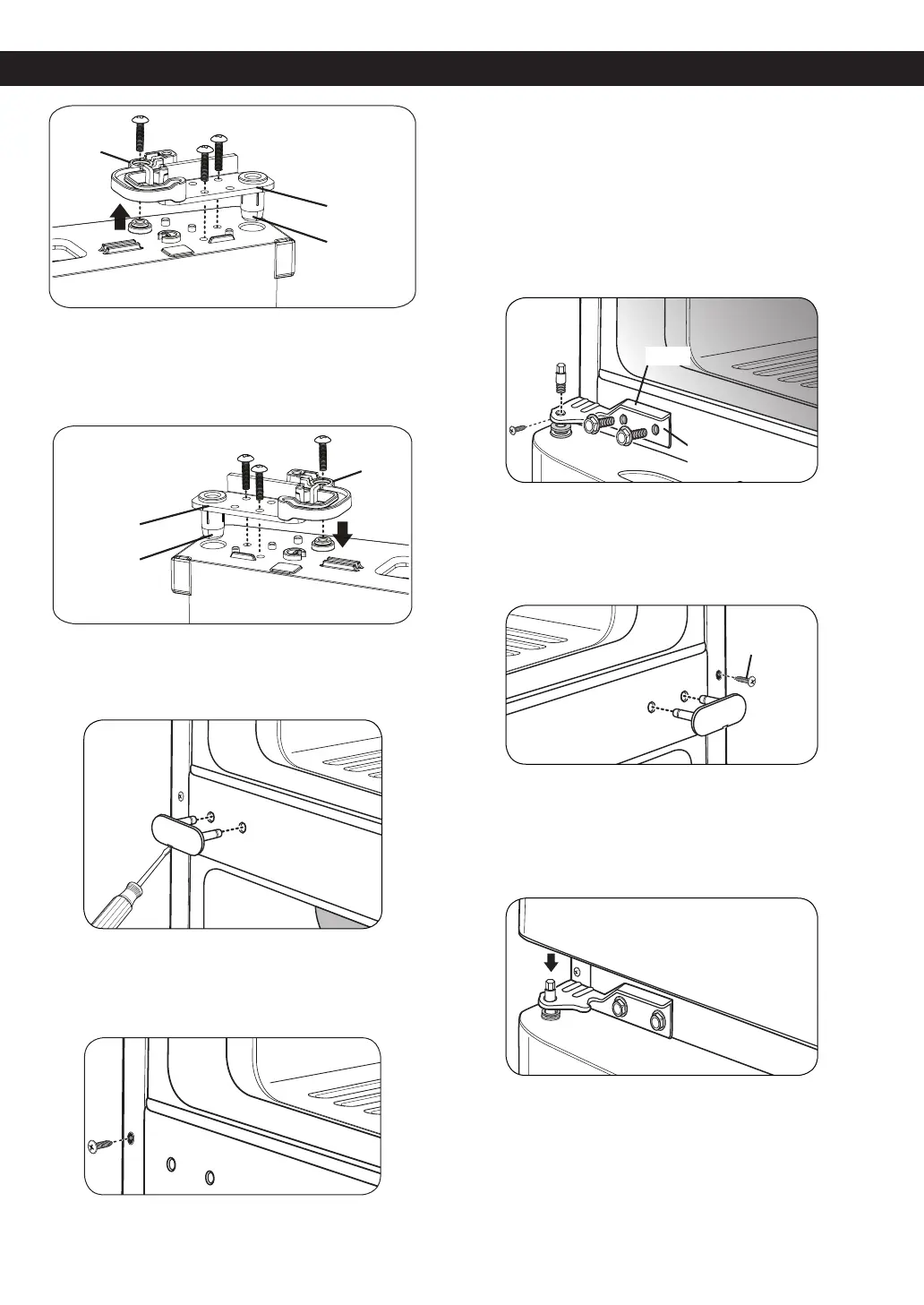

With a flat-head screwdriver, carefully pry off and
remove the cover over the screw holes on the left side of
refrigerator housing.
Remove the outer lower Decorative Screw from the
housing at the area between the freezer and refrigerator
doors (You will need this hole for the Middle Hinge
Bracket.)
Flip the Middle Hinge Bracket, (flange will now be on
top) position it on left side of the refrigerator and reattach
with two bolts and a Phillips screwdriver. Place the
refrigerator door down over the pin on the bottom hinge.
Place the washer between the refrigerator door and
middle hinge and re-attach Hinge Pin to Hinge Bracket
with a ¼” socket wrench.
NOTE: Bracket has been flipped, but Hinge Pin stays
in the same orientation with its hexagonal end facing
upward.
Insert the Decorative Screw into the outer hole on the
rightside of the housing. Attach cover on the right side.
Cover is force-fitted.
REATTACHING THE DOORS
Place the freezer door down over the Hinge Pin on the
Middle Hinge Pin Bracket.
Place the Upper Hinge Pin on t
op of the freezer door
and line up the Upper Hinge with holes on top of the
refrigerator. Use the three bolts to replace the Hinge.
Middle Hinge
Bracket
Flange
REFRIGERATOR INSTALLATION
Door
Closer/
Stop
Hinge Pin
Insert
Hinge
Pin Bracket
Reverse the Door Closer/Stop by flipping it over.
Place the hinge pin bracket, and the hinge pin insert
keeping the same orientation on the opposite door
side, then place the door clooser on top, and tighten
the 3 philliphs screws.
Hinge Pin
Insert
Hinge
Pin Bracket
Door
Closer/
Stop
To Next Page
