14 INSTALLATION

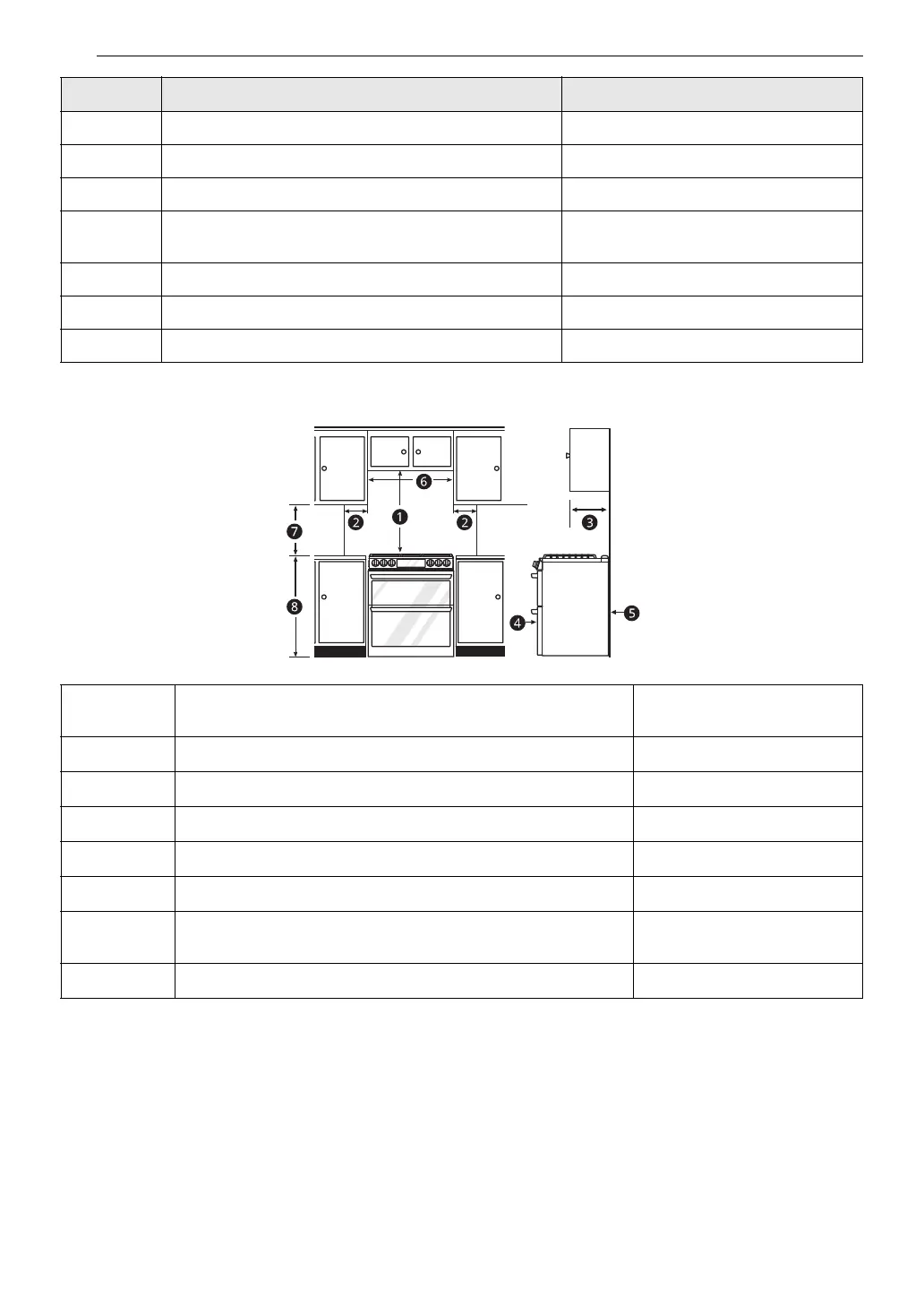

Clearances
B Height 37 1/8" (943 mm)
C Depth (Includes Door Handle) 29 1/4" (743.2 mm)
D Height (Excludes Vent Trim) 36" (913.0 mm)
E Depth (Includes only the product body that is loaded
into the cabinet. Excludes door, drawer, and handles)
24 3/4" (629.4 mm)
F Depth (Excludes Door Handle) 26 7/8" (683 mm)
G Depth when upper door is fully opened 38 5/8" (981.2 mm)
H Depth when lower door is fully opened 42 3/16" (1072.2 mm)
a
Minimum distance from top of range to combustible surface
overhead
30" (76.2 cm)
b
Minimum clearance to left/right wall 5" (12.7 cm)
c
Maximum depth for cabinets above countertops 13" (33.0 cm)
d
Front edge of the range side panel forward from cabinet 2 1/4" (6.3 cm)
e
To cabinets below cooktop and at the range back 0"
f
Minimum opening in overhead cabinets 30" (76.2 cm)
g
Minimum distance from countertop to overhead cabinets at
side
18" (45.7 cm)
h
Height of countertop 36" (91.3 cm)
- Dimensions LTGL6937*
