14
EN
6

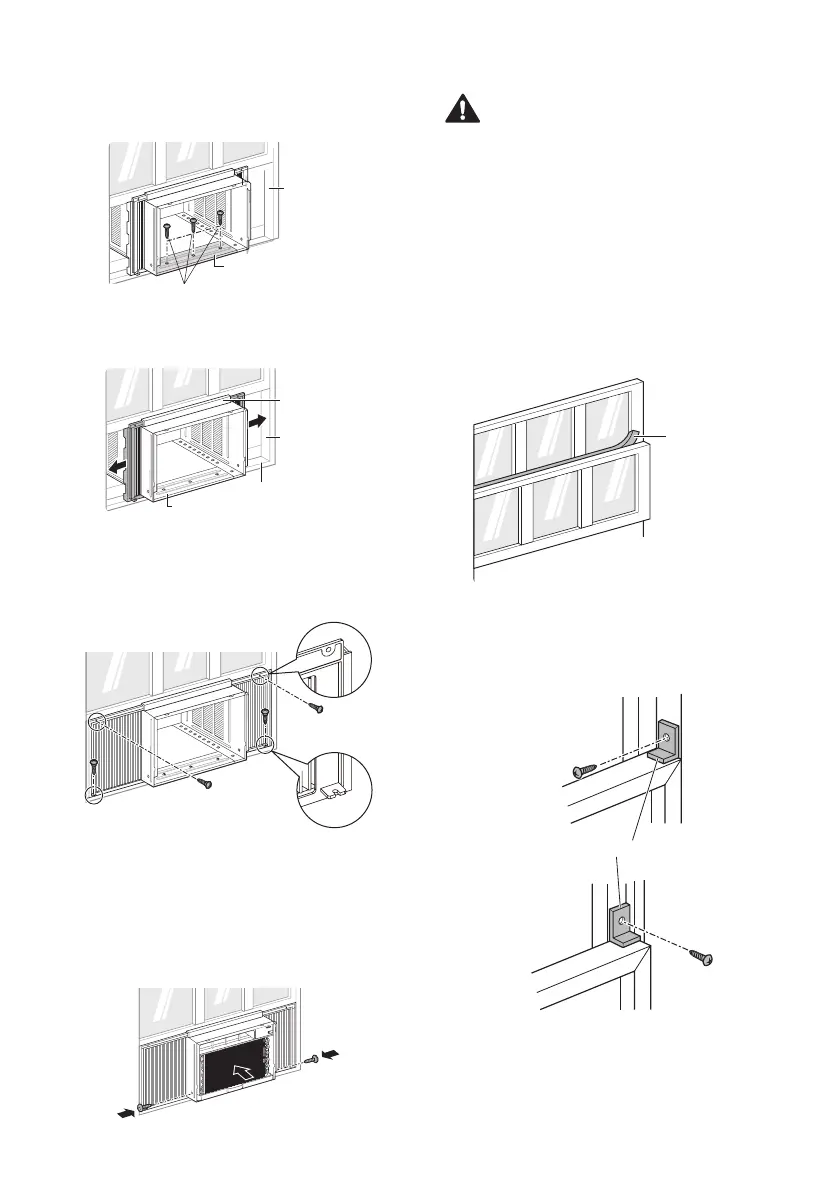

Mount the cabinet to the window sill using 3
type B screws in the holes on the front angle.
Sash TrackSash Track
Front AngleFront Angle
Screws (Type B)Screws (Type B)
7
Pull each curtain panel out until it meets the
window sash track.
Sash TrackSash Track
Front AngleFront Angle
Upper Panel Upper Panel
GuideGuide
Inside Window SillInside Window Sill
8
Use a screwdriver or power drill to attach
the curtain panels to the window sashes by
inserting type C screws into the sashes through
the cabinet holes shown in the figure below.
Screws Screws
(Type C)(Type C)
Unit Installation
1
With the aid of an assistant, slide the unit into the
cabinet. Do not push on the controls or the finned
coils. Reinstall the screws removed from the
cabinet sides in step 1 of preparation of cabinet.
CAUTION
• The unit is heavy. Use an assistant to help
lift the unit and set it in place. Lifting and
maneuvering the unit by yourself could result
in injury.
• Hold the unit firmly in place until the window
frame is lowered to meet the top surface of the
unit directly behind the upper guide. If the unit
falls from the window, it could cause personal
injury or property damage.
2
Cut the non-adhesive foam strip to the proper
length and insert it between the upper window
sash and the lower window sash.
Foam Strip Foam Strip
(Non-adhesive)(Non-adhesive)
3
To prevent broken glass or damage
to windows, on vinyl or other similarly
constructed windows, attach the window
locking bracket with a type C screw.
Screw Screw
(Type C)(Type C)
Window Locking BracketWindow Locking Bracket
VinylVinyl
Screw Screw
(Type C)(Type C)
WoodWood
To Next Page
