- 2-11 -

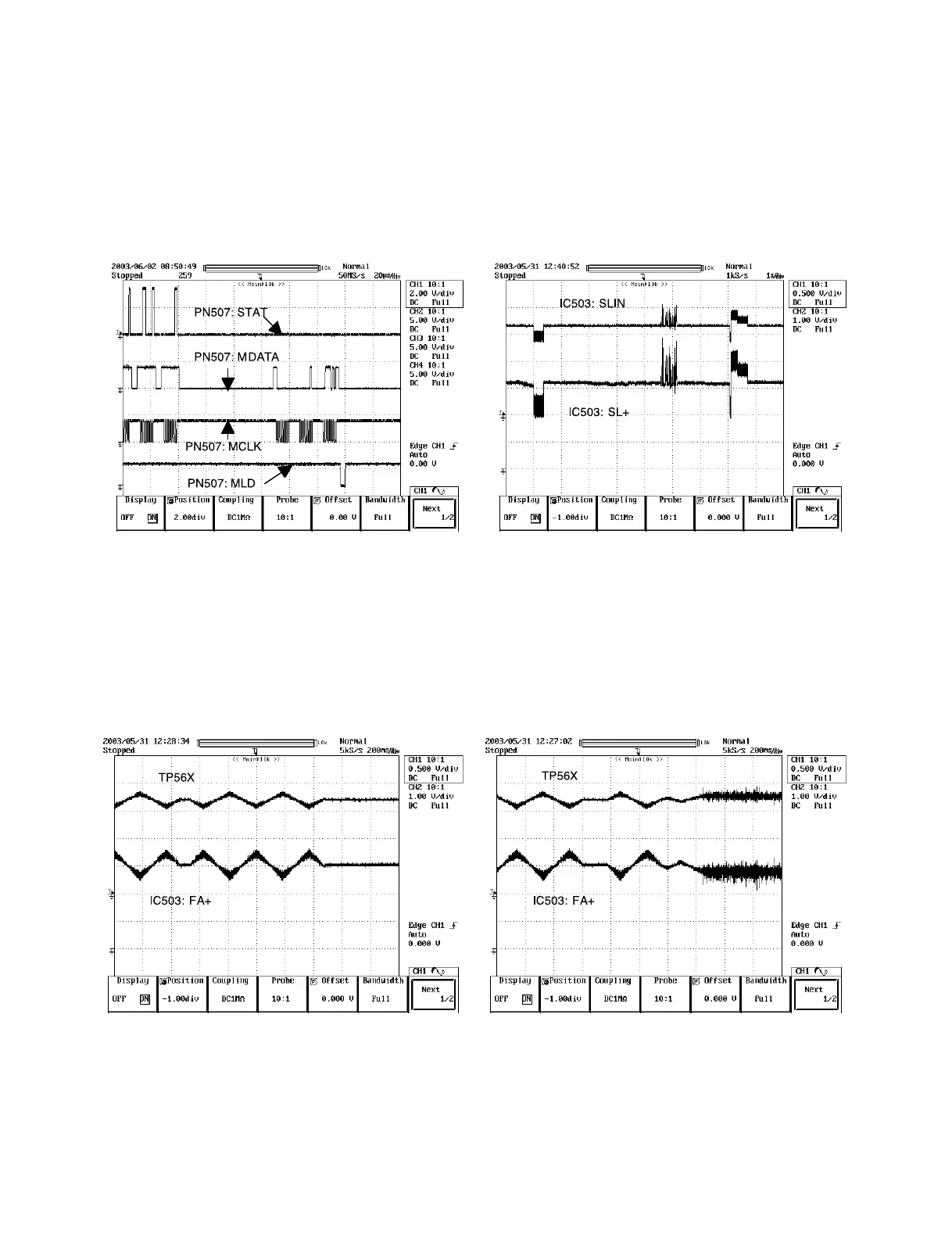

ā WAVEFORMS OF MAKOR CHECK POINT
#1 . MICOM INTERFACE WAVEFORM
(PN507 pin6, 8, 9, 1 0) during normal play
#2. SLED DRIVE AND MOTOR WAVEFORM
(IC503 pin5, 1 4) when focus search
#3. FOCUS DRIVE AND MOTOR WAVEFORM
(TP56 1 , IC503 pin 1 5)
- When focus search failed or there is no
disc on tray
- There is disc on tray and focus search
success
