LG LX-M230A - Page 32

- 2-42 -

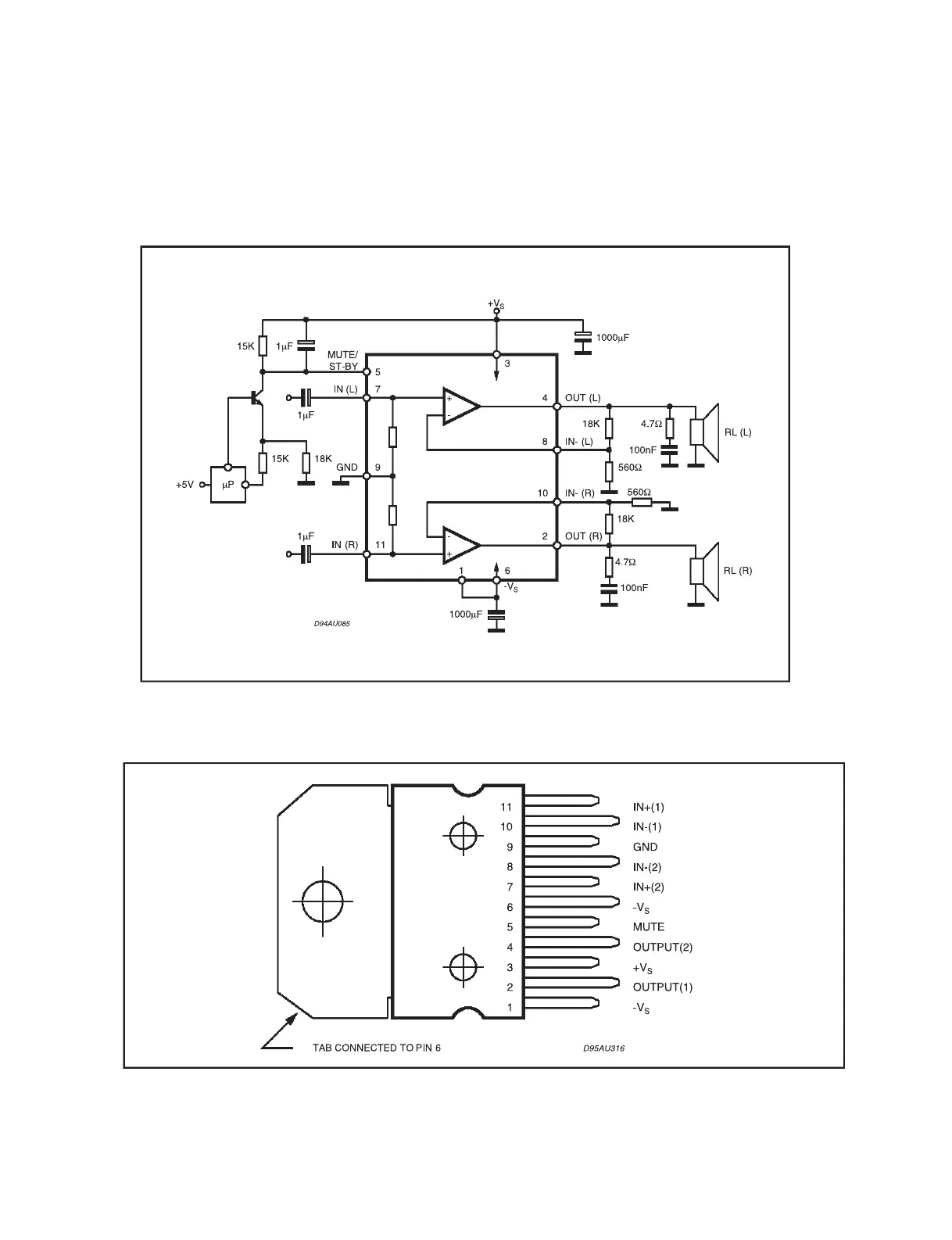

■ TDA7265 (IC701)
25 +25W STEREO AMPLIFIER WITH MUTE & ST-BY
• DESCRIPTION
The TDA7265 is class AB dual Audio power am-plifier assembled in the Multiwatt package, spe-cially
designed for high quality sound application as Hi-Fi music centers and stereo TV sets.
• PIN CONNECTION (Top view)
