LG MCV903 Series - Dsp Schematic Diagram

4-5 4-6

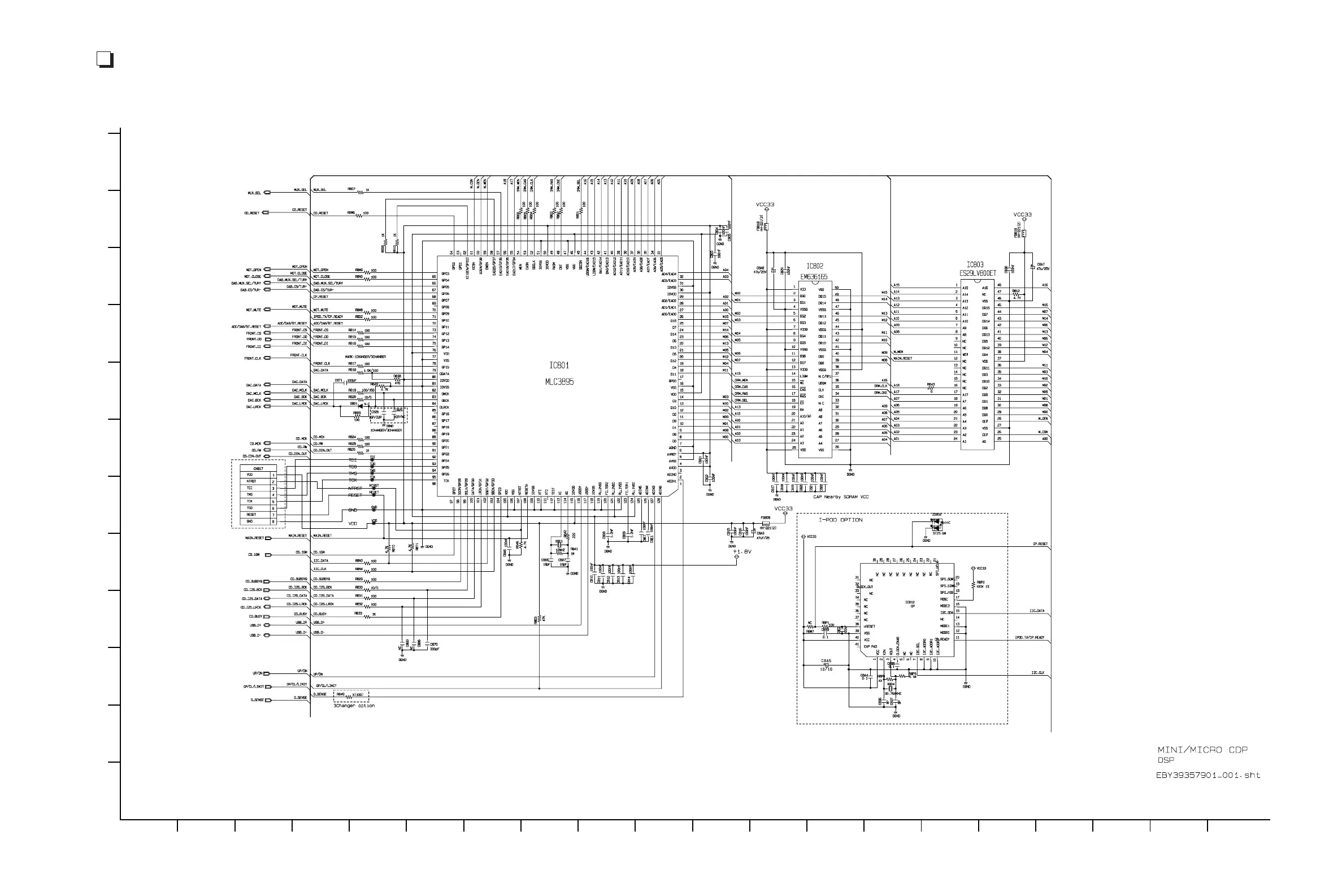

1. DSP SCHEMATIC DIAGRAM
2008.01.25
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
CD SCHEMATIC DIAGRAMS
