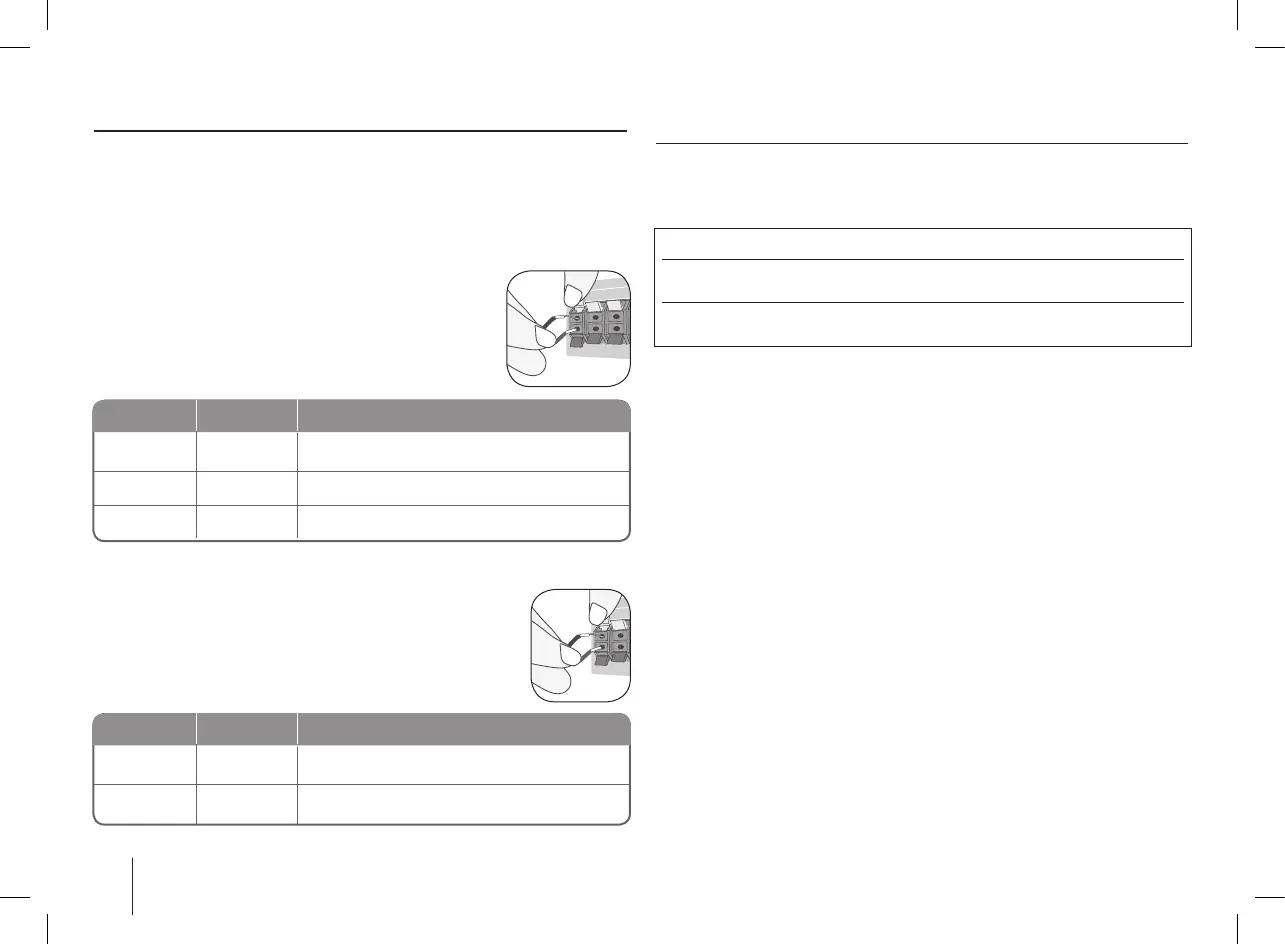

Setting up
Attaching the speakers to the unit
Connect the black end of each wire to the terminals marked - (minus) and the
other end to the terminals marked + (plus).
To connect the cable to the each speakers, press each plastic finger pad to
open the connection terminals on the back of each speaker. Insert the wire and
release the finger pad.
Be careful of the following
• Be careful to make sure children not to put their hands or any objects into the
*speaker duct.
* Speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).
Red
White
Orange
Front
Front
Sub Woofer
In front of you, to the right of the screen.
In front of you, to the le ft of the screen.
This can be placed in any front position.
POSITION
SPEAKER
COLOUR
MDT354 (2.1 channel)
Red
White
Front
Front
In front of you, to the right of the screen.
In front of you, to the left of the screen.
POSITION
SPEAKER
COLOUR
MDD64/MDD104/RDD264 (2 channel)
Remote control Operation
Point the Remote Control at the display window and press the buttons.
Remote control Battery Installation
1 Detach the battery cover on the rear of the remote control.
2 Insert the R03 (size AAA) battery with 3 and # aligned correctly.
