OUTDOOR UNIT CORNER WEIGHT AND CENTER OF
GRAVITY DIMENSIONS

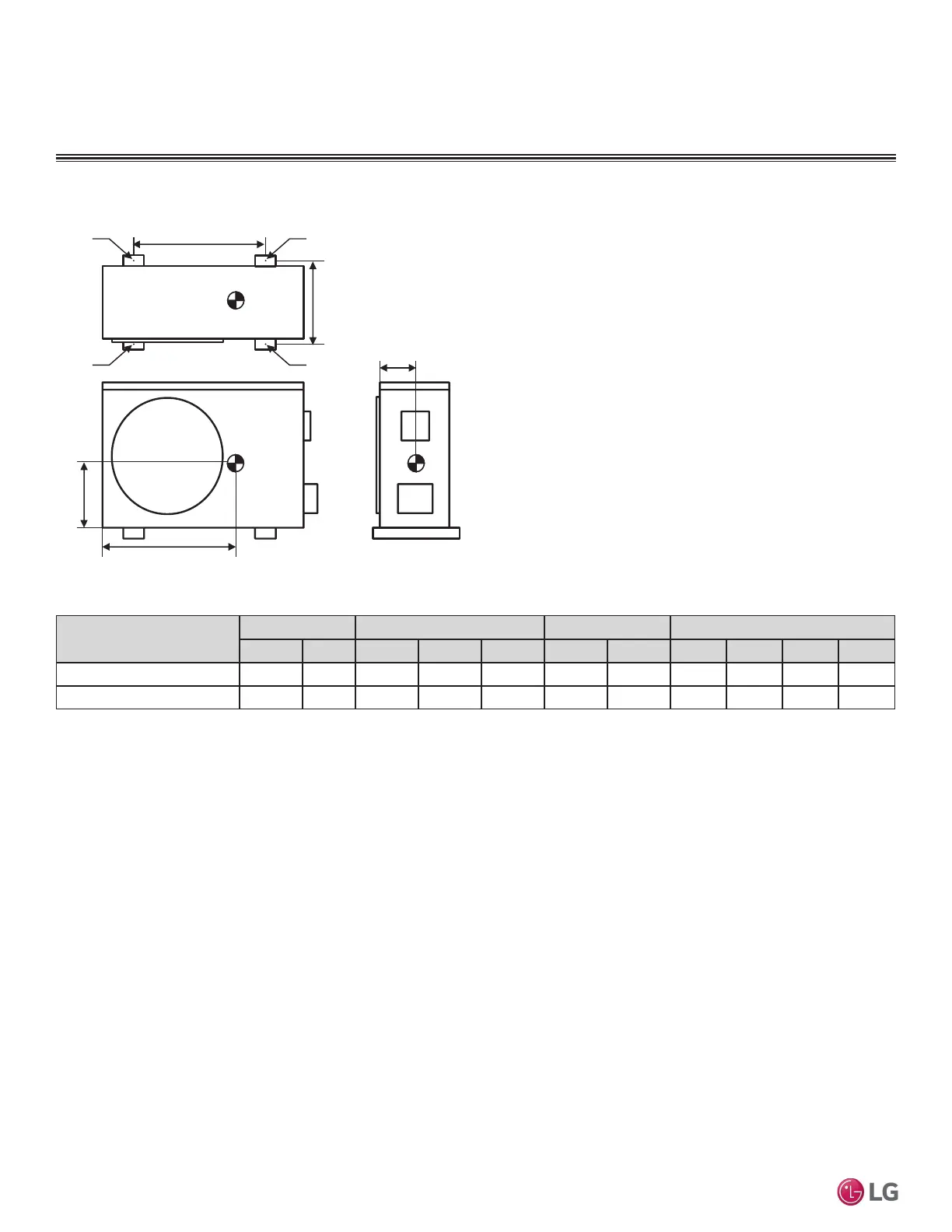

Figure 3: LSU090-120-180-240HEV2 Outdoor Unit Corner Weight and Center of Gravity Dimensions.
e
a
b
c
A
d
B
C
D
Model No.
Weight (lb.) Center of Gravity (Inch) Leg (Inch) Corner Weight (lb.)
Shipping Net a b c d e A B C D
LSU090HEV2, LSU120HEV2 60.0 55.3 18-11/16 8-5/8 4-7/16 18-7/32 10-3/32 3.5 5.7 23.1 23.0
LSU180HEV2, LSU240HEV2 108.0 98.1 22-1/4 10-1/4 5-29/32 23-1/16 14-13/32 11.4 16.0 37.3 33.4
Table 7: LSU090-120-180-240HEV2 Outdoor Unit Corner Weight and Center of Gravity Dimensions.
