14 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

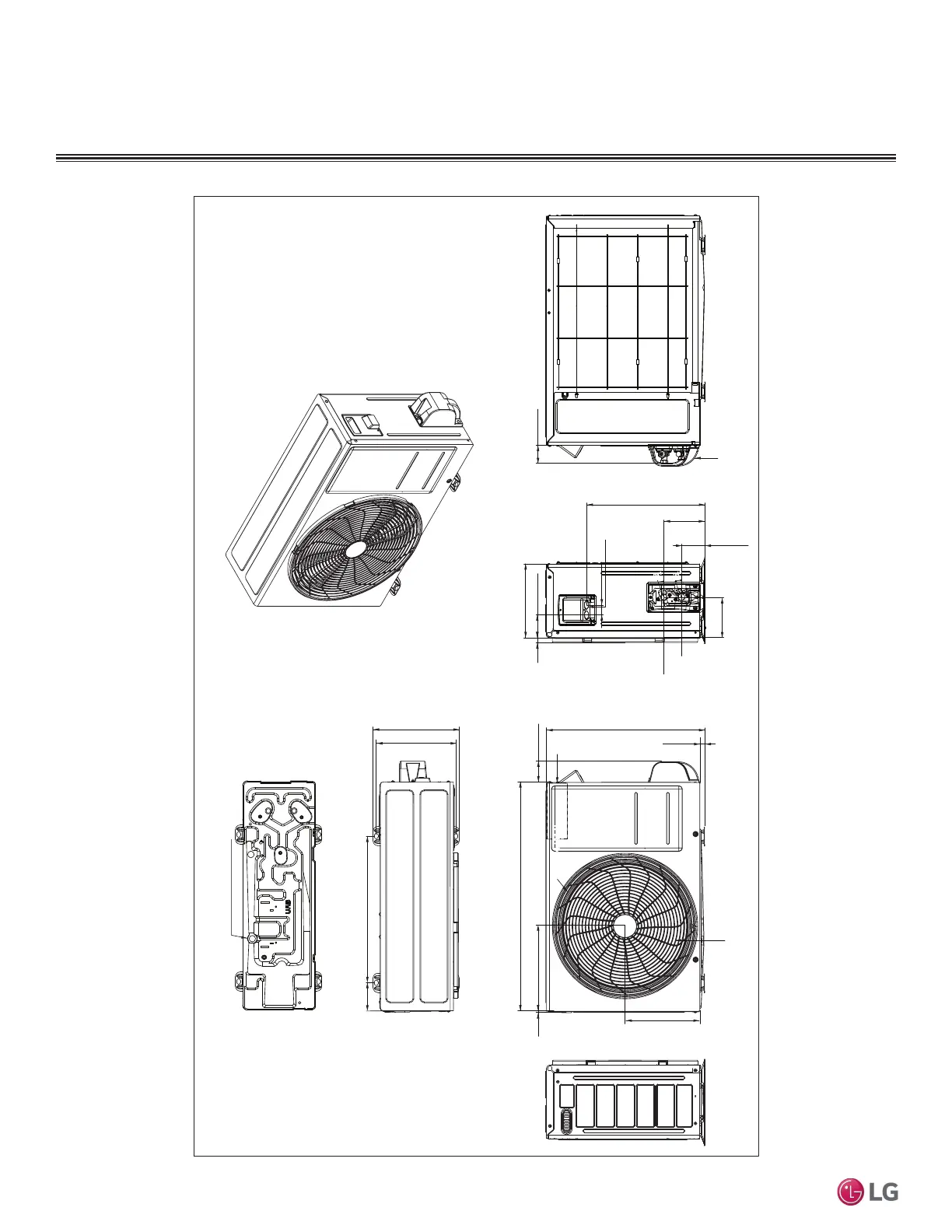

OUTDOOR UNIT DIMENSIONS
LSU090HEV2, LSU120HEV2
Unit: Inch (mm)
9-27/32 (250)
10-5/8 (270)
Drain Hole 2-Ø13/16 (20)
3-1/2 (89)
18-7/32 (463)
5/8 (16)
2-9/16 (65)
28-7/32 (717)
10-1/2 (267)3/16 (5)
19-1/2 (495)
9/16 (14)
9-1/4 (235)
2-7/32 (56)
Ø16-1/4 (413)
9-1/16 (230)
2-13/16 (71)
14-5/8 (371)
5-3/32 (129)
2-15/16 (74)
5 (127)
1-1/4 (31)
21°
21°
Liquid Pipe Connection (Flare) Vapor Pipe Connection (Flare)
Service Valve Cover
Power and Communication Cable Access Hole
Air Outlet
Control Box
