24 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
©
/*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
0HJDDQG0HJD92XWGRRU8QLWV
Model
Sound Pressure Levels (dB[A])
Cooling (High) Heating (High.)
Mega
LSU090HEV2 50 50
LSU120HEV2 50 50
LSU180HEV2 55 55
LSU240HEV2 55 55
Mega 115V
LSU090HXV 47 47
LSU120HXV 47 47

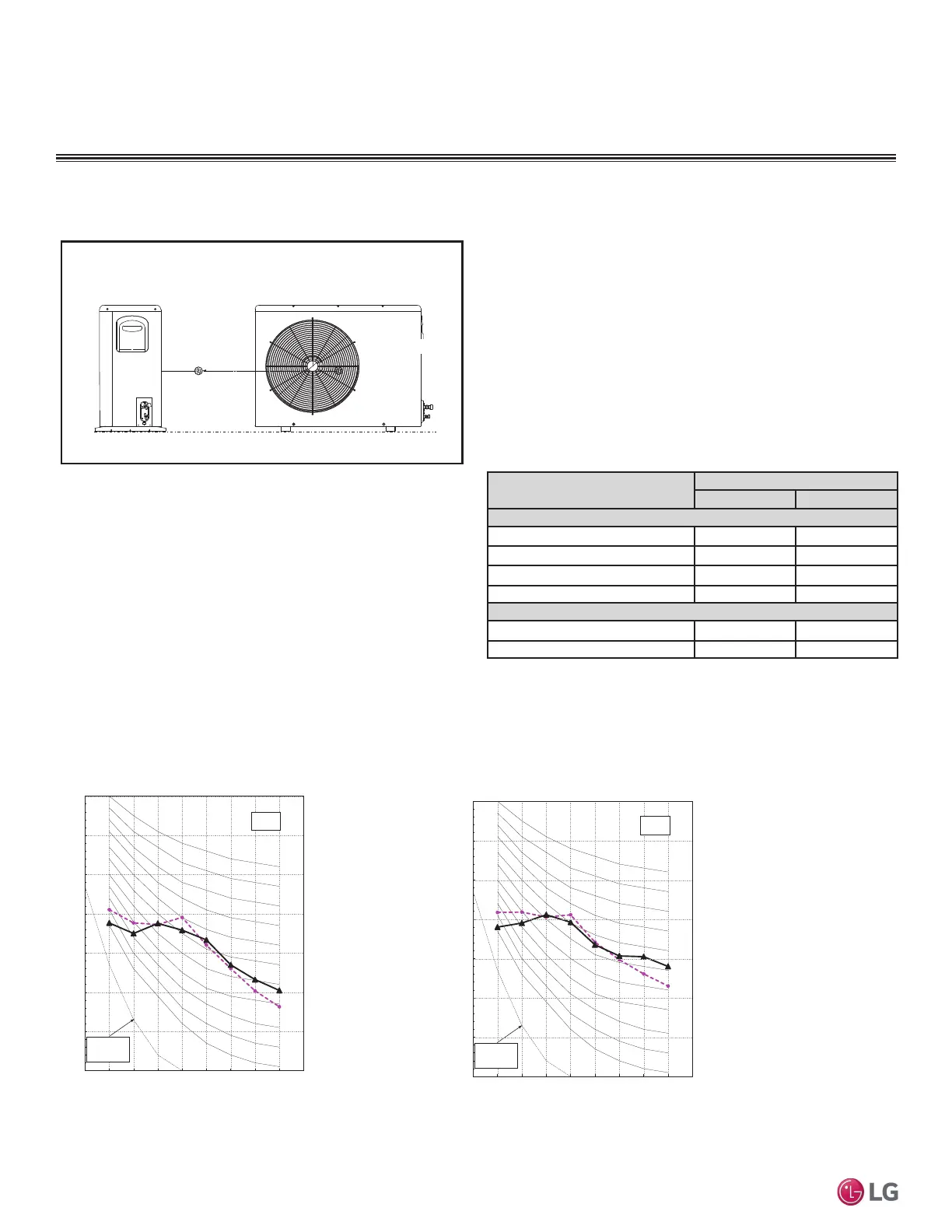

Table 9: Outdoor Unit Acoustic Data
Figure 10: Outdoor Unit Sound Levels
Figure 11: Sound Pressure Levels for Mega LSU090HEV2 Outdoor Units.
ACOUSTIC DATA
3.3 (1)
Center of
Outdoor Unit
Unit: ft. (mm)
Diagram above for illustrative purposes only. Actual appearance differs depending on
outdoor unit model.
• Measurements are taken 3.3 ft away from the front of the unit.
• Sound pressure levels are measured in dB(A) with a tolerance of
±1.
• Data is valid at nominal operation conditions. Operating conditions
are assumed to be standard.
• 5HIHUHQFHDFRXVWLFSUHVVXUHG% ȝ3D
• Sound pressure levels are tested in an anechoic chamber under
ISO Standard 3745, and may be different according to the test
condition or equipment.
• Sound level will vary depending on a range of factors including the
construction (acoustic absorption coefficient) of a particular room in
which the unit was installed.
LSU090HEV2
Cooling Heating
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Ÿ
Ɣ
Front
Back
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave %DQG3UHVVXUH/HYHOG% ȝ3D
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave %DQG3UHVVXUH/HYHOG% ȝ3D
Ɣ
Ÿ Front
Back
Octave Band Center Frequency (Hz)
Approximate
Hearing
Threshold
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Outdoor Unit Sound Pressure Measurement / Sound Pressure Levels
LSU090HEV2 Sound Pressure Levels
