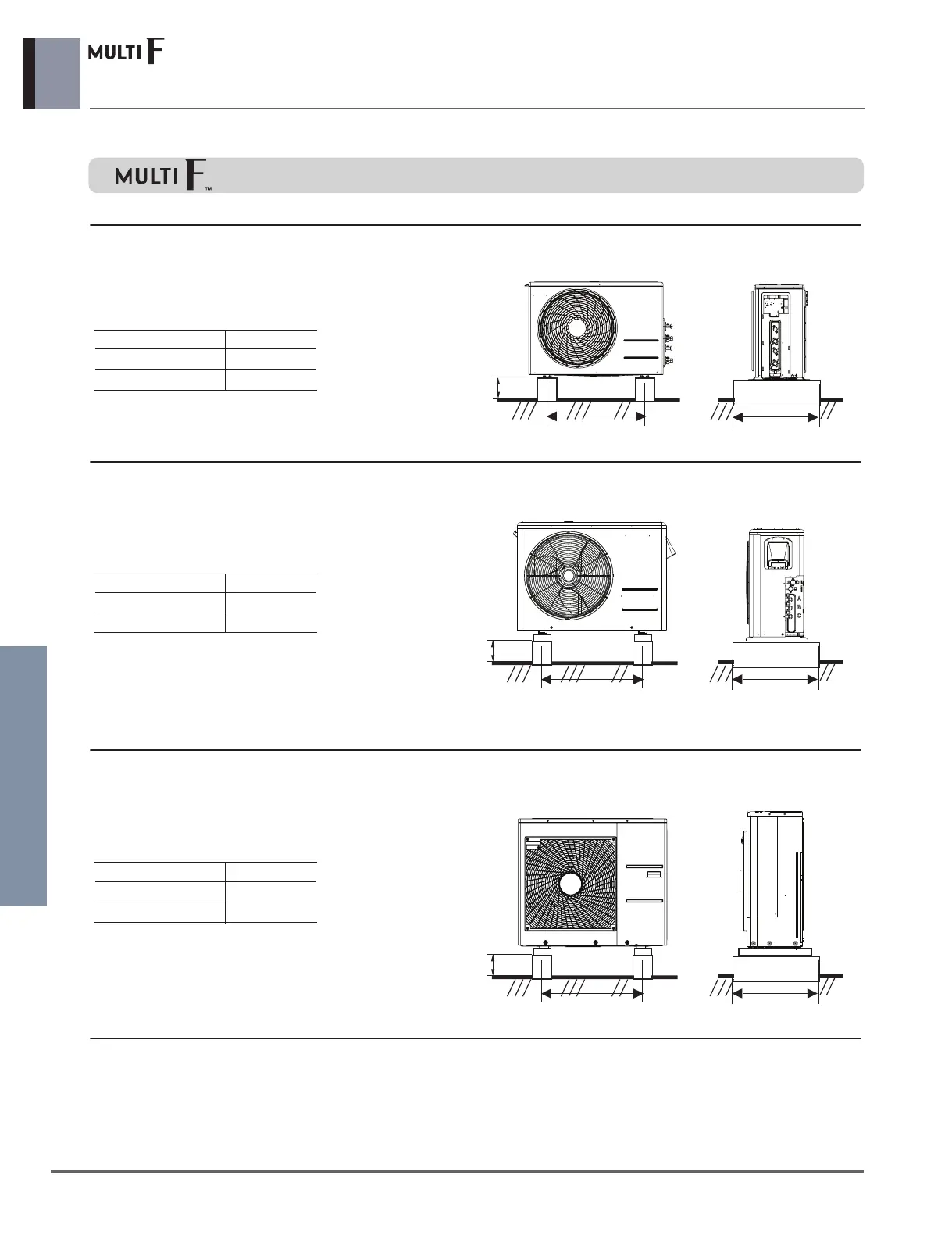

3. Installation of outdoor unit
43 _ Heat pump 60Hz/R410A
Part 3 Design and installation
3.3 Foundation
100mm
or more
546mm
376mm or more
200mm
or more
620mm
400mm or more
A3UW21GFA0
A5UW30GFA0
<Basic intensity>
Bolt Factor M10-J type
Concrete height 100mm or more
Bolt inserted depth 70mm or more
<Basic intensity>
Bolt Factor M10-J type
Concrete height 200mm or more
Bolt inserted depth 70mm or more
100mm
or more
558mm
370mm or more
A2UW16GFA0
<Basic intensity>
Bolt Factor M10-J type
Concrete height 100mm or more
Bolt inserted depth 70mm or more
