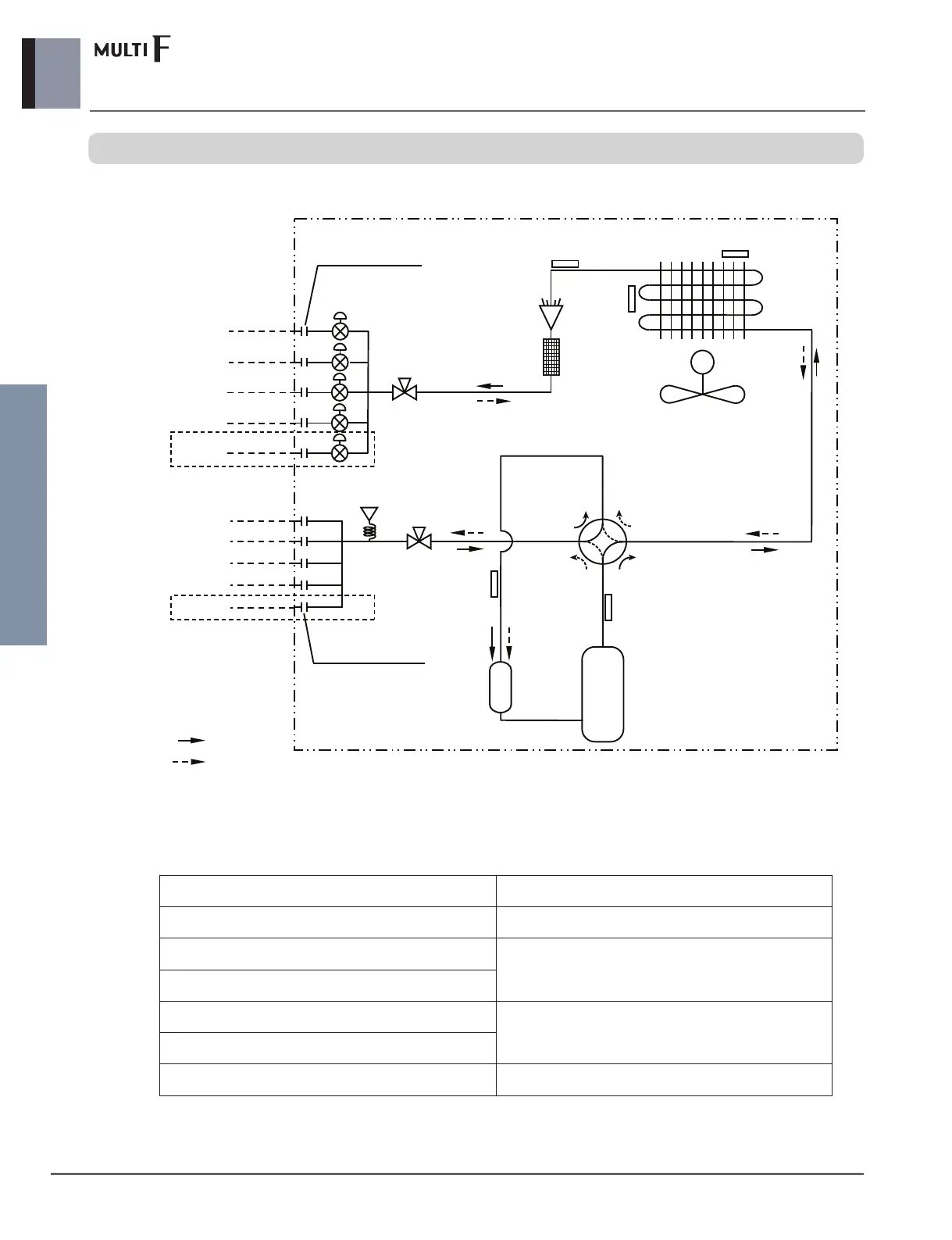

1. Multiple piping type MULTI F
24 _
Heat Pump
60Hz/R410A
Part 2 Product data_Outdoor units
Models : A5UW30GFA0
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Accumulator
Compressor
Electronic
Expansion
Valve
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø 6.35
Flare Connection
Ø9.52
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
ROOM C
ROOM D
ROOM E
Main SVC V/V
ROOM C
ROOM D
ROOM E
Main SVC V/V
Pressure
Sensor
30kBtu/h
Model only
30kBtu/h
Model only
Description PCB Connector
Condensing temperature Thermistor CN_TH4
Condenser out temperature Thermistor
CN_TH2
Inlet air temperature Thermistor
Discharge temperature Thermistor
CN_TH3
Suction temperature Thermistor
Pressure Sensor CN_TH1
