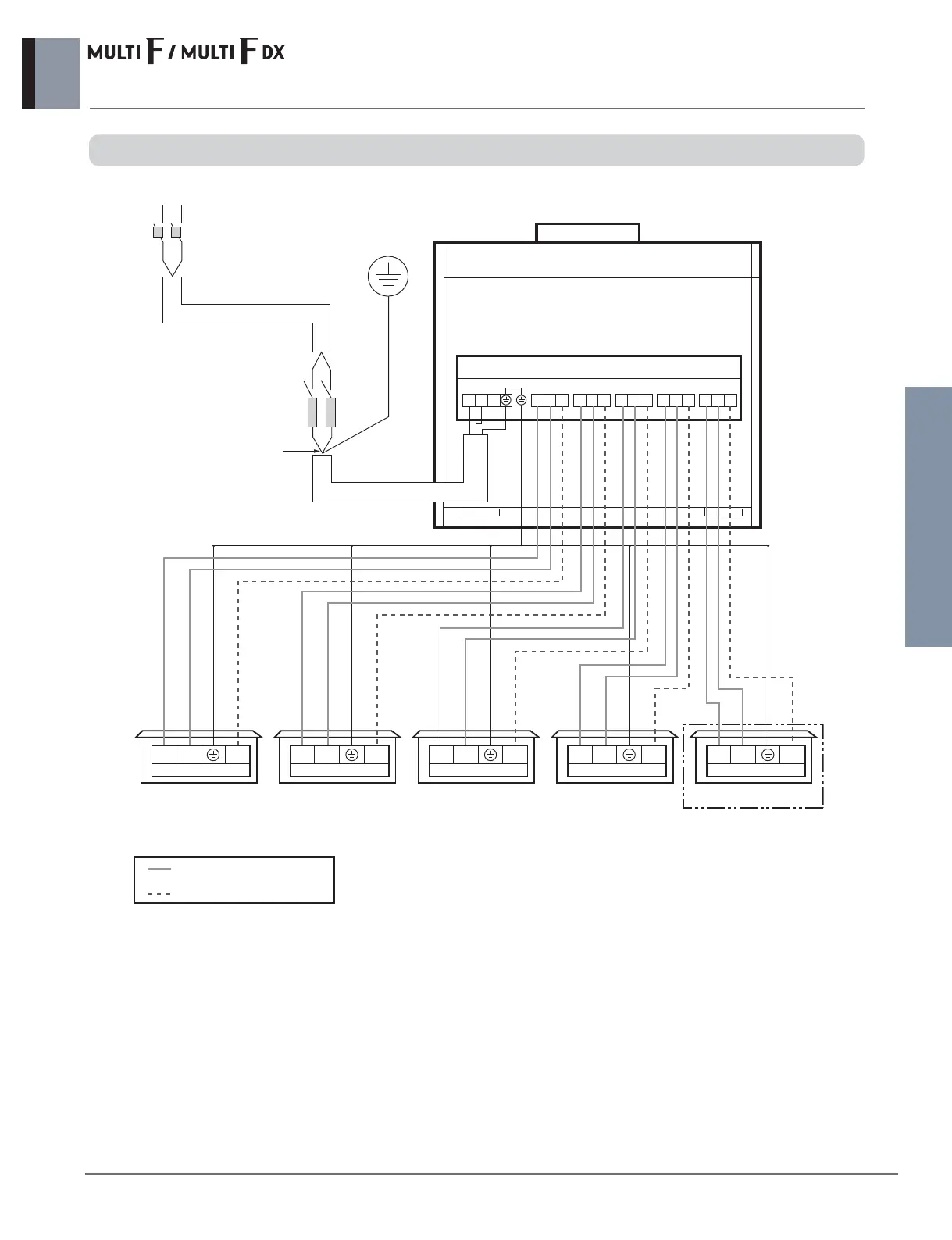

1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
Notes:
1. All wirings, components and materials to be procured on the site should be according to the standard
2. Use copper conductor only
3. Install circuit breaker for safety
4. Unit should be grounded in compliance with the applicable local and national codes
5. Wiring cable size must comply with the applicable local and national code.
Outdoor unit
Terminal Block outdoor
L
L
N
N
G
Power supply
Main switch
Circuit breaker
Fuse
Power cable
(Including earth)
COMMUNICATION LINE
POWER SUPPLY CABLE
1(L) 2(N)
Terminal block indoor
3 1(L) 2(N)
Terminal block indoor
3 1(L) 2(N)
Terminal block indoor
3 1(L) 2(N)
Terminal block indoor
3 1(L) 2(N)
Terminal block indoor
3
1(L) 2(N) 1(L) 2(N) 3(A) 1(L) 2(N) 3(B) 1(L) 2(N) 3(C) 1(L) 2(N) 3(D) 1(L) 2(N) 3(E)
A5UW model only
Models : A4UW/A5UW
