2. Distributor type MULTI F DX (1 phase)

Part 2 Product data_Outdoor units

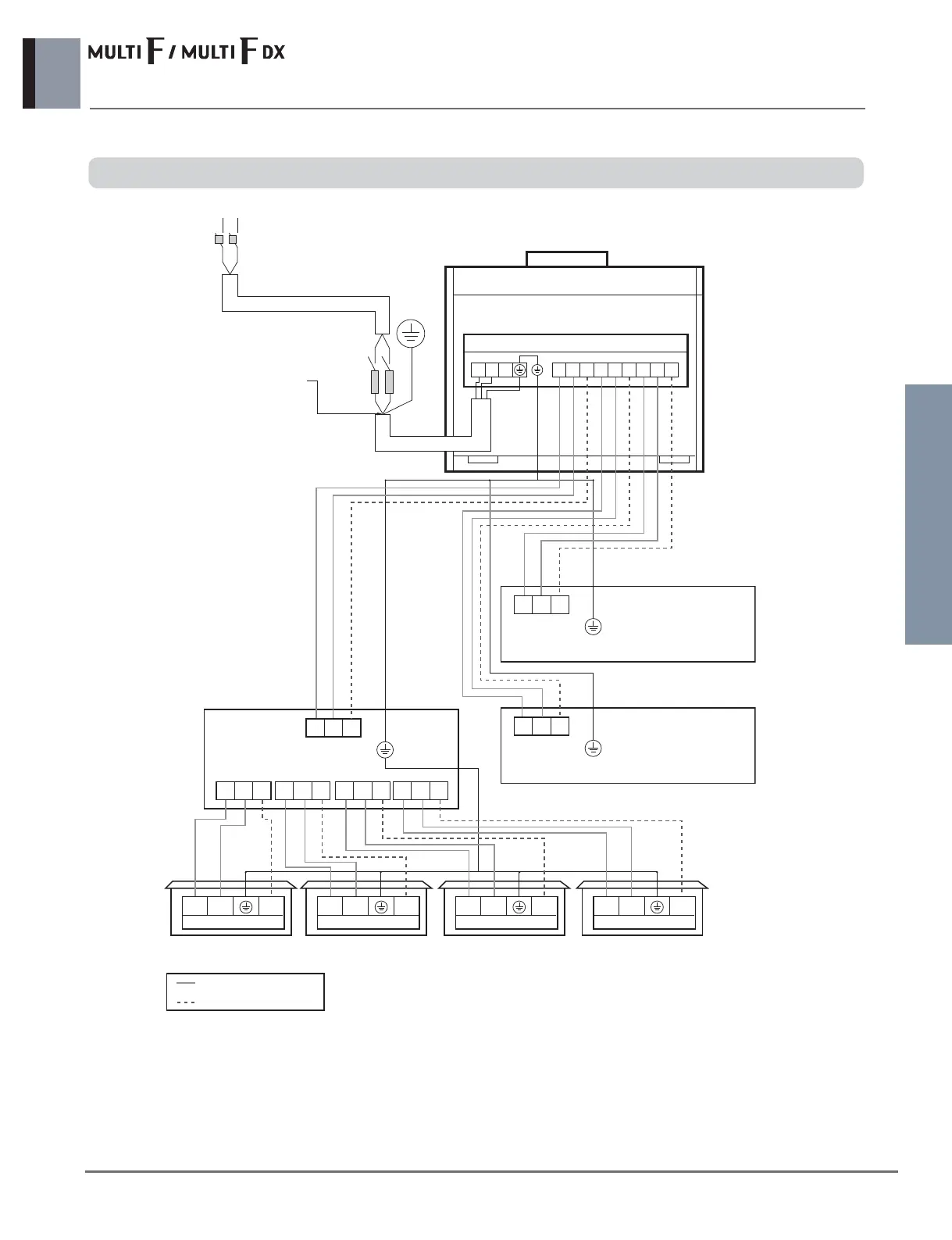

2.12 Field wiring diagram

Models : A7UW/A8UW/A9UW

Notes:

1. All wiring, component and materials to be procured on the site should be according to the standard

2. Use copper conductor only

3. Install circuit breaker for safety

4. Unit should be grounded in compliance with the applicable local and national codes

5. Wiring cable size must comply with the applicable local and national code.

1(L) 2(N) S

1(L) 2(N) S 1(L) 2(N) S 1(L) 2(N) S 1(L) 2(N) S

1(L) 2(N)

Terminal block indoor

3 1(L) 2(N)

Terminal block indoor

Terminal Block outdoor

Power supply

Outdoor unit

Main switch

Circuit breaker

Power cable

(Including earth)

Distributor box (A)

Fuse

1(L) 2(N) S

Distributor box (C)

❈ Same Wiring with Distributor Box (A)

1(L) 2(N) S

Distributor box (B)

1(L) 2(N)

Terminal block indoor

3 1(L) 2(N)

Terminal block indoor

COMMUNICATION LINE

POWER SUPPLY CABLE

1(L) 2(N) 1(L) 2(N) 3(A) 1(L) 2(N) 3(B) 1(L) 2(N) 3(C)
