3. Installation of outdoor unit
45 _
Heat pump
50Hz/R410A
Part 3 Design and installation

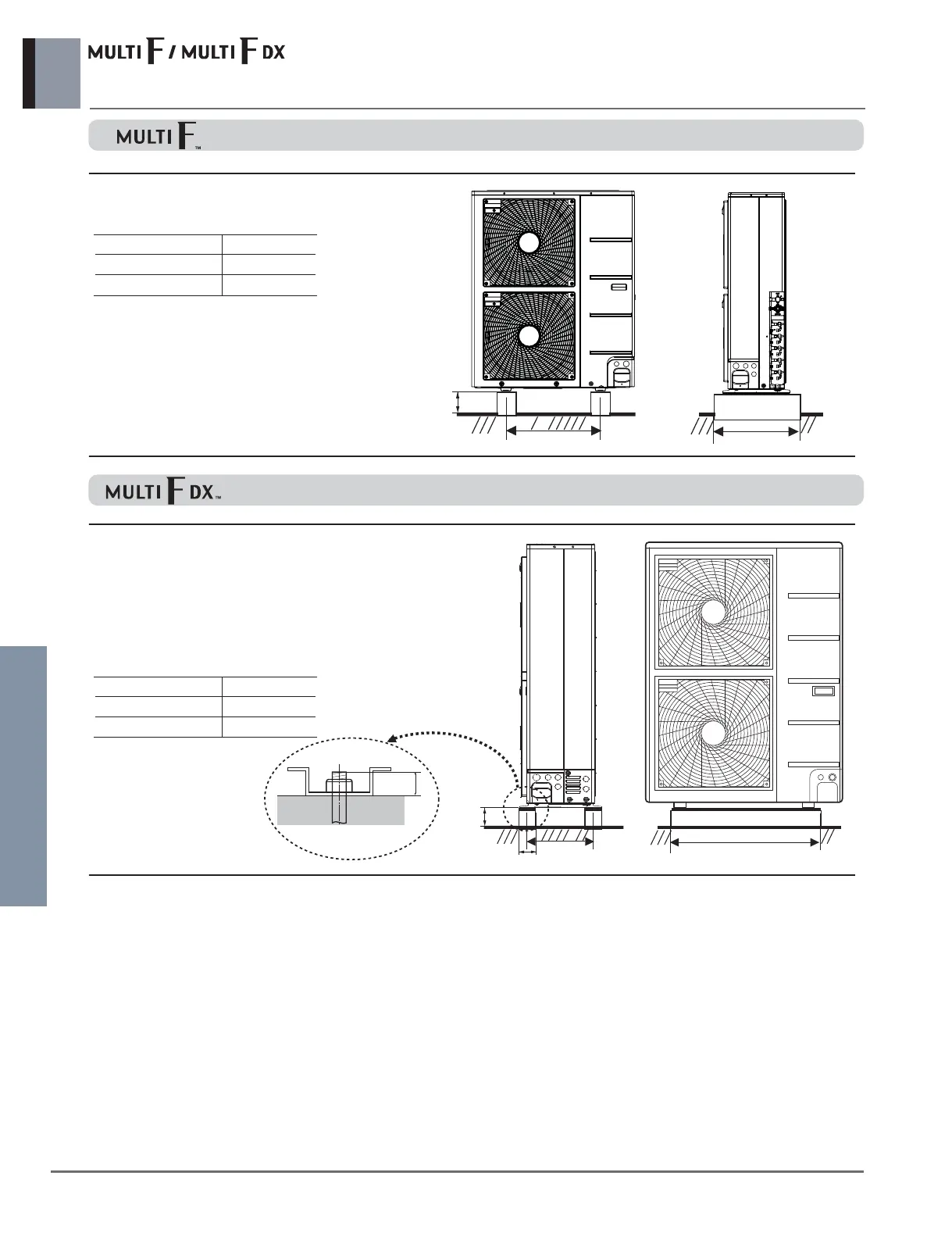

A5UW40GFA0 [MU5M40 UO2]
<Basic intensity>
Bolt Factor M10-J type
Concrete height 200mm or more
Bolt inserted depth 70mm or more
200mm
or more
620mm
460mm or more
200mm
or more
200m
m
400mm
620mm or more
20
Diagram of lower
surface
A7UW40GFA0 [FM40AH UO2]
A8UW48GFA0 [FM48AH U32]
A9UW56GFA0 [FM56AH U32]
A7UW42LFA0 [FM41AH U32]
A8UW48LFA0 [FM49AH U32]
A9UW56LFA0 [FM57AH U32]
<Basic intensity>
Bolt Factor M10-J type
Concrete height 200mm or more
Bolt inserted depth 70mm or more
