LG MULTI F A5UW40GFA0 User Manual

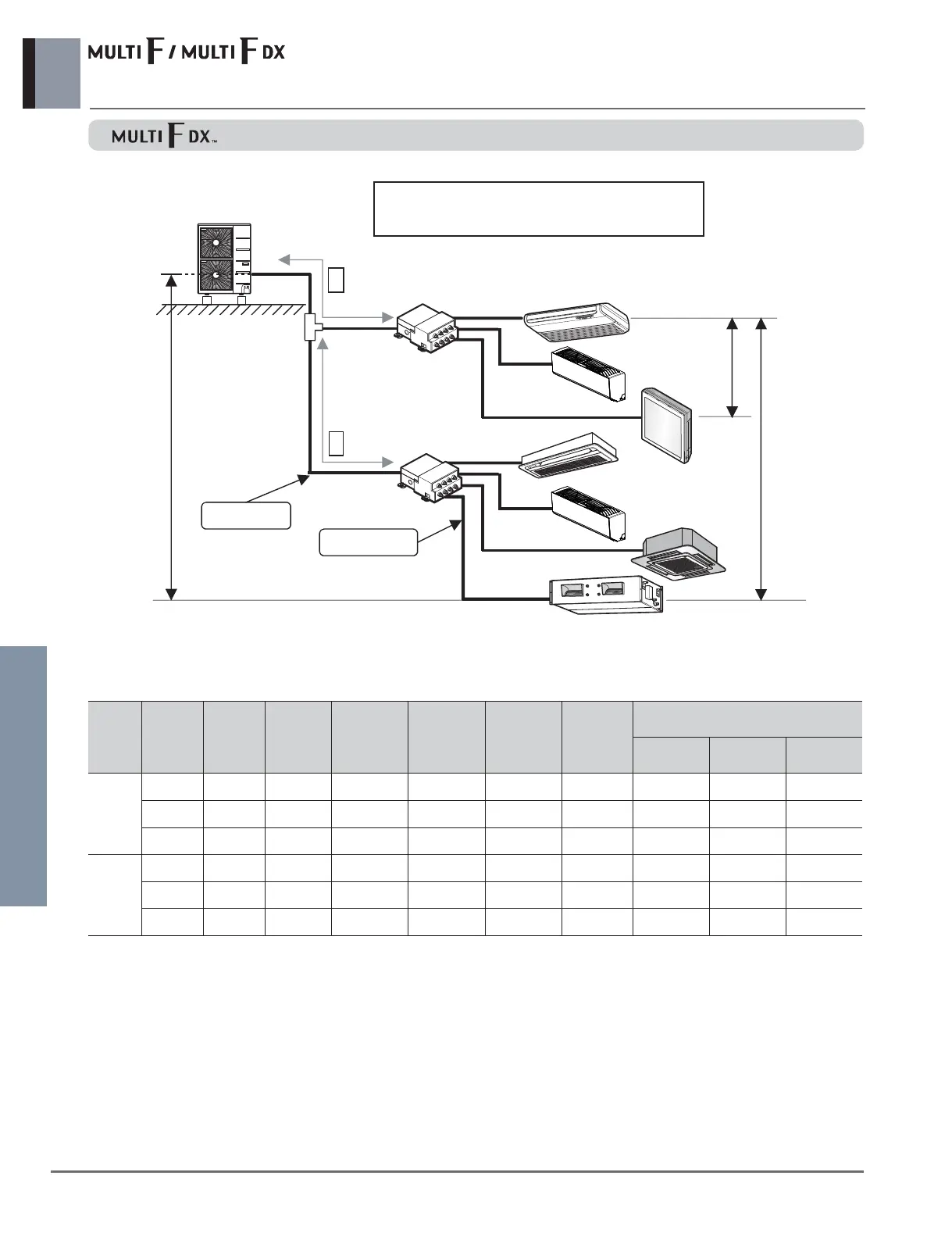

3. Installation of outdoor unit
53 _ Heat pump 50Hz/R410A
Part 3 Design and installation
L
7
L
1
L
2
L
3
L
4
L
5
L
6
A
h2
B
h3
Main piping
Branch piping
R
Installation of the outdoor unit is at higher
elevation than the indoor units.
h1
BD unit
BD unit
[Unit : m]
Phase
Capacity
(kBtu/h)
Total
Length
Standard
Main Pipe
Length
(A+B)
Max. Main
Pipe Length
(A+B)
Total Branch
Pipe Length
(L1+…+L7)
Standard
Branch Pipe
Length
(L1,L2…,L7)
Max.
Branch
Pipe Length
Max. Elevation
ODU ~ IDU(h1) IDU ~ IDU (h2) BD~IDU(h3)
1Ø
40 100 5 50 50 5 15 30 15
10
48 135 5 55 80 5 15 30 15
10
56 145 5 55 90 5 15 30 15
10
3Ø
42 125 5 55 70 5 15 30 15
10
48 135 5 55 80 5 15 30 15 10
56 145 5 55 90 5 15 30 15
10
