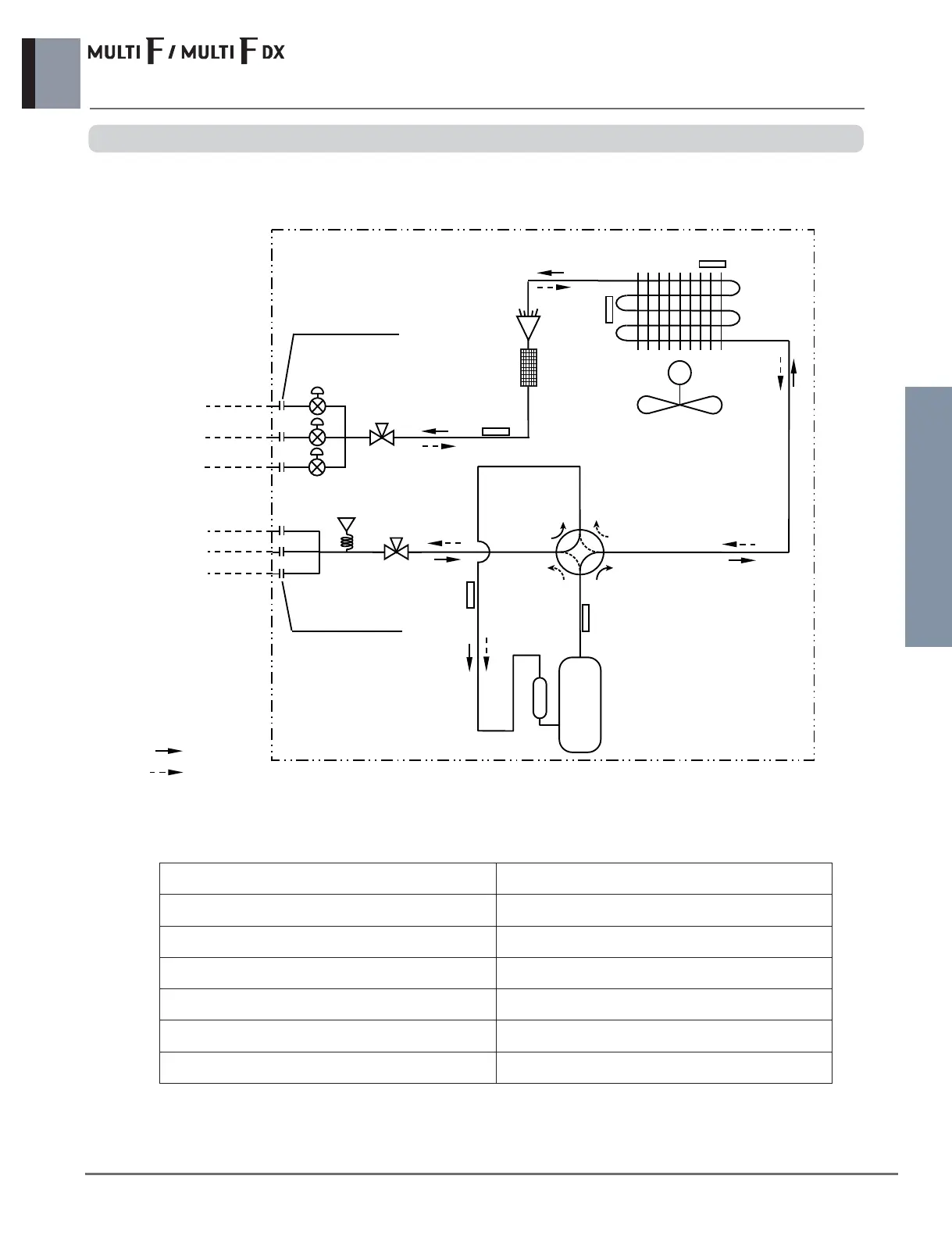

1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
Models : A3UW18GFA0 [MU3M19 UE2], A3UW21GFA0 [MU3M21 UE2]
M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Compressor
Electronic
Expansion
Valve
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø6.35
Flare Connection
Ø9.52
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
ROOM C
Main SVC V/V
ROOM C
Main SVC V/V
Pressure
Sensor
Description PCB Connector
Condenser out temperature Thermistor CN_C/PIPE
Condensing temperature Thermistor CN_MID
Inlet air temperature Thermistor CN_AIR
Discharge temperature Thermistor CN_DISCHARGE
Suction temperature Thermistor CN_SUCTION
Pressure Sensor CN_H/PRESS
