LG MULTI F A5UW40GFA0 User Manual

Heat Pump 50Hz/R410A _ 43

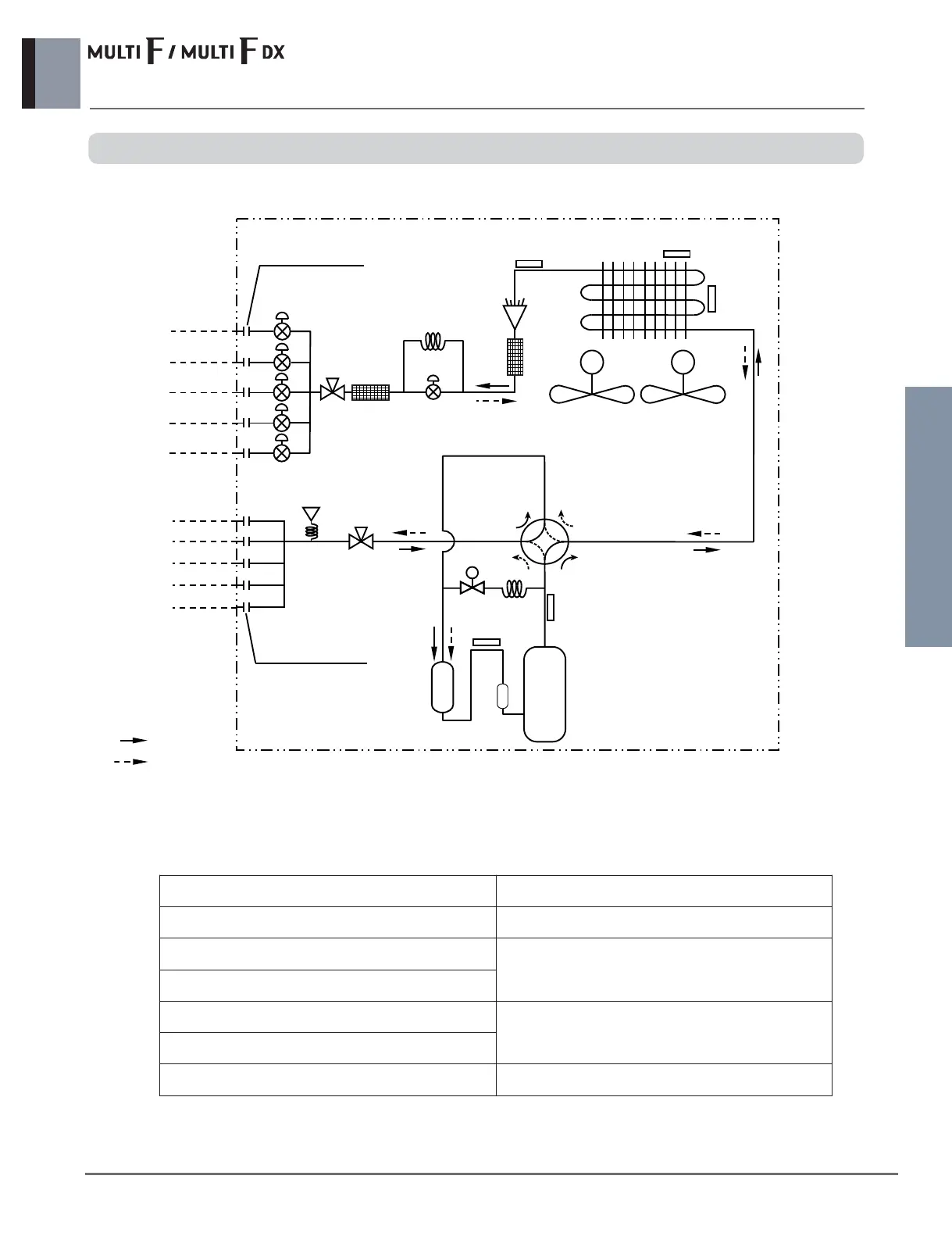

1. Multiple piping type MULTI F
Part 2 Product data_Outdoor units
Models : A5UW40GFA0 [MU5M40 UO2]
M M
Discharge
Temperature
Thermistor
Suction
Temperature
Thermistor
Inverter
Accumulator
Compressor
Electronic
Expansion
Valve
Condenser Out
Temperature
Thermistor
Inlet Air
Temperature
Thermistor
Outdoor Unit
Ø 6.35
Flare Connection
Ø9.52
Flare Connection
Condensing
Temperature
Thermistor
ROOM A
ROOM A
ROOM B
: Cooling
: Heating
ROOM B
ROOM C
ROOM D
ROOM E
Main
SVC V/V
ROOM C
ROOM D
ROOM E
Main SVC V/V
Pressure
Sensor
Electronic
Expansion
Valve
S
Description PCB Connector
Condensing temperature Thermistor CN_TH3
Condenser out temperature Thermistor
CN_TH1
Inlet air temperature Thermistor
Discharge temperature Thermistor
CN_TH2
Suction temperature Thermistor
Pressure Sensor CN_P/SENSOR(H)

LG MULTI F A5UW40GFA0 Specifications

General

Brand	LG
Model	MULTI F A5UW40GFA0
Category	Air Conditioner
Language	English
