GENERAL INSTALLATION GUIDELINES
WARNING
• Mounting hardware must be securely installed to prevent the chas-
sis falling from its installation location. There is risk of personnel
injury or property damage from falling equipment.
• When choosing a location for the wall mount plate, be sure to take
into consideration routing of wiring for power outlets within the wall.
Touching wiring can cause serious bodily injury or death.
• Installation work must be performed by trained personnel and in
accordance with all local or other applicable codes. There is risk of
injury to personnel from incorrect installation.
Note:
• Ensure the unit is properly installed. Incorrectly installed units can
result in degraded performance or an inoperative unit / system.
• Use a level indicator to ensure the installation plate and chassis
are installed on a level plane.
• If the unit is installed near a body of water, certain components
are at risk of being corroded. Appropriate anti-corrosion methods
should be taken for the unit and all components.
Install Wall-Mounted IDU Chassis
Mounting the Installation Plate
The mounting wall should be strong and solid enough to protect the
unit from vibration. It should securely hold the installation plate and
the weight of the chassis.
1. Determine the installation location.
2. Refer to Figure 3 or Figure 4 for the appropriate mounting
diagram.
3. Mount the installation plate on the wall using the Type “A” screws.
If mounting the unit on concrete, consider using anchor bolts.
Use a level to ensure the plate is level.
4. Always mount the installation plate horizontally. Measure the wall
and mark the centerline using thread and a level.

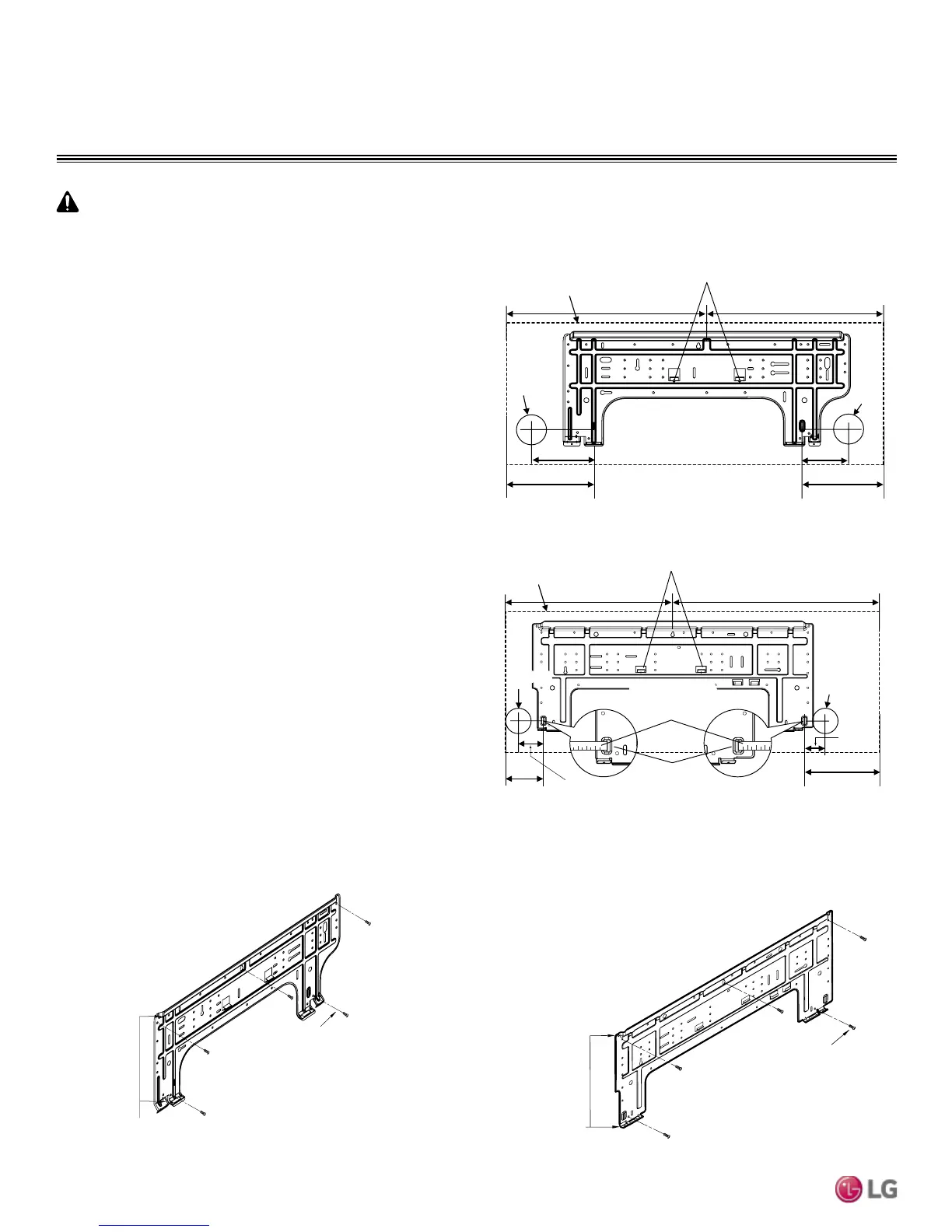

Figure 3: Installation Plate for LAN090HSV4,
LAN120HSV4 Units.
Figure 4: Installation Plate for LAN180HSV4 Units.
Figure 5: Installation Plates Attaching Screw Placement.
Ø2-9/16
5-3/16
3-11/16
Right rear piping
Left rear piping
Installation Plate
Place a level on raised tab
Unit Outline
8-1/2
6-15/16
Unit: Inch
17-7/16 17-7/16
Ø2-9/16
Unit : Inch
Ø2-9/16
(65)
Right rear piping
Left rear piping
Measuring Tape
Measuring Tape
Hanger
Place a level on raised tab
Unit Outline
18-1/8 22-7/16
8-1/8
4-1/8
2-11/16
2-3/16
Ø2-9/16
Installation Plate
Installation Plate
Chassis
Hook
Type "A" Screws
Installation Plate
Chassis
Hook
Type "A" Screws
Installation Plate Screws - LAN090HSV4, LAN120HSV4 Installation Plate Screws - LAN180HSV4
