Installation Manual
25
Installation
ENGLISH

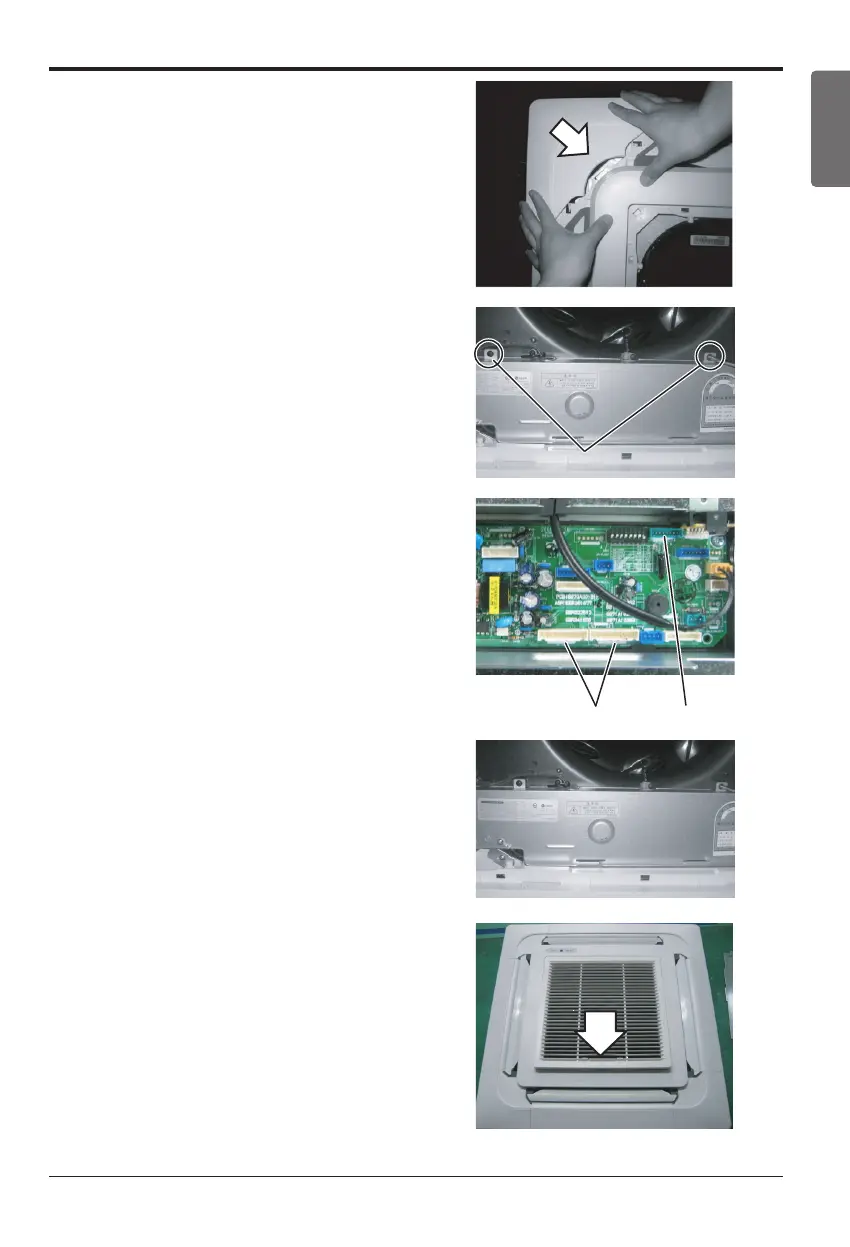

5. Fit the corner covers.
6. Open two screws of control panel cover
.
7. Connect one display connector and two
vane control connectors of front panel to
indoor unit PCB.
The position marking on PCB is as:
Display connector : CN-DISPLA
Y
V
ane control connector: CN-V
ANE 1,2
8. Close the cover for control box.
9. Install the air inlet grille and Filter on the
panel.
Screw
CN-VANE 1,2
CN-DISPLA
Y
330
332
