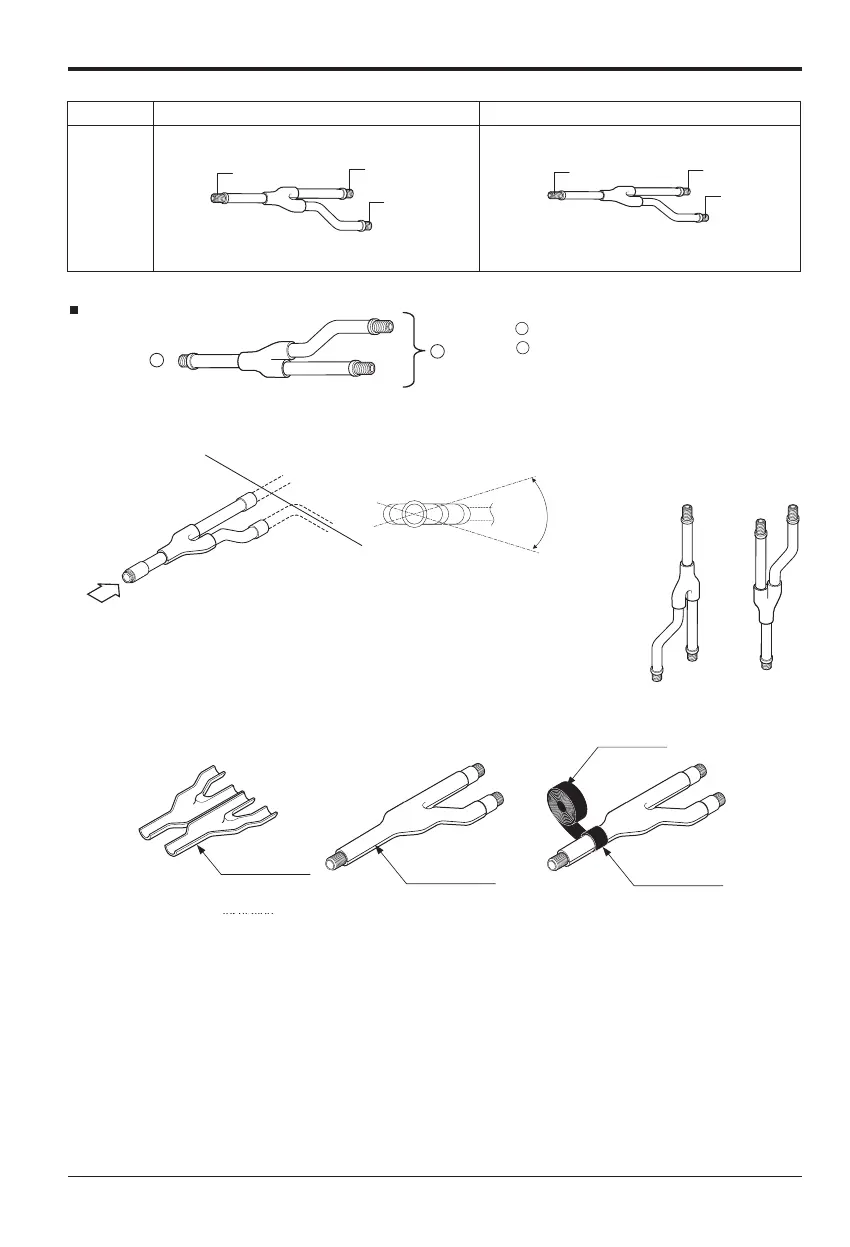

32 Multi Air Conditioner
Flaring Work and Connection of Piping
Facing upwards
Viewed from point A
in direction of arrow
Horizontal
plane
Gas PipeModel
PMBL5620
Ø19.05
Ø19.05
Liquid Pipe
Within +/- 10
A
Ø9.52
Ø9.52
Ø9.52
Ø19.05
Y branch
A
B
To Outdoor Unit
[unit:mm]
To BD Unit
A
B
Liquid and gas
pipe joints
Insulator
(included with kit)
Insulator for
field piping
Tape
(field supply)
Liquid and gas
pipe joints
Insulation
Branch
Ensure that the branch pipes are attached horizontally or vertically (see the diagram
below.)
• Branch pipe should be insulated with the insulator in each kit.
