LG Multi V 5 Installation Manual

11
Installation
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ZPLT1A52A: Drain pan heater for Multi V 5 8.0 - 20.0 Ton ODU
208-230V/ 60Hz/ 1Ø, 599W

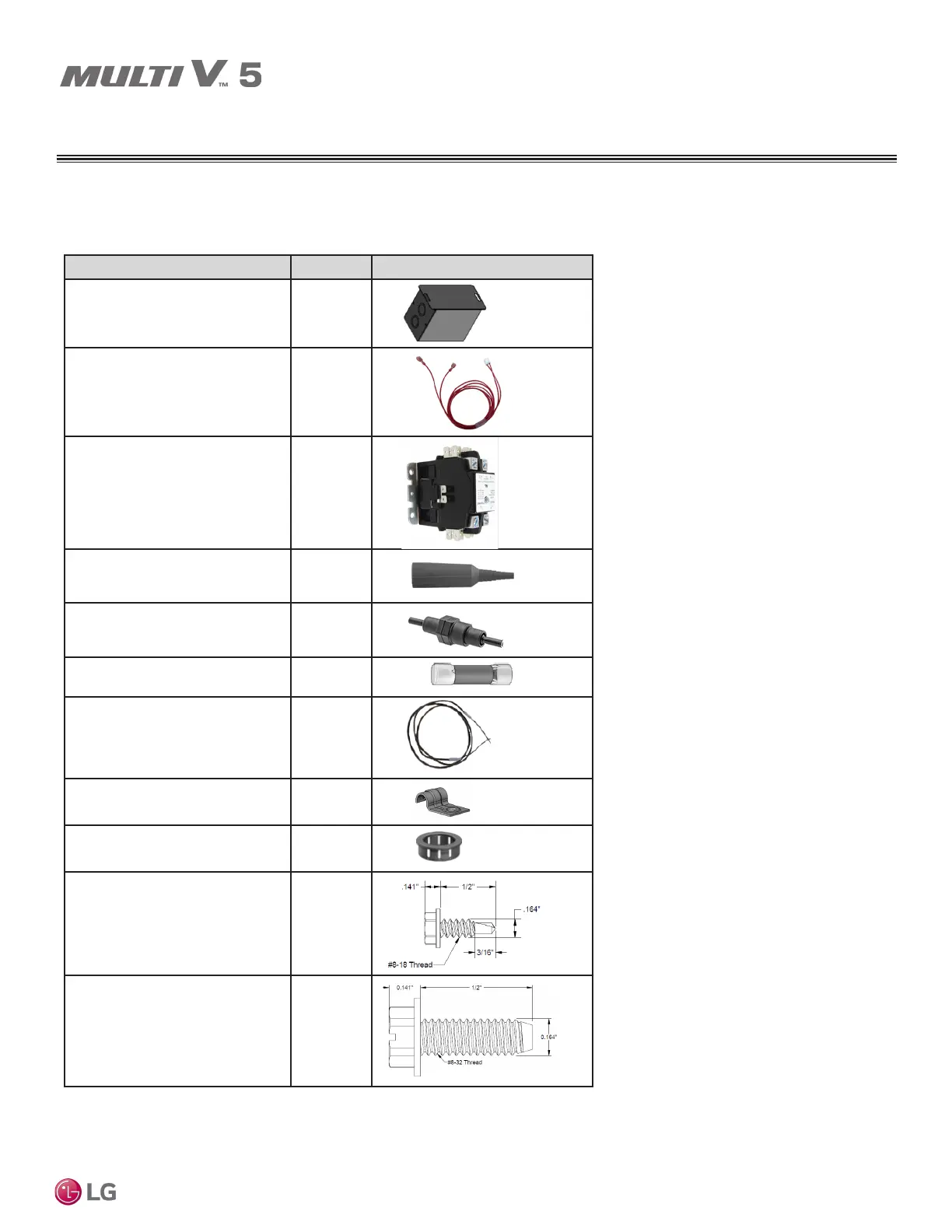

Part Quantity Image
Control Box Assembly
1
Control Signal Harness
1
Heater Contactor
1
Rubber Fuseholder covers
4
Incoming Power Fuseholder
2
Incoming Power Fuse (KTK-3)
2
Tubular Heater Element 599W (149
inches) (CSA Listed)
1
1/4” Attachment Clamps
10
Control Box Grommets
2
Self-drilling Screws
12
Slot Screws 2
DRAIN PAN HEATER COMPONENTS

LG Multi V 5 Specifications

General

Type	VRF (Variable Refrigerant Flow)
Refrigerant	R410A
Compressor Type	Inverter Scroll Compressor
Outdoor Unit Fan Type	Axial Fan
Cooling Capacity	22.4 kW to 270 kW
Energy Efficiency	High
Operating Range	Cooling: -5°C to 48°C
Power Supply	380-415V, 50/60Hz
Heat Exchanger Type	Microchannel
Control Type	Centralized Control
Indoor Unit Options	Cassette, Wall Mounted, Ducted
Heat Recovery	Available
Warranty	Varies by region (typically 5 years compressor, 1-2 years parts)
