MULTI V 5 Outdoor Unit Drain Pan Heater Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Steps 2 and 3
2. Clean the bottom of the outdoor unit. Verify that it is free from dirt and debris to ensure proper adhesion of the foil tape to drain pan sur-
face.
3. Apply foil tape to the bottom of the ODU as shown below, along the path that the heater element will follow.
• Use only UL181 listed aluminum foil tape.
Do not allow direct contact between the element and the painted drain pan surface.
Apply UL181 listed aluminum foil tape
to bottom of the outdoor unit along the path of heater element.
Prior to applying tape, verify that the surface is free of dirt and debris.
Apply UL181 listed aluminum foil tape
to bottom of the outdoor unit along the path of heater element.
Prior to applying tape, verify that the surface is free of dirt and debris.

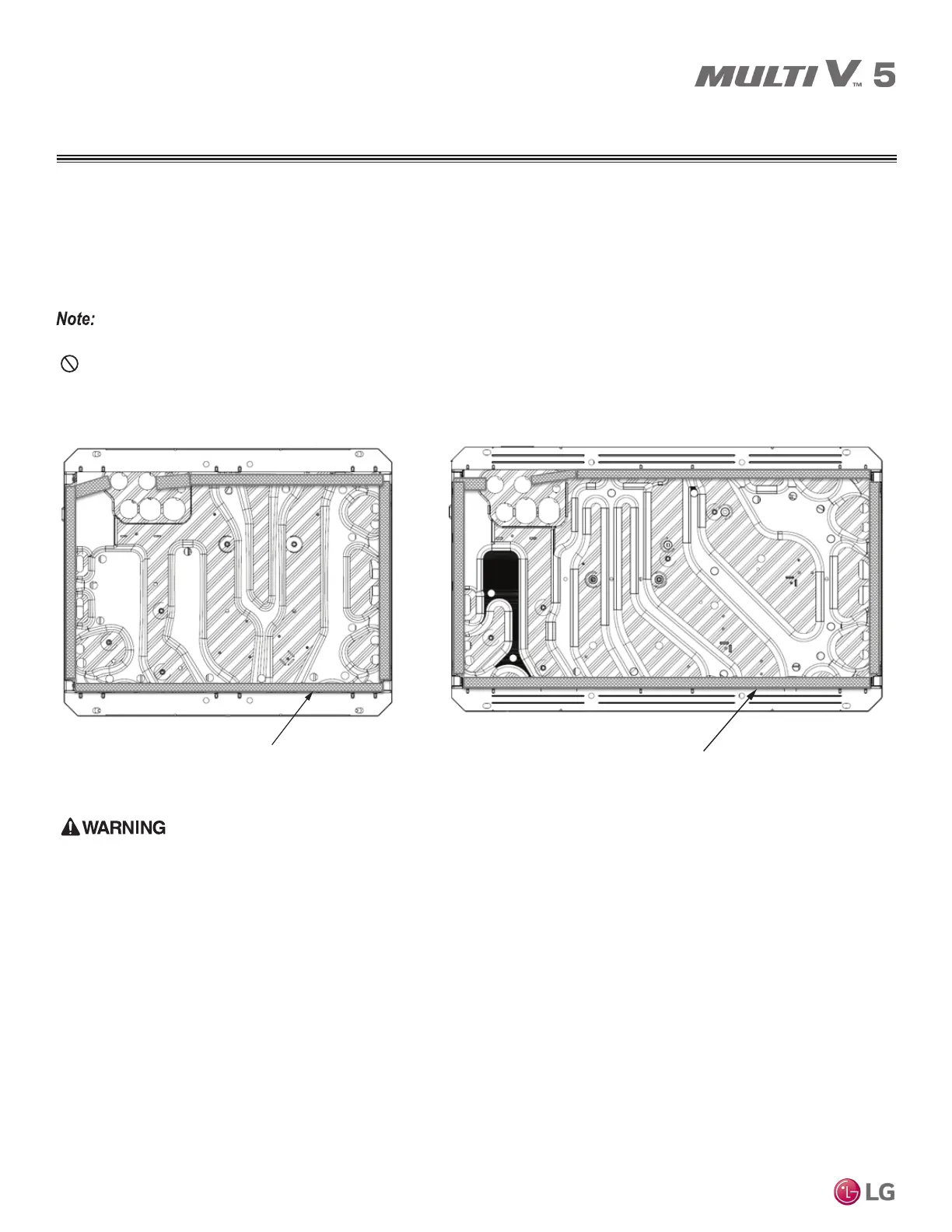

Figure 6: Apply tape to bottom of ODU (6.0Ton). Figure 7: Apply tape to bottom of ODU (8.0 - 20 Ton).
DRAIN PAN HEATER INSTALLATION
Turn off power to outdoor unit before installation.
Electric shock can cause physical injury or death.
Depending on the area of installation, add a Ground Fault Interrupt (GFI) circuit breaking device to prevent potential electric
shock.
Electric shock can cause physical injury or death.
