MULTI V 5 Outdoor Unit Drain Pan Heater Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
DIP-SW01
SSD
SW01C
(Confirm / Automatic
Address Setting Button)
SW01D
(Reset Button)
SW02C
(◄ Backward
Button)
SW03C
(► Forward
Button)
SW04D
(x Cancel
Button)

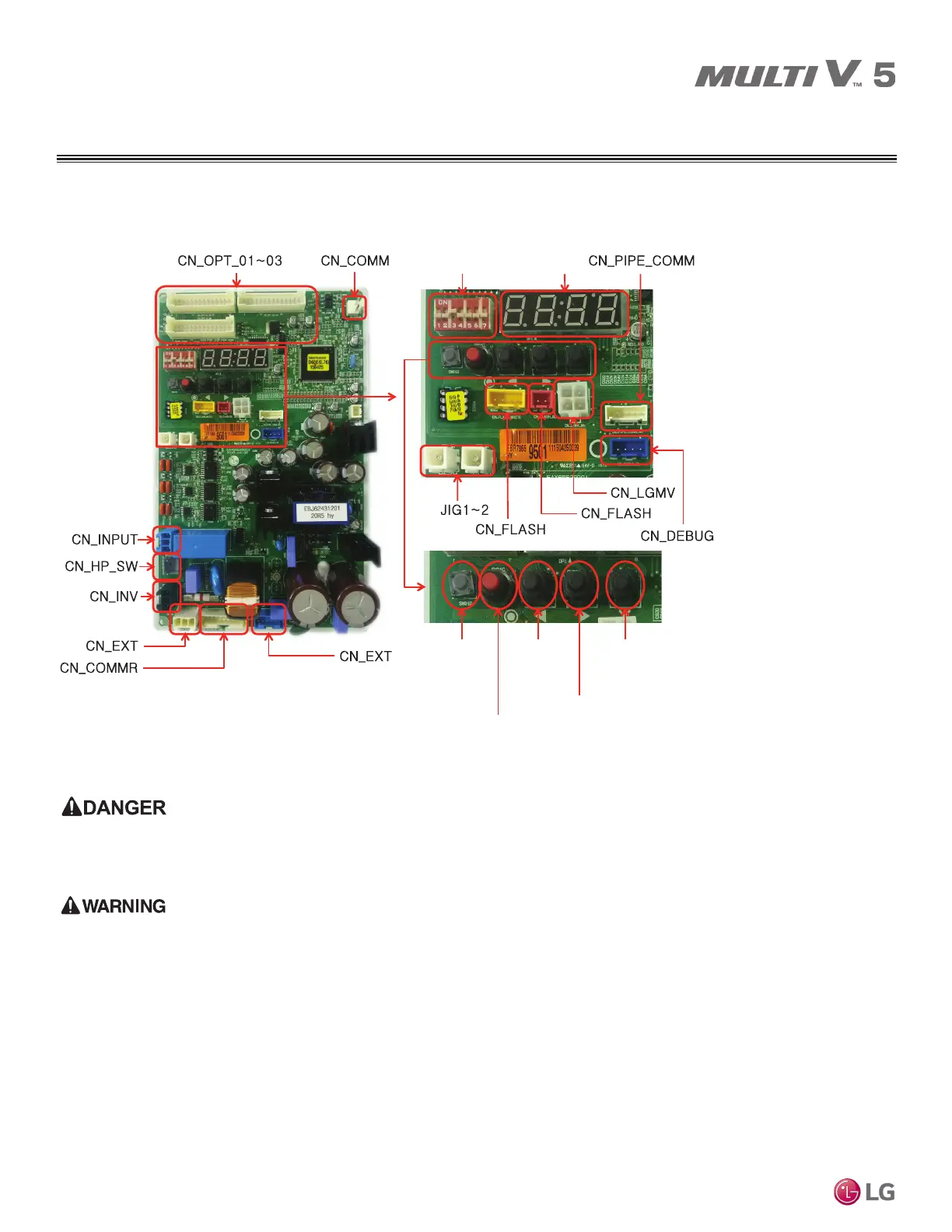

Figure 19: Location of DIP Switches and Setting Buttons on the Multi V 5 Outdoor Unit PCB.
DRAIN PAN HEATER INSTALLATION
Turn off power to outdoor unit before installation.
Electric shock can cause physical injury or death.
Verify the wires are routed such that they do not get pinched, placed in tension or rub against any sharp, metal edge prior to
securing.
Damaged wiring runs the risk of re, electric shock, and physical injury or death.
Step 8, continued.

LG Multi V 5 Specifications

General

Type	VRF (Variable Refrigerant Flow)
Refrigerant	R410A
Compressor Type	Inverter Scroll Compressor
Outdoor Unit Fan Type	Axial Fan
Cooling Capacity	22.4 kW to 270 kW
Energy Efficiency	High
Operating Range	Cooling: -5°C to 48°C
Power Supply	380-415V, 50/60Hz
Heat Exchanger Type	Microchannel
Control Type	Centralized Control
Indoor Unit Options	Cassette, Wall Mounted, Ducted
Heat Recovery	Available
Warranty	Varies by region (typically 5 years compressor, 1-2 years parts)
