- 5 -

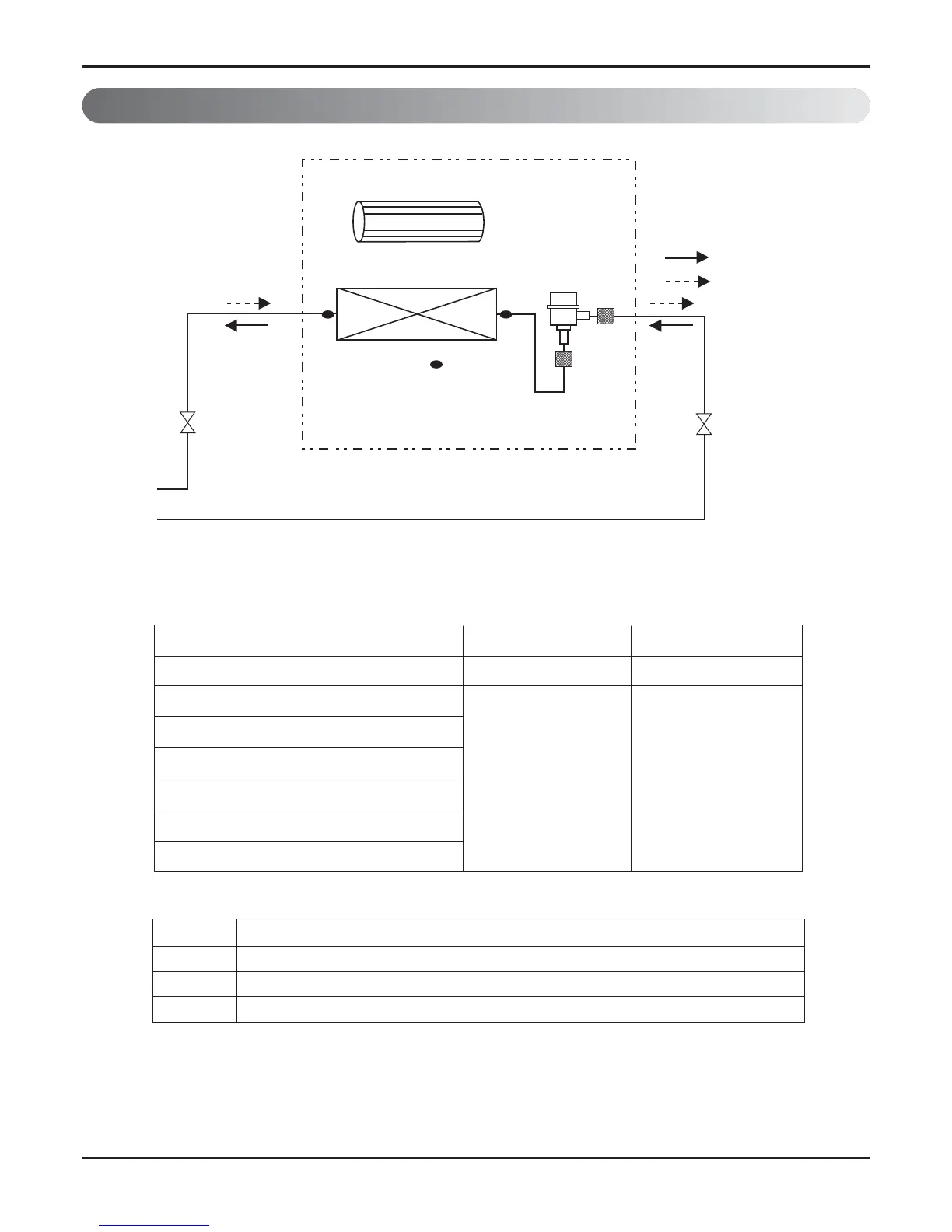

3. Piping Diagrams
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. Piping Diagrams
Heat Exchanger
Th3
Th1
Th2
lndoor unit
EEV
:Heating
:Cooling
Filter
Filter
Sirocco Fan
Refrigerant pipe connection port diameter
Capacity (kBtu/h) GAS LIQUID
18 Ø12.7(1/2) Ø6.35(1/4)
24
30
36 Ø15.88(5/8) Ø9.52(3/8)
42
48
54
[Unit: mm(inch)]
LOC. Description
Th1 Room thermistor
Th2 Pipe in thermistor
Th3 Pipe out thermistor
