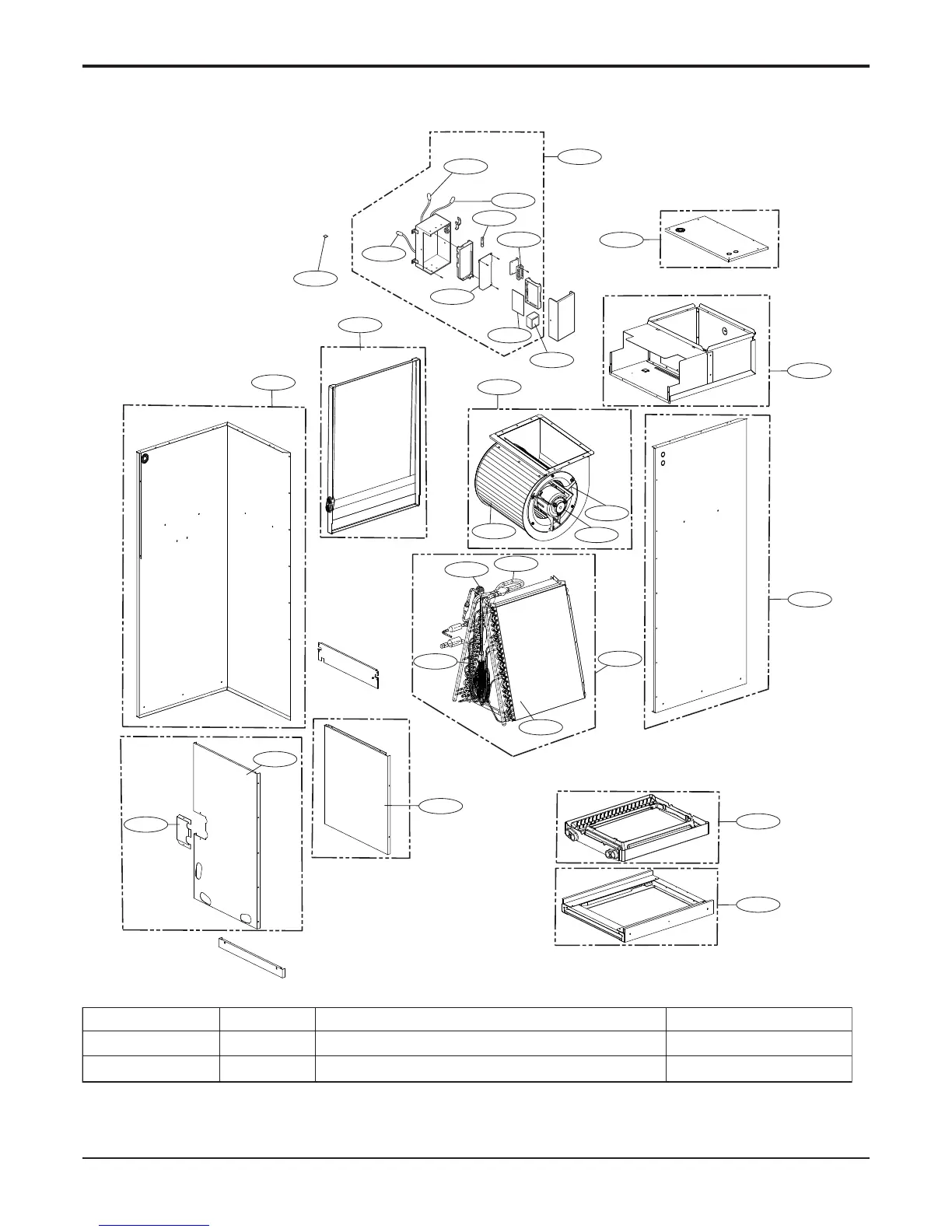

5. Exploded View
NK
354210A
352118
55211G
336610
346810
349600
359012B
354212
147901
137213A
137214
330871
137213B
354210B
268711C
268711B
268711E
249951
W0FZZ
567480B
567480A
567480C
261704
W6640
THERMISTOR 1
THERMISTOR 3
THERMISTOR 2
137211A
137211B
135500
330871
437214
Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.
Please check the correct parts in View RPL(Replacement Part List) on GCSC.
(GCSC Website http://biz.Lgservice.com,)
Thermistor 1 567480A Inlet Air Thermistor Housing Color : Brown
Thermistor 2 567480B Pipe In thermistor Housing Color : White
Thermistor 3 567480C Pipe Out thermistor Housing Color : Red
