Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING
Vertical Air Handling Unit NJ Chassis

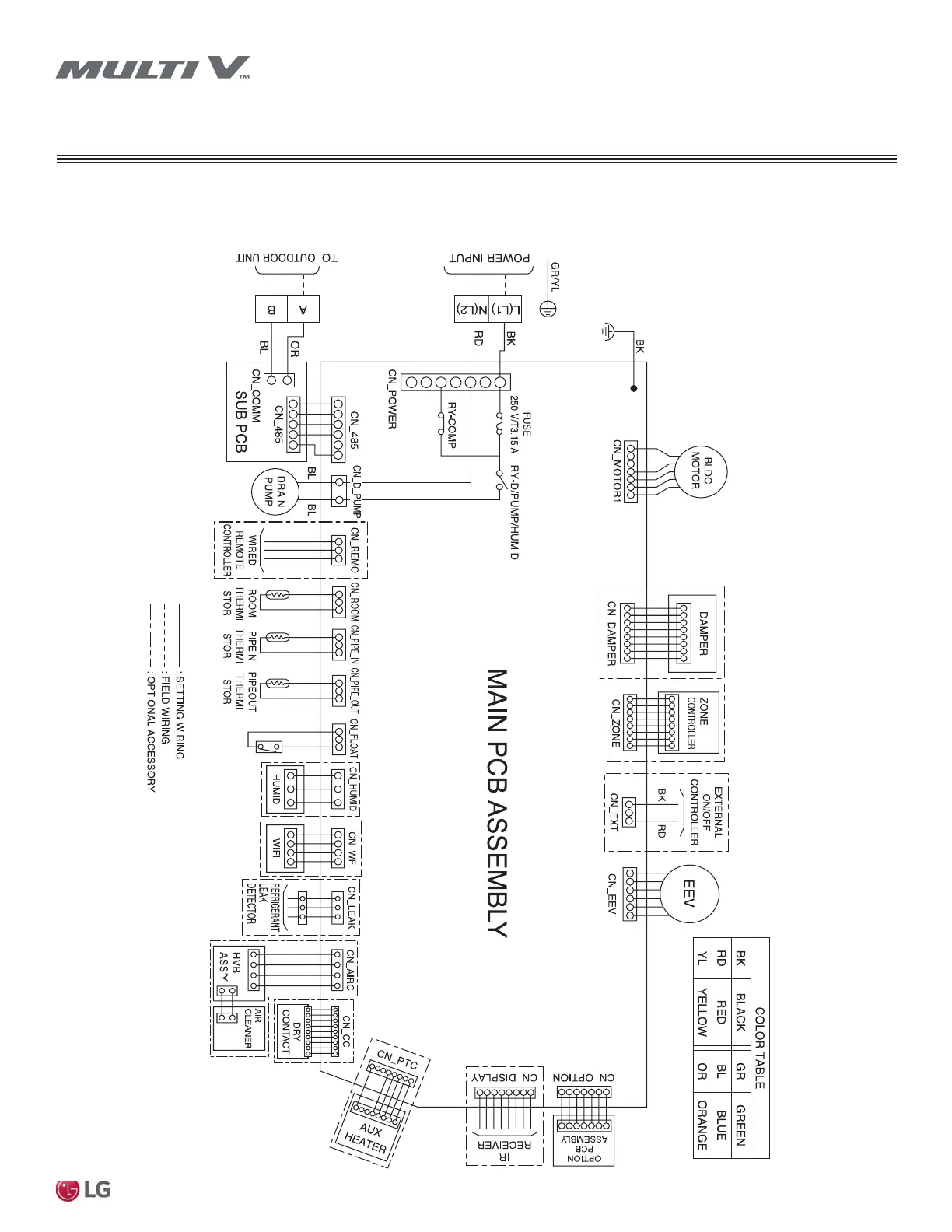

Figure 75: Vertical Air Handling Unit NJ Chassis Wiring Diagram.
Optional Connections
Figure 75 shows the control board for the NJ chassis. Connect optional equipment to the control board as required for your system.
03/2019
To Next Page
