LG MULTI V ARNU543B8A4 User Manual

79
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING
Low-Static Ducted L2/L3 Chassis

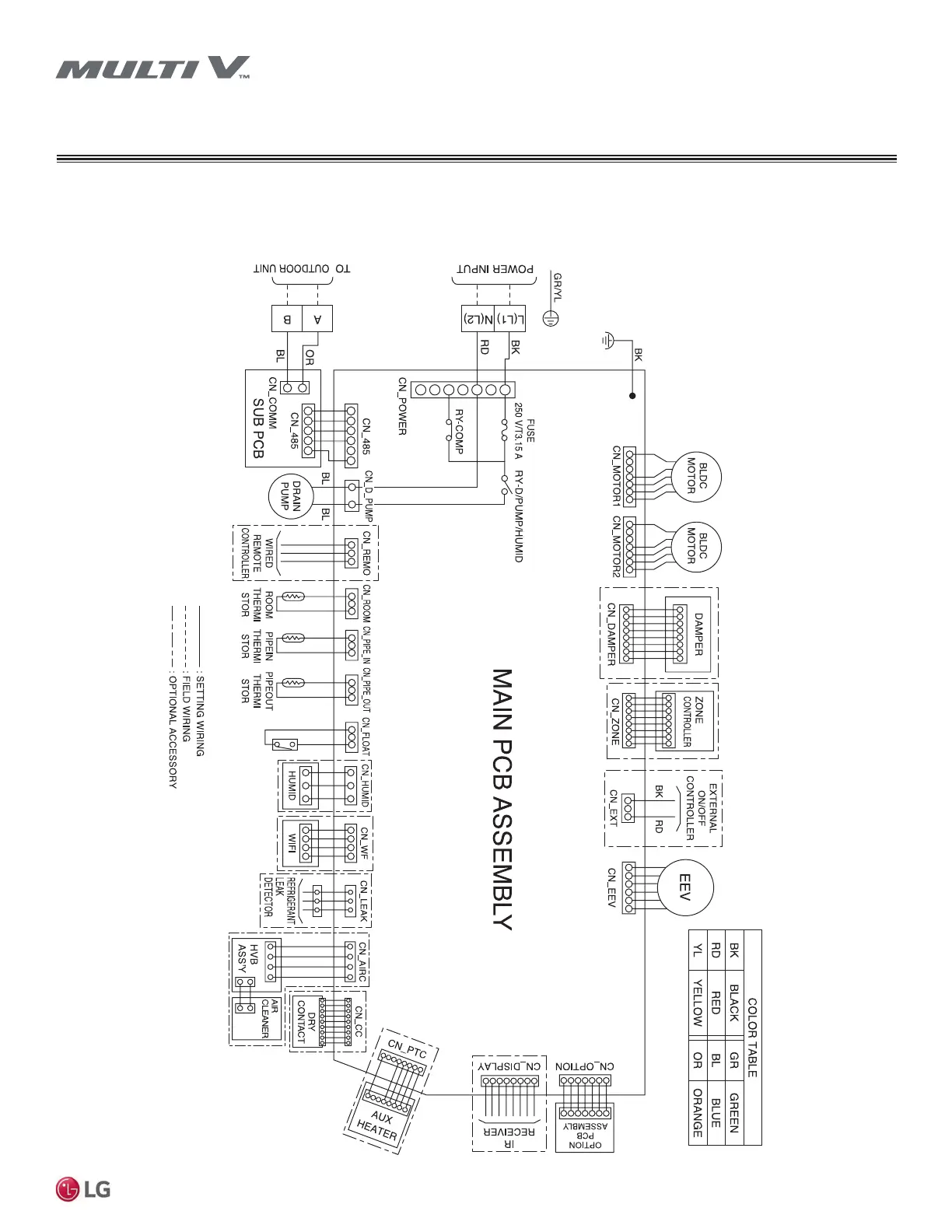

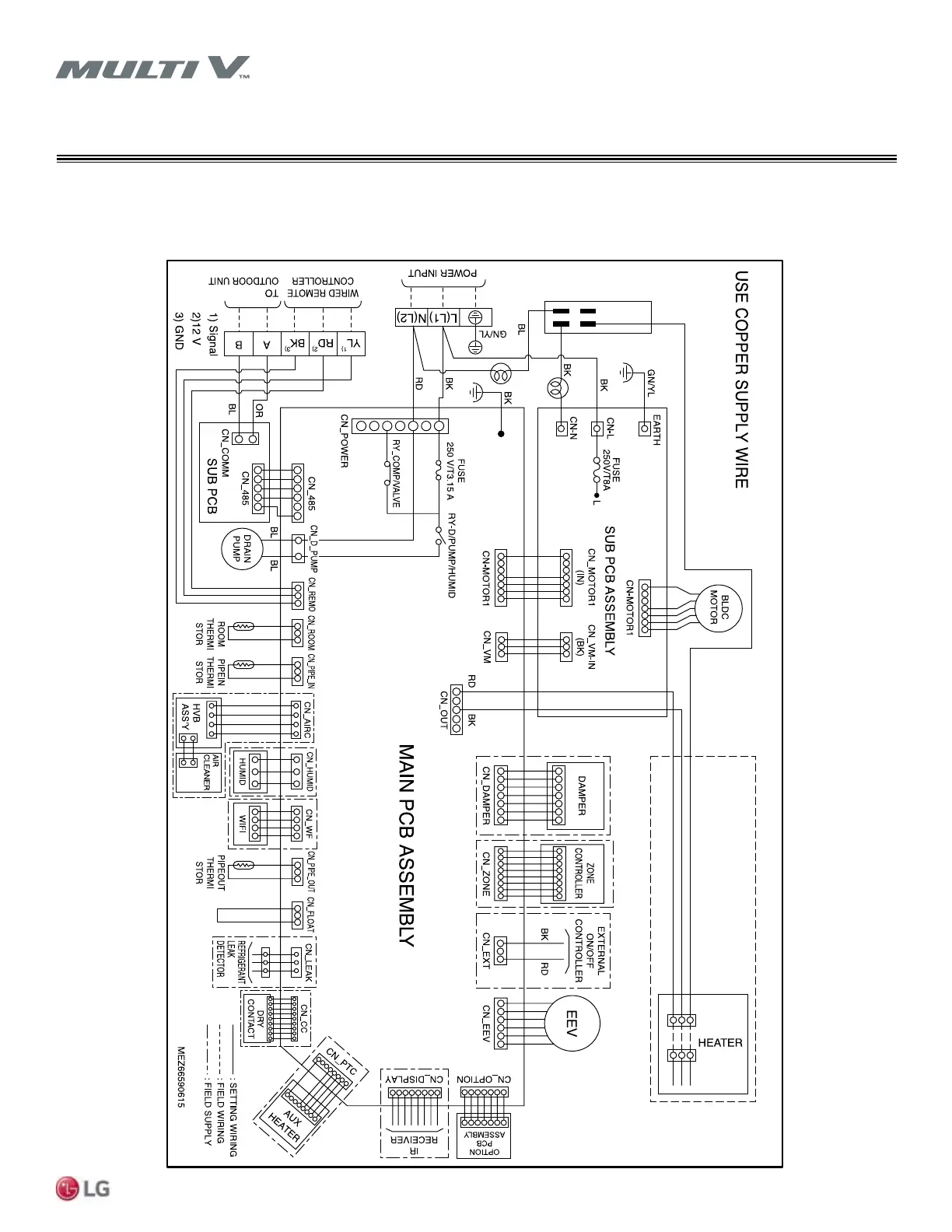

Figure 75: Low-Static Ducted L2/L3 Chassis Wiring Diagram.
Optional Connections
Figure 75 shows the control board for the L2/L3 chassis. Connect optional equipment to the control board as required for your system.
