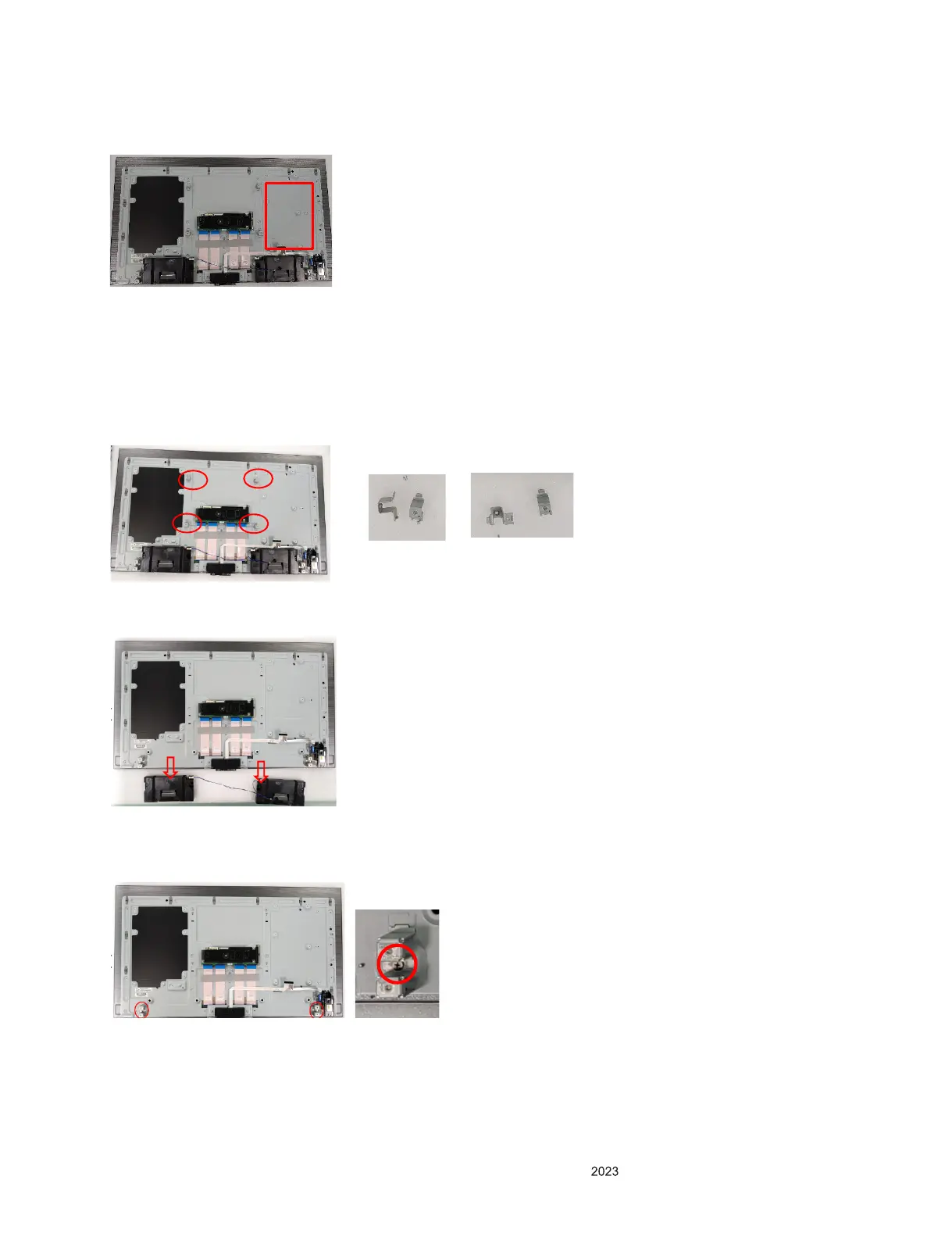

3) Remove the main PCB.
(5) Remove the speaker, Supporter, EMI sponge
- You can remove the display module after removing B/C, stand, power PCB, main PCB,
speaker, WIFI-BT module, IR module, Bottom B/C, Supporter and EMI sponge.
1) Remove screws and separate the VESA supporter(4ea) .(Using the same Screw driver with “+” tip. As before)
2) Remove the 2 speaker units.(Connectors are already pulled-out when we remove the main PCB, so we can
remove them at once without any connectors.)
3) Remove 1 screw and remove the stand supporter.
(Using the same Screw driver with “+” tip. As before)
