LG OLED48C3 Series User Manual

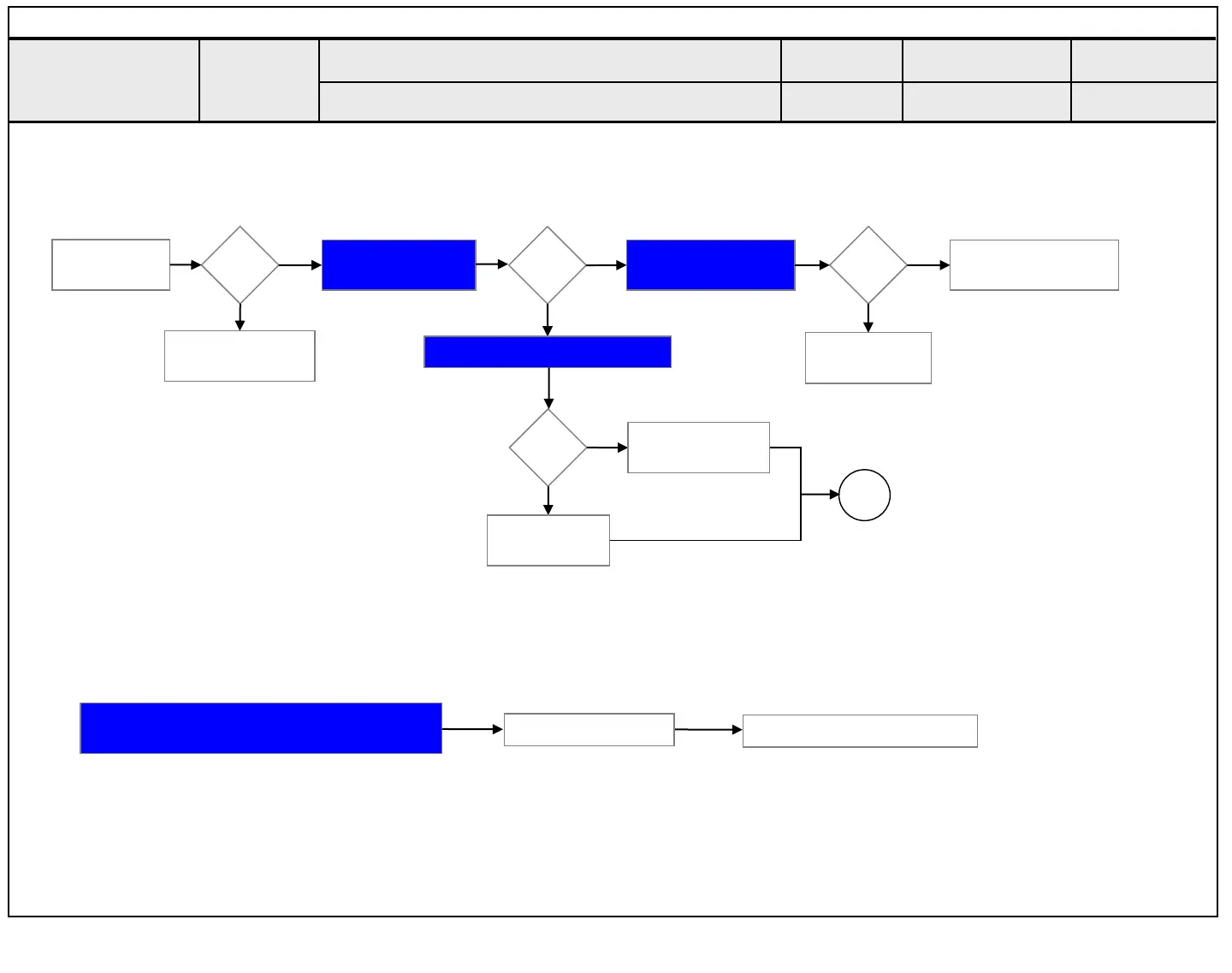

Standard Repair Process
Established
date
Revised date
Error
symptom
Normal
audio
Y
N
Move to No
video/No audio
No video
Normal audio
Check Back Light
On with naked eye
On
Y
N
Check Power Board
20V, 12V etc.
Normal
voltage
Y
N
Replace T-con/Main
Board or module
Repair Power
Board or parts
Check Power Board 20V output
Normal
voltage
Y
Replace Inverter
or module
N
Repair Power
Board or parts
End
Always check & record S/W Version and White
Balance value before replacing the Main Board
Replace Main Board
Re-enter White Balance value
※Precaution
No video/ Normal audio
☞A9☞A1
☞A9
☞A4 & A2
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/D↔ Power B/D, LVDS or EPI Cable, Speaker Cable, IR B/D Cable,,,)
1
A. Video error
Copyright © 2023 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

LG OLED48C3 Series Specifications

General

Screen Size	48 inches
Display Type	OLED
HDR	HDR10, Dolby Vision, HLG
Refresh Rate	120Hz
Smart TV Platform	webOS
HDMI Ports	4 (HDMI 2.1)
Audio	Dolby Atmos
Voice Assistant	Google Assistant, Amazon Alexa
Processor	α9 Gen6 AI Processor 4K
USB Ports	3
Ethernet	Yes
Speaker System	2.2 Channel
Resolution	3840 x 2160 (4K)
Bluetooth	5.0
Wi-Fi	Yes (802.11ac)
Weight	32.6 lbs (without stand)
Dimensions (W x H x D)	42.2 x 24.6 x 1.8 inches (without stand), 42.2 x 26 x 9.3 inches (with stand)
