LG OLED48C3 Series User Manual

D. Function error
Established
date
Revised date
Error
symptom
Remote control & Local switch checking
Y
N

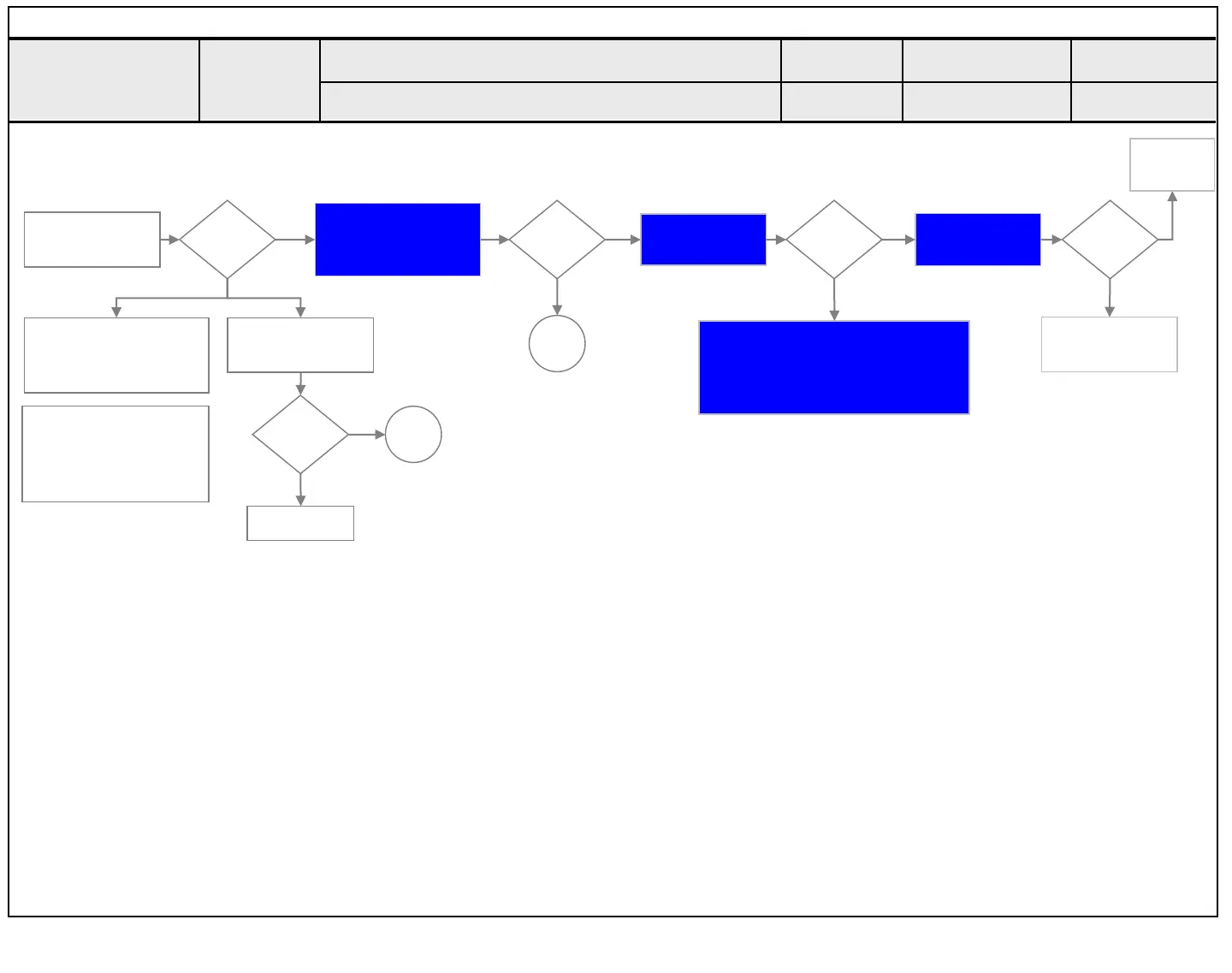

1. Remote control(R/C) operating error
Check R/C itself
Operation
Normal
operating?
Normal
operating?
Y
Close
Replace R/C
If R/C operate,
Explain the customer
cause is interference
from light in room.
Check R/C Operating
When turn off light
in room
Check & Replace
Baterry of R/C
Check & Repair
Cable connection
Connector solder
Normal
operating?
Check B+3.5V
On Main B/D
☞A13
Normal
Voltage?
N
N
Check 7.8v on Power B/D
Replace Power B/D or
Replace Main B/D
(Power B/D don’t have problem)
☞A9
Check IR
Output signal
Normal
Signal?
N
Y
Repair/Replace
IR B/D
N
☞A13
Replace
Main B/D
Y
☞A13
Standard Repair Process
11
Y
Close
Copyright © 2023 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.

LG OLED48C3 Series Specifications

General

Screen Size	48 inches
Display Type	OLED
HDR	HDR10, Dolby Vision, HLG
Refresh Rate	120Hz
Smart TV Platform	webOS
HDMI Ports	4 (HDMI 2.1)
Audio	Dolby Atmos
Voice Assistant	Google Assistant, Amazon Alexa
Processor	α9 Gen6 AI Processor 4K
USB Ports	3
Ethernet	Yes
Speaker System	2.2 Channel
Resolution	3840 x 2160 (4K)
Bluetooth	5.0
Wi-Fi	Yes (802.11ac)
Weight	32.6 lbs (without stand)
Dimensions (W x H x D)	42.2 x 24.6 x 1.8 inches (without stand), 42.2 x 26 x 9.3 inches (with stand)
